CLAMP RACK
ASSEMBLY INSTRUCTIONS

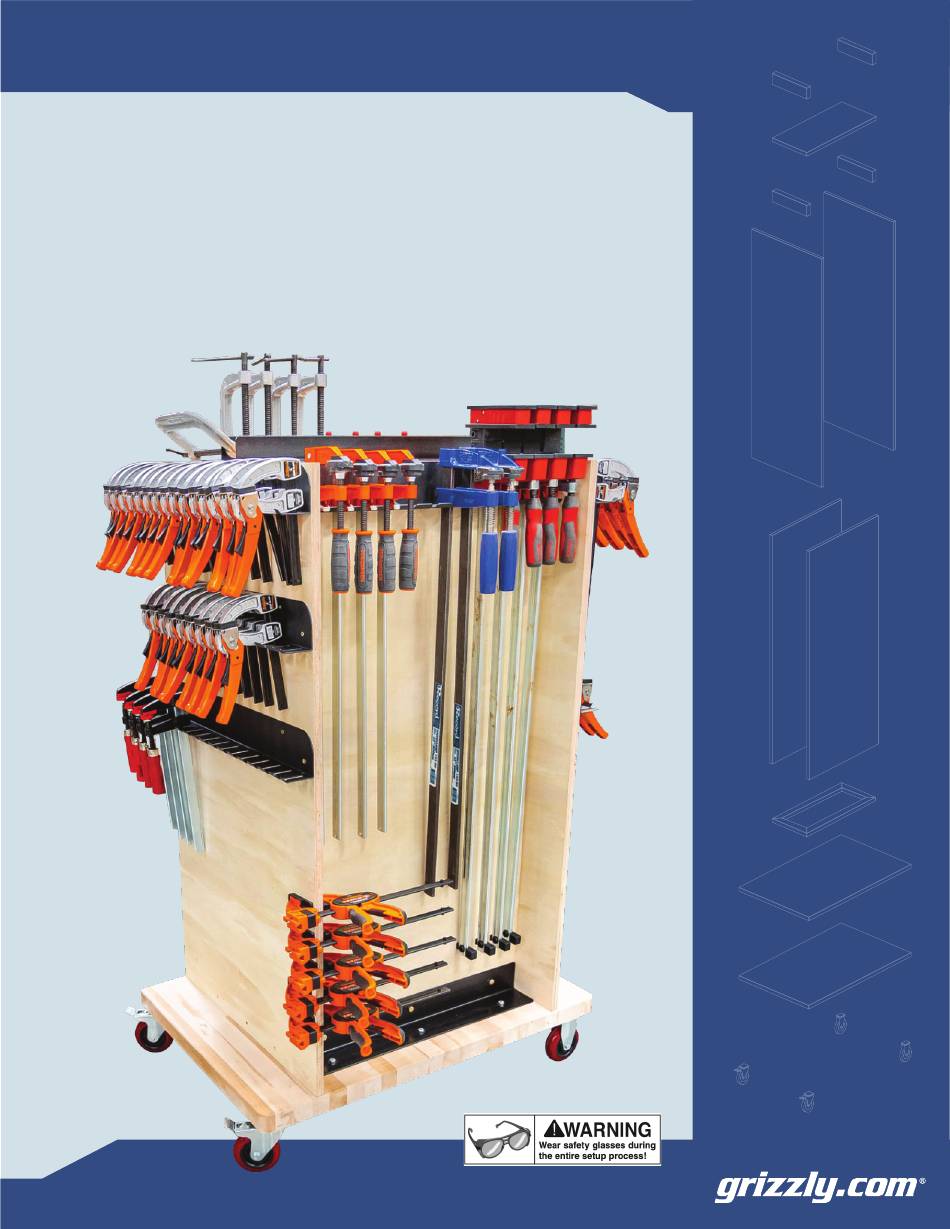

Save time in the shop today with this mobile clamp rack
build from Grizzly Industrial Inc. Designed by CEO &
Founder of Grizzly Industrial, Shiraz Balolia, this rack
ensures you have what you need at an arm's length. It
holds F-style clamps, C-clamps, parallel and tube clamps.
This project breakdown features a full material and cut list,
overview drawing and list of components found
on grizzly.com.
©Copyright Grizzly Industrial, Inc., 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grizzly CLAMP RACK
Summary of Contents for Grizzly CLAMP RACK
- Page 1 CLAMP RACK ASSEMBLY INSTRUCTIONS Save time in the shop today with this mobile clamp rack build from Grizzly Industrial Inc. Designed by CEO & Founder of Grizzly Industrial, Shiraz Balolia, this rack ensures you have what you need at an arm’s length. It holds F-style clamps, C-clamps, parallel and tube clamps.
- Page 2 TOP BRACE SHELF LEDGER SIDE PANEL END PANEL PANEL BASE FRAME BASE (TWO LAYERS OF 1" PLYWOOD SHOWN, MAY BE SUBSITUTED FOR BUTCHER BLOCK OR OTHER SIMILAR MATERIAL) (FRONT END AND SIDE PANELS REMOVED FOR CLARITY) ©Copyright Grizzly Industrial, Inc., 2020...
- Page 3 END PANEL SIDE PANEL SIDE PANEL PLYWOOD " x 48" " x 48" " x 48" 48" x 96" x ¾" END PANEL PLYWOOD " x 48" BASE BASE " x 36" " x 36" ©Copyright Grizzly Industrial, Inc., 2020...
- Page 4 (USED AS-SHOWN IN PHOTO) CASTERS STEELEX D2570 4" FIXED CASTERS (MAX. 2) AVAILABLE ON GRIZZLY.COM STEELEX D2610 4" LOCKING SWIVEL CASTERS (MAX. 2 OR USE 4) AVAILABLE ON GRIZZLY.COM FASTENERS WOOD SCREWS (1¼" & 2") LAG BOLTS (16) AND WASHERS (32) FOR CASTERS HEX BOLTS (12), WASHERS (24) AND LOCKING NUTS (12) FOR STEEL ANGLE ©Copyright Grizzly Industrial, Inc., 2020...
- Page 5 • STACK BASES AND SECURE WITH WOOD SCREWS, AVOIDING CASTER AND PANEL BASE FRAME AREA. • ATTACH CASTERS WITH BOLTS AND WASHERS. • FLIP BASE OVER. PLACE PANEL BASE FRAME IN CENTER OF BASE AND FASTEN WITH WOOD SCREWS. ©Copyright Grizzly Industrial, Inc., 2020...
- Page 6 FROM BOTTOM EDGE TO PROVIDE CLEARANCE FOR 2¼" PANEL BASE FRAME 1½" BASE PANEL BASE FRAME • FIT SIDE PANEL AND STEEL ANGLE TO PANEL BASE FRAME AND FASTEN WITH BOLTS. REPEAT ON OTHER SIDE. ©Copyright Grizzly Industrial, Inc., 2020...
- Page 7 CLAMP RACK BUILD INSTRUCTIONS PAGE 3 of 4 • ATTACH LEDGERS, SHELF, TOP BRACES, AND FASTEN WITH WOOD SCREWS. • ATTACH END PANELS AND FASTEN WITH WOOD SCREWS. ©Copyright Grizzly Industrial, Inc., 2020...
- Page 8 • DRILL HOLES IN 2" X 2" STEEL ANGLES. • ATTACH STEEL ANGLES TO TOP BRACES AND FASTEN WITH WOOD SCREWS. • ATTACH CLAMP RACKS WHERE DESIRED AND FASTEN WITH WOOD SCREWS. Enjoy your new clamp rack! ©Copyright Grizzly Industrial, Inc., 2020...
