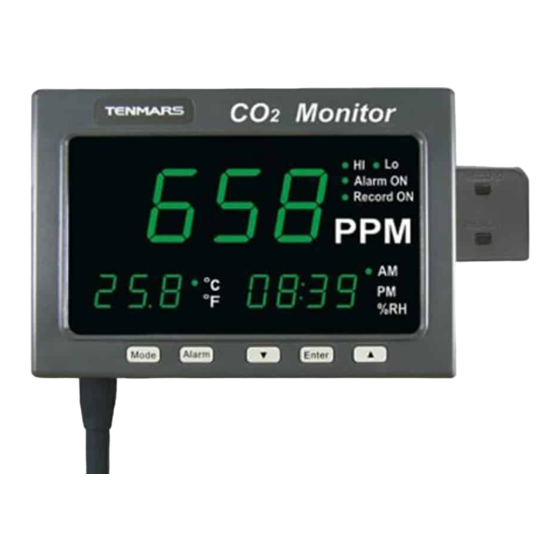

Tenmars TM-186 User Manual

Co2 monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Medidor tipo Pantalla Termohigrómetro y CO2
TN-TM187

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-186 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tenmars TM-186

Summary of Contents for Tenmars TM-186

  • Page 1 Medidor tipo Pantalla Termohigrómetro y CO2 TN-TM187...
  • Page 2 Monitor TM-186/TM-186D TM-187/TM-187D User’s manual HB2TM1860002...

  • Page 3: Table Of Contents

    Contents PREFACE ..........2 CHARACTERISTICS ......2 General Specifications ......2 Electrical Specification ......4 Instrument description ......6 LED description ........7 Terminal description ......8 Disable/Enable Display ......8 Mode Set Mode ........9 Clock and Date setup ......9 Buzzer ON/OFF Setup ......

  • Page 4: Preface

    TM-186/TM-186D TM-187/TM-187D PREFACE Thanks for your purchase. Please, read this user guide in details for the first time you operate this CO Monitor. CHARACTERISTICS  LED display.  It shows both the value of ,temperature ,and humidity.  The selection of °C or °F.
  • Page 5 TM-186/TM-186D TM-187/TM-187D 1604、IEC 6F22 or JIS 006P(Only data logger use).  Resolution : 1ppm, 0.1%RH, 0.1°C， 0.1°F.  Power : AC to DC Adapter. (9~12V/1A).  Backup Power : 9V battery、 NEDA 1604、IEC 6F22 or JIS 006P(Only data logger use).

  • Page 6: Electrical Specification

    TM-186/TM-186D TM-187/TM-187D Electrical Specification Measurement Range:  : 1~9999ppm  Humidity : 5%~95%.  Temp : -20.0°C～70.0°C (-4.0°F～158.0°F).  Accuracy : ±70ppm or ±5% of reading (0~2000ppm) whichever is greater Over 2000ppm ±7%  Temp Accuracy : ±1.0°C/±1.8°F (0.0°C ~40.0°C /32°F ~104°F) ;...
  • Page 7 TM-186/TM-186D TM-187/TM-187D Note1 : If you require more accurate reading, This CO monitor can be adjusted according to your requirement. Note2 : When the AC adaptor is off will start the backup power nonly to provide Data Logger use, the LED won’t be lightened.

  • Page 8: Instrument Description

    TM-186/TM-186D TM-187/TM-187D Instrument description Time / Off Set Set Button Alarm Set Button Temp Unit (℃/℉) Button Time / Humidity Switch Button Data Hold Button LED Display Single Data Recode Button Read Recode Data Button...

  • Page 9: Led Description

    TM-186/TM-186D TM-187/TM-187D LED description 1. CO Reading 2. Temp Reading 3. Time / Humidity Reading 4. HI / LO Alarm symbol 5. Alarm On symbol 6. Data logger On symbol 7. CO unit symbol 8. Temp unit symbol 9. Time unit symbol...

  • Page 10: Terminal Description

    TM-186/TM-186D TM-187/TM-187D Terminal description Power Switch Dry Contact (MAX input DC24V/1A) Calibration Gas Input LO BAT LED Alarm Signal Output (2KHZ@3.3V) Power Jack (DC9V~12V/1A) Disable/Enable Display  to toggle Humidity Display on/off  to toggle Temp Display on/off  to toggle CO2 Display...

  • Page 11: Mode Set Mode

    TM-186/TM-186D TM-187/TM-187D Mode Set Mode  Clock and Date Setting  Buzzer ON/OFF  Temp Offset setting  Humidity Offset Setting  CO2 Offset Setting  Auto Recode Time Setting 10. Clock and Date setup Push “ ” button into time clock and ...

  • Page 12: Buzzer On/Off Setup

    TM-186/TM-186D TM-187/TM-187D  Push “ ” button to store the setup then exit the mode, If not push “ ” button then exit clock and data setup.  This meter clock shows 12 hour time oringinally, if you want to change 24 hours, push”...

  • Page 13: Adj Set Setup

    TM-186/TM-186D TM-187/TM-187D  Push “ ” button to store the setup then exit the mode, If not push “ ” button then exit clock and data setup. 12. ADJ SET Setup  Push “ ” button into ADJ setup LED will display ADJ OFF。If you just reading...
  • Page 14 TM-186/TM-186D TM-187/TM-187D  Push “ ” button into ADJ data set， LED display show ADJ data, “ ”or “ ” button to change the digit.  Temp adj range：-10℃~+10℃  Humidity adj range：10%RH~+10%RH  CO adj range：-200ppm~+200ppm  If you want to store this setup push the “...

  • Page 15: Alarm Set Mode

    TM-186/TM-186D TM-187/TM-187D 13. Alarm Set Mode  Alarm ON/OFF setting  Alarm Gap/Trigger setting  Temp Lo Alarm setting  Temp HI Alarm setting  Temp Gap setting  Humidity Lo Alarm setting  Humidity HI Alarm setting  Humidity Gap setting ...

  • Page 16: Alarm Setup

    TM-186/TM-186D TM-187/TM-187D Alarm Setup  Push “ ” button into alarm setup LED will display ALARM ON. Push “ ” button again LED will display ALARM OFF. Push “ ” button into Regular Alarm  Setting (The user has to manually switch...
  • Page 17 TM-186/TM-186D TM-187/TM-187D alarm settings) which “gAP” will be shown on the LED display.      Push “ ” button to change Regular  Alarm Setting to Alarm Gap Value settings.  Push “ ” button into alarm range setup，LED display show “...
  • Page 18 TM-186/TM-186D TM-187/TM-187D  Push “ ” button into alarm range setup，LED display show “ HI ALARM ON ”, set HI Alarm, Push “ ”or “ ” button to change the digit. Push “ ” button into alarm Gap value ...

  • Page 19: Battery Replacement

    TM-186/TM-186D TM-187/TM-187D wave signal at 2000Hz,terminal blocks were short. 15. Battery replacement WARNING If the LO Battery LED were turn on, please replace the battery immediately  Turn off the instrument.  Open the battery cover and remove the battery.

  • Page 20: Viewing Logged Data

    TM-186/TM-186D TM-187/TM-187D 17. Viewing logged Data Push Memory button into view logged data mode，push Memory button again exit view logged data mode In view logged data mode push“ ” button reading stores time ，push “ ” button to change the temp unit，...

  • Page 21: Software Installation

    TM-186/TM-186D TM-187/TM-187D  If you want to store this setup push “ ” button, If not push “ ” button then exit auto stores data time setup. 19. Software installation  Please insert the CD into the PC.  Please select the USB driver that will be installed, such as E:\ PL-2303 Driver Installer.exe (windows 2000...
  • Page 22 TM-186/TM-186D TM-187/TM-187D  Select the SETUP.EXE i.e., E:\CO Monitor\SETUP.EXE and installs the desktop icon  Tack out the CD from the PC after completed the installation of the desktop icon.
  • Page 23 TM-186/TM-186D TM-187/TM-187D  Use the USB cable to connect the meter and computer according to the drawing.  Select the desktop icon and click twice on left key of the mouse to run the procedure.

  • Page 24: Maintenance

    TM-186/TM-186D TM-187/TM-187D 20. Maintenance  Do not use the meter in an environment with severe change; do not store the unit in an environment with high temperature, high humidity, and high vibration  Take the battery off if the meter has not been used for a long period of time ...
  • Page 25 TM-186/TM-186D TM-187/TM-187D  The thermocouple and humidity sensor will start aging under the influence of oxidation, reduction, corrosion, pollution, vaporization, diffusion or other metallurgy. The aging process will affect its precision seriously.  Cleaning and inspection of temperature probe: The smoke, coal, dust, grease attached...

  • Page 26: External Dc Power

    TM-186/TM-186D TM-187/TM-187D cleaned periodically. Blow off the dust with mild compressed air instead of water or alcohol. The aluminum plate inside the humidity sensor should be replaced upon the occurrence of corrosion. 21. External DC Power  External AC to DC adapter: Voltage...

  • Page 27: End Of Life

    TM-186/TM-186D TM-187/TM-187D 22. End of life Caution: this symbol indicates that equipment and its accessories shall be subject to a separ. 3ate collection and correct disposal...
  • Page 29 TENMARS ELECTRONICS CO., LTD. 6F, NO.586 Ruiguang Rd, Neihu Dist. Taipei City, Taiwan E-mail: service@tenmars.com http://www.tenmars.com...

This manual is also suitable for:

Tm-187Tm-187dTm-186d
