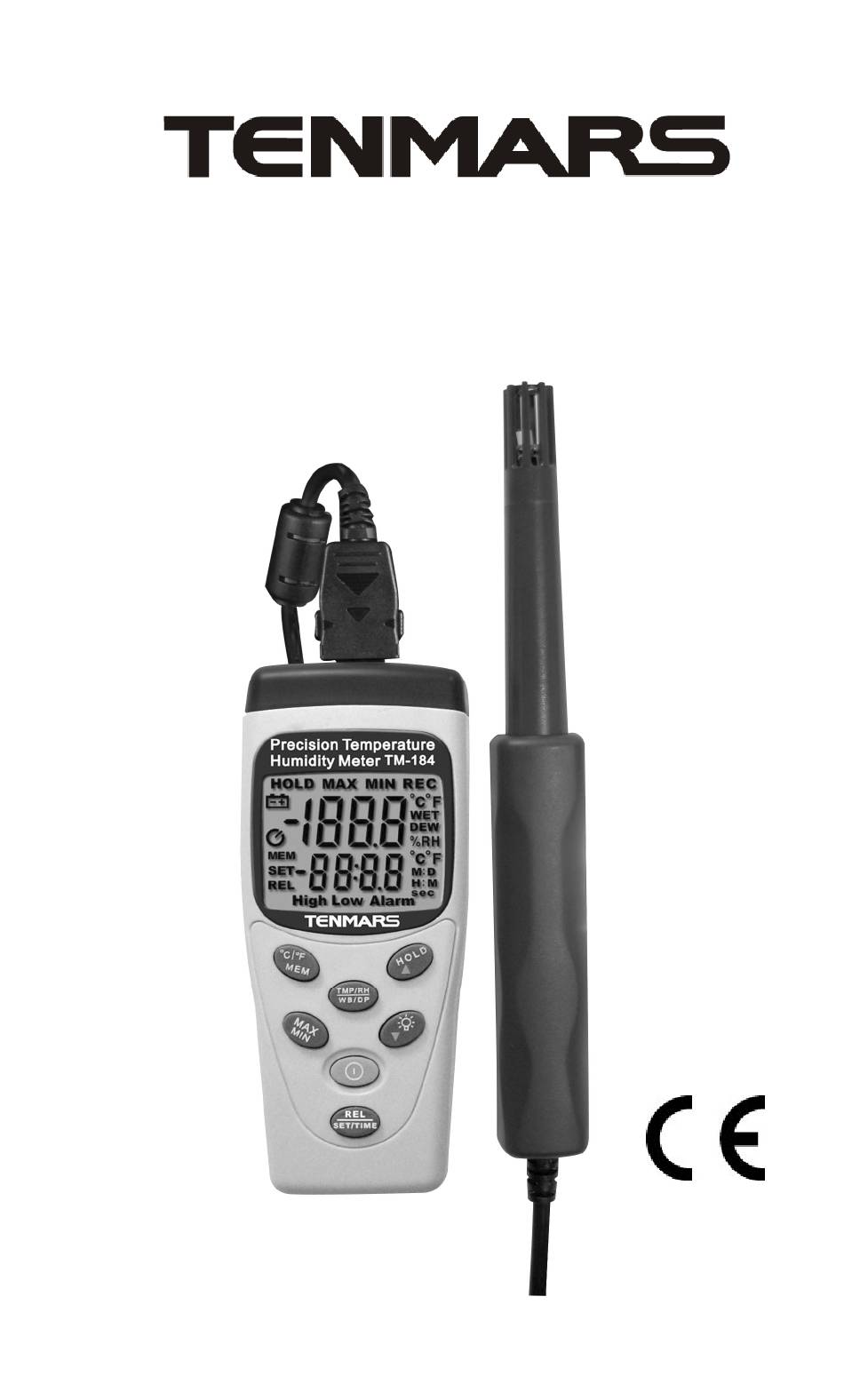

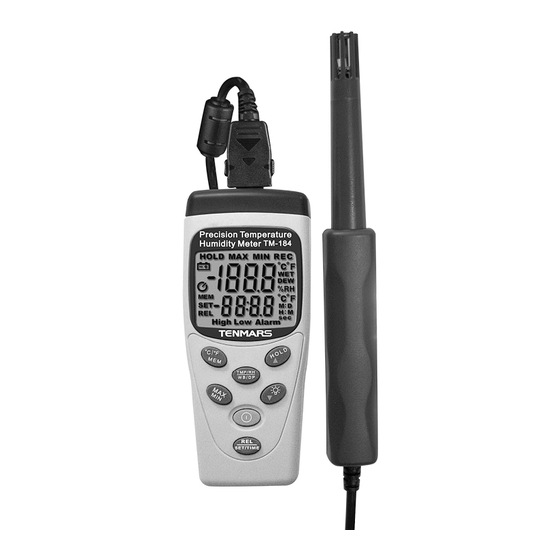

  • Page 1 Temperature Humidity Meter TM-182 / TM-184 User’s Manual HB2TM1840003 TENMARS ELECTRONICS CO., LTD...

  • Page 3: Table Of Contents

    Table of Contents PREFACE ..........5 CHARACTERISTICS ......5 GENERAL SPECIFICATIONS ....6 ELECTRICAL SPECIFICATION....8 INSTRUMENT DESCRIPTION ....9 LCD DESCRIPTION ......10 MEASUREMENT PROCEDURES..11 MAXIMUM/MINIMUM ......12 AUTO POWER OFF ......13 RELATIVE DEDUCTION VALUE(REL). 14 SETUP MODE ........14 ENABLE ALARM SETUP......
  • Page 4 AUTO POWER OFF TIME SETUP ..22 SINGLE DATA RECORD ...... 23 VIEWING DATA RECORDS....23 BATTERY REPLACEMENT....24 EXTERNAL DC POWER ...... 25 SAFETY PRECAUTION......25 COMPUTER GRADE......26 SOFTWARE INSTALLATION....26 MAINTENANCE........29 END OF LIFE........31...

  • Page 5: Preface

    TM-182/TM-184 PREFACE Thank you for your patronage, please read the operating instructions before you use this meter, so you will operate the meter correctly. WARNING Without following the operating instructions might damage the instrument or its component CHARACTERISTICS  LCD display.

  • Page 6: General Specifications

    TM-182/TM-184 WARNING Use this meter in high humidity environment, please put the meter in warm and low humidity place for 24 hours after finishing measurement. WARNING In order to ensure the accuracy of this meter, We strongly recommend send the meter back to original factory for maintenance every year.
  • Page 7 TM-182/TM-184  Data logging capacity with Memory Size : 30000 data sets.  Size :130 x56 x38 mm（LxWxH）.  Weight :250g.  Operating Temperature and Humidity : -20°C ~ +60°C,<95% RH.(Non-condensing).  Storage Temperature and Humidity : -10 to 60°C, <70% RH. (Non-condensing).

  • Page 8: Electrical Specification

    Electrical Specification Measurement Range :  Humidity :1%~99%.  Temprature : -20.0°C～60.0°C/-4.0°F～140.0°F.  Temperature Accuracy (TM-182) : ±0.8°C/±1.5°F (0.0°C ~40.0°C /32°F~104°F) ;other ±2.0°C /3.6°F.  Temperature Accuracy (TM-184): ±0.5°C/±1.0°F (0.0°C ~40.0°C /32°F~104°F) ;other ±2.0°C /3.6°F.  Humidity Accuracy (TM-182) : ±3.0%RH (20%RH~80%RH).at 25°C...

  • Page 9: Instrument Description

    TM-182/TM-184 Instrument description Sensor Probe input(-) 3. Power Button Backlight/Down Button Hold/Up Button REL/SET/Time Button MAX/Min/MEM TMP/RH/WB/DP Button Button REC/℃/℉ Button 10. External power DC 9V 11. USB interface 12. Sensor Probe input(+) 13. Sensor Probe...

  • Page 10: Lcd Description

    TM-182/TM-184 LCD description Primary Display Secondary Display Temperature unit Temperature unit (℃) (℉) WET-BULB DEW-POINT temperature temperature Humidity unit Time unit (month: day) Time unit (hour: 10. Time unit minute) (second) 11. Low battery 12. Auto power off symbol symbol 13.

  • Page 11: Measurement Procedures

    TM-182/TM-184 Measurement Procedures  Press “ ” button to turn on the meter, press “ ” button again to turn off the meter.  Hold “ ” button and press “ ” button to change temperature unit.(Deform temperature unit ℃) ...

  • Page 12: Maximum/Minimum

    TM-182/TM-184 Maximum/Minimum  Press “ ” button to enter MAX/MIN record mode and the LCD will display Maximum temperature data, and start to record maximum and minimum data, LCD secondary display shows that enter MAX/MIN record mode the time elapsed,...

  • Page 13: Auto Power Off

    TM-182/TM-184 Auto Power Off  If you want disable auto power off, please hold “ ” button and press “ ” button, the auto power off symbol will not display on the LCD.  If you want enable auto power off please hold “...

  • Page 14: Relative Deduction Value(Rel)

    TM-182/TM-184 10. Relative Deduction Value(REL)  Press “ ” button to save the current measured result, and then the current measured result will be subtracted by the next measured result, and the difference from the subtraction will appear on the LCD.

  • Page 15: Enable Alarm Setup

    TM-182/TM-184 Note1: you can set up 7 different functions in. setup mode Enable or disable alarm Low alarm temperature setup High alarm temperature setup Low alarm humidity setup High alarm humidity setup Clock setup Auto recording time setup Auto power off time setup 12.

  • Page 16: Low Alarm Temperature Setup

    TM-182/TM-184  When alarm sound action you can push “ ” button to stop alarm sound and this time to stop alarm mode ,this time meter auto set alarm data to High Temperature(Humidity) 60.0℃;99.9%RH,Low Alarm Temperature(Humidity) –20.0℃;0.1%RH. 13. Low Alarm Temperature Setup ...

  • Page 17: High Alarm Temperature Setup

    TM-182/TM-184  Press “ ” button to save the setting. 14. High Alarm Temperature Setup  Hold “ ” button and press “ ” button first.  And then press “ ” button twice to enable High Alarm Temperature setup.

  • Page 18: Low Alarm Humidity Setup

    TM-182/TM-184  Push “ ” button to save the setting 15. Low Alarm Humidity Setup  Hold “ ” button and press “ ” button first.  And then press “ ” button three times to enable Low Alarm Humidity setup.

  • Page 19: High Alarm Humidity Setup

    TM-182/TM-184 16. High Alarm Humidity Setup  Hold “ ” button and press “ ” button first.  And then press “ ” button four times to enable High Alarm Humidity setup.  If you want to change the range for the high alarm humidity function, please press “...

  • Page 20: Clock Setup

    TM-182/TM-184 17. Clock Setup  Hold “ ” button and press “ ” button first.  And then press “ ” button five times to enable Clock Setup.  This meter clock is 24 hour time setting.  Use “...

  • Page 21: Auto Recording Time Setup

    TM-182/TM-184 18. Auto Recording Time Setup  Hold “ ” button and press “ ” button first.  And then press “ ” button 6 times to enable Auto Recording Time Setup.  Use “ ” or “ ” to select option to adjust.

  • Page 22: Auto Power Off Time Setup

    TM-182/TM-184 Auto Power off time setup  Hold “ ” button and press “ ” button first.  And then press “ ” button seven times to enable Auto Power off time Setup.  Use “ ” or “ ” button to change digit.

  • Page 23: Single Data Record

    TM-182/TM-184 20. Single Data Record  Press“ ”button, the meter will save the current measured result, and REC will also appear on the LCD. 21. Viewing Data Records  Hold“ ”button and press“ ”button to view the saved data records.

  • Page 24: Battery Replacement

    TM-182/TM-184 22. Battery Replacement WARNING If the LCD display “ ” symbol, please replace the battery immediately  Turn off the instrument.  Open the battery cover and remove the battery.  Replace with four-9V NEDA 1604, IEC 6F22 or JIS 006P size battery.

  • Page 25: External Dc Power

    TM-182/TM-184 23. External DC Power  External AC to DC adapter: Voltage 9VDC(8~14VDCMax)  Socket：pin Positive, Ground Casing External  Diameter 5.5mm internal Diameter 2.1 mm Safety Precaution  For cleaning the instrument, use a soft dry cloth. Never use a wet cloth, solvents or water, etc.

  • Page 26: Computer Grade

    TM-182/TM-184 25. Computer Grade  CPU :Pentium Ⅲ 1000MHZ.  RAM :SDRAM 256MB.  Hard Disk :200MB.  OS :Windows 2000, Windows XP.  Display: 800×600 256 cooler. 26. Software installation  Please insert the CD into the PC to install the software first.
  • Page 27 TM-182/TM-184  Select the SETUP.EXE i.e., E:\ SETUP.EXE and installs the desktop icon...
  • Page 28 TM-182/TM-184  Tack out the CD from PC after completed the installation.  Use the USB cable to connect the meter and the computer according to the drawing.

  • Page 29: Maintenance

    TM-182/TM-184  Select the desktop icon TM-184 and click twice on left key of the mouse to run the procedure. 27. Maintenance  Do not use the meter in an environment with severe change; do not store the unit in an environment with high temperature, high humidity, and high vibration ...
  • Page 30 TM-182/TM-184 oxidation, reduction, corrosion, pollution, vaporization, diffusion or other metallurgy. The aging process will affect its precision seriously.  Cleaning and inspection of temperature probe:  The smoke, coal, dust, grease attached on the protective tube of temperature probe will slow down the heat conduction of the thermocouple and cause measuring error.

  • Page 31: End Of Life

    TM-182/TM-184 28. End of life Caution This symbol indicates that equipment and its accessories should be subject to a separate collection and correct disposal.
  • Page 32 Solar power meter, Radiation meter, Clamp meter, Multimeter ,Phase Rotation test, Digital Insulation teste Our products of high quality are selling well all over the world TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail :service@tenmars.com http ://www.tenmars.com...
