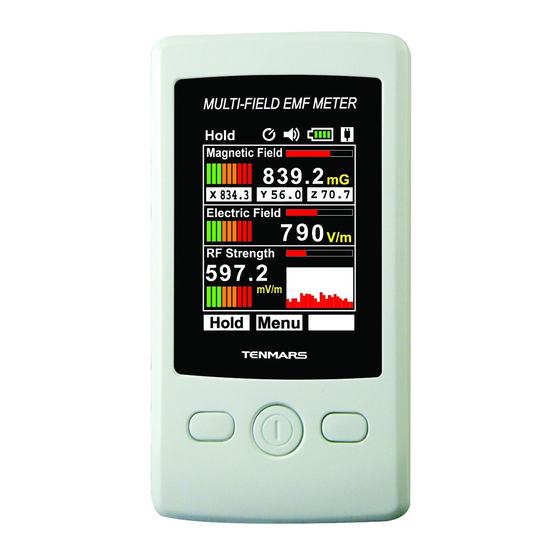

Tenmars TM-190 User Manual

Tenmars TM-190 User Manual

Multi-field emf meter
Hide thumbs Also See for TM-190:

Advertisement

Quick Links

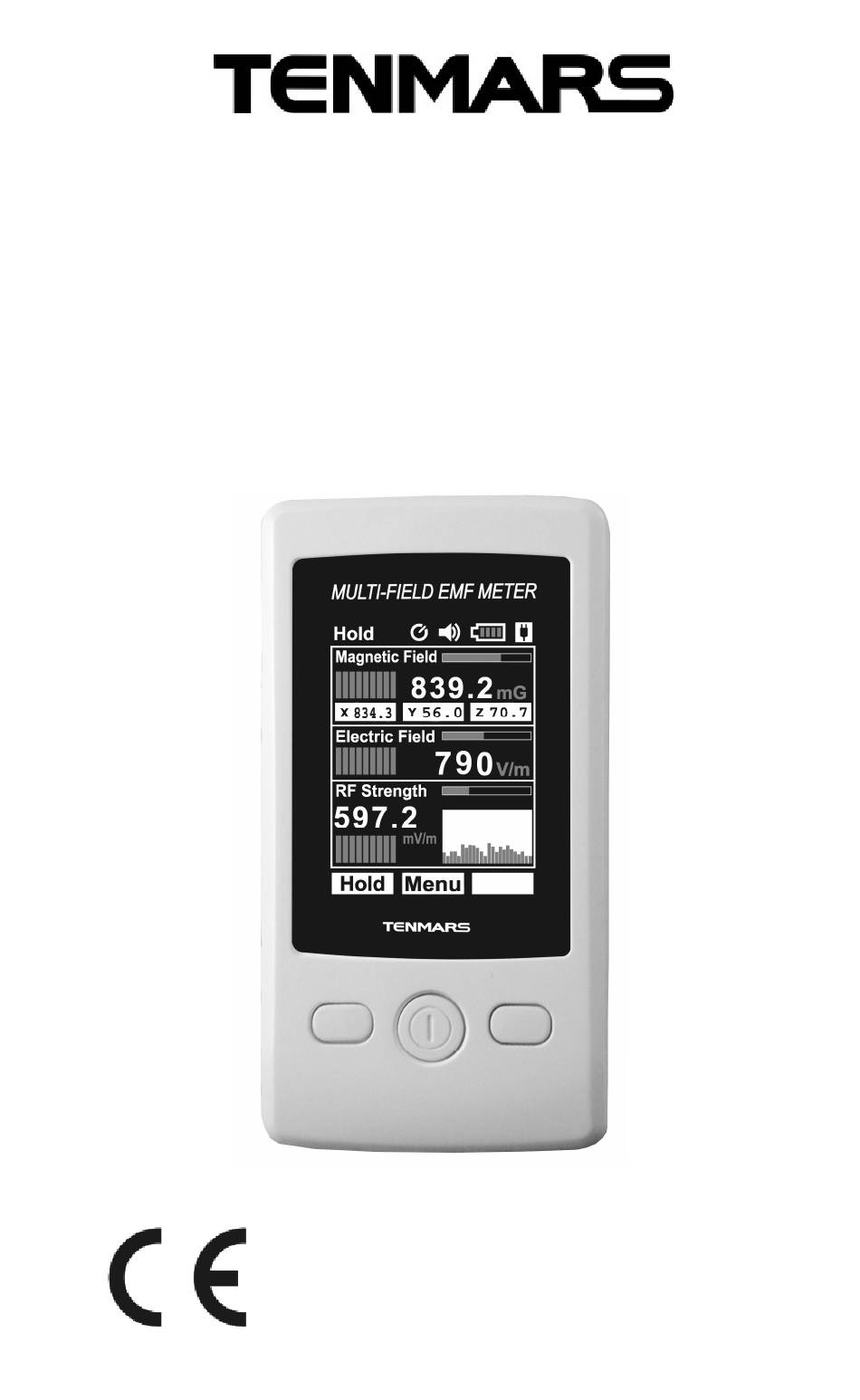

MULTI-FIELD EMF METER
TM-190
User's Manual
HB2TM1900003
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-190 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tenmars TM-190

  • Page 1 MULTI-FIELD EMF METER TM-190 User’s Manual HB2TM1900003...
  • Page 2: Table Of Contents

    Meun Features..........3 Identifying Parts ........5 TFT description ........6 Measurement Procedures ....7 POWER ON/OFF B : ....7 UTTON : ........7 EADING (HOLD):....... 7 ATA HOLD :........8 ETTINGS 4.4.1. Option Buttons:......9 4.4.2. Screen Brightness options: ..9 4.4.3. Magnetic Unit: ......9 4.4.4.
  • Page 3: Features

    TM-190 Features  Data hold (HOLD)  Low battery indication: HIGH  Over load display “OL”.  External USB Power Supply: ” ”  Brightness options: low-Middle-high  Magnetic unit:Gauss(mG) or. Tesla(uT)  RF Strength Unit: (uW/m² ~mW/m²) (μW/cm²) (m V/m ~V/m) (mA/m) (dBm).
  • Page 4 TM-190 English  Electric field Measurement Precautions: Please perform tests according to the indicated direction . Please hold the meter at the bottom of the display, as shown in the figure below: Fig. 1 Electric Field measurement: Magn etic Fields...
  • Page 5: Identifying Parts

    TM-190 Identifying Parts Fig. 2 Instrument description: 2.4” 240*320 resolution color TFT. Power and Menu button Hold and Enter button Select and Down button Battery cover...
  • Page 6: Tft Description

    TM-190 TFT description Data Hold indicator. Auto power off indicator. Buzzer indicator. Battery indicator. Tesla(uT) or Gauss(mG) display. Electric Field (V/m) display. RF strength history histogram display. RF strength digital (mV/m/ W/m²/μW/cm²/dB) display. Menu key indication 10 Hold/ Enter key indicator...
  • Page 7: Measurement Procedures

    TM-190 Measurement Procedures 4.1 POWER ON/OFF Button:  Press button to power on. LCD display measurement screen.(see Fig. 3)  Press button for 3 seconds to power off LCD display. 4.2 Reading Data: Direct the front section of the meter at the desired electromagnetic field for measurements.
  • Page 8: Menu Settings

    TM-190 the meter. 4.4 Menu Settings: On the measurement screen: Press the middle button to enter the main menu, where 7 options can be selected, namely, Brightness, Magnetic unit, RF Strength Unit, Language, Power off, Sound, and Information. Press the right button to make the blue brick scroll down.
  • Page 9: Option Buttons

    TM-190 4.4.1. Option Buttons: Press the right button to scroll to and check the next check box. Press the right button repeatedly to cycle through the check boxes. Press the left button to exit to the main menu. Press the middle button to return to the previous setting menu.
  • Page 10: Rf Strength Unit

    TM-190 Default: mG 4.4.4. RF Strength Unit: Following the operation procedures in 4.4, the RF Strength Unit setting comprises the following five options, namely, µW/m²~mW/m², µW/cm², mV/m~V/m, mA/m, and dBm (files are automatically skipped within the selected unit). Under the sub-directory, use the option buttons to select and confirm the desired selection.
  • Page 11: Language

    TM-190 4.4.5. Language: Following the operation procedures in 4.4, the Language setting comprises the following five options, namely, English, Traditional Chinese, Simplified Chinese, Japanese, and Español (Spanish). Under the sub-directory, use the option buttons to select and confirm the desired selection.
  • Page 12: Power Off Time

    TM-190 4.4.6. Power Off Time: Following the operation procedures in 4.4, the Power Off setting comprises the following seven options, namely, NO, 1, 3, 5, 10, 15, and 30 (min). Under the sub-directory, use the option buttons to select and confirm the desired selection.
  • Page 13: Sound On/Off

    TM-190 4.4.7. Sound on/off: Following the operation procedures in 4.4, the Sound setting comprises the following two options, namely, On and Off. Press the right button to scroll to and check the next check box. Press the right button to cycle thought he options.
  • Page 14: Keys Sound

    TM-190 4.4.9. Keys Sound: Following the selection of the Keys option in the Keys/Alarm Sound settings menu, the Keys setting comprises 3 options, namely 1, 2, and 3. Press the right button to scroll to and check the next check box. Press the right button repeatedly to cycle through the options.
  • Page 15: Information

    TM-190 Default: 3 4.4.11. Information: Following the operation procedures in 4.4, select the Information option to display the software version (V1.0). Press the left button to exit to the main menu. Press the middle button to return to the settings...
  • Page 16: Specifications

    TM-190 Specifications 5.1 Sensor type: LF Magnetic Fields (MF)  The meter is equipped with three individual aerial sensors to measure EMFs. The overload indications can be displayed simultaneously on three axes (X, Y, Z):  Range: 20/200/2000mG, 2/20/200µT. ...
  • Page 17: Sensor Type: Rf Strength

    TM-190 5.3 Sensor type: RF Strength  Frequency range:50MHz to 3.5GHz.  Accuracy: ± 2dB at 2.45GHz  Measurement units: µW/m²~mW/m²; μW/cm²; mV/m~V/m, mA/m, and dBm  Specified measurement range: (0. 2µW/m² to 554.6mW/m²) (0.02µW/cm²to55.4µW/cm²)(36.1mV/mto14.46V/ m) (0.02mA/m to 38.35mA/m)( -51dB to 16dBm) ...
  • Page 18: Battery Replacement

    TM-190 Battery replacement WARNING If the symbol “ ” appears on the screen, please replace battery immediately  Turn off the instrument. Open the battery covers and remove the  battery. Take three new 1.5VAAA alkaline batteries,  and install the batteries according to the polarity.
  • Page 19: Safety And Maintenance Standards

    TM-190 Safety and maintenance standards Do not operate around combustible gases or  in damp environment. Operating altitude: below 2,000m.  Operating environment: for indoor use, expose  to pollution level II. This is a precision device. During use or ...
  • Page 20 UV Light meter, RF meter, Hot wire Anemometer, CO meter, Anemometer, Lan cable tester, CO meter, Solar power meter, Radiation meter, Clamp meter, Multimeter, Phase Rotation test, Digital Insulation teste TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN.
