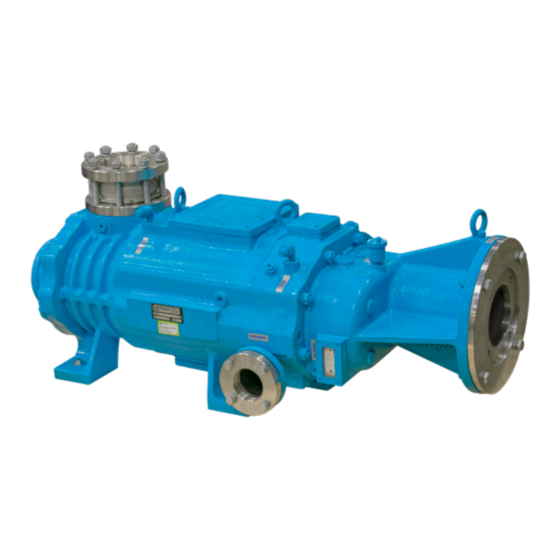

- Page 1 Manual 1861 Rev C p/n 001861 0000 WARNING: Do Not Operate Before Reading Manual SDV Series OPERATOR’S MANUAL Models SDV-120 SDV-320 SDV-800 SDV-200 SDV-430 SDV-1500 SDV-2700 Copyright © 2019 Tuthill Springfield All rights reserved. Product information and specifications subject to change. Tuthill Springfield tuthillvacuumblower.com 800.825.6937...
- Page 2 Springfield, Missouri, USA. We bring 100+ years of engineering experience and solid, hands-on care to help customers keep their processes running. Your satisfaction is important to us so please take time to provide your Tuthill sales representative with performance feedback. We love to hear from our customers! Tuthill is a family owned business that was started by James B.
-
Page 3: Table Of Contents
Table of Contents Table of Contents Introduction .................. 1 Principle of Operation ................1 Construction ..................2 Timing Gear ................2 Bearings ..................2 Oil Level Gauge ................2 Materials of Construction ..............3 Identification ..................4 Specifications (SDV-120 to SDV-430) ............ 5 Specifications (SDV-800 to SDV-2700) .......... - Page 4 Table of Contents Piping ....................13 Main Piping Assembly .............. 13 Cooling Water Piping Assembly ..........14 Air Vent Cap ..................14 Purges ..................15 Sequence of Operations ..............15 Start/Stop (Cleaning) Purges .............. 15 Seal Purge ................... 16 Cooling Purge ..................17 Post-Process Dry Operation ...............
- Page 5 Table of Contents Troubleshooting ................. 25 Vacuum System Checklist ............27 Exploded Views and Parts List ..........28 SDV-120-200 Exploded View Drawing ..........28 SDV-120-200 Parts List ............... 29 SDV-120 Exploded View Drawing ............30 SDV-120 Parts List ................31 SDV-200 Exploded View Drawing ............
- Page 6 Table of Contents Manual 1861 Rev C p/n 001861 0000...
-
Page 7: Introduction
INTRODUCTION PRINCIPLE OF OPERATION CONGRATULATIONS on the purchase of a new SDV Dry Vacuum Pump from Tuthill Vacuum & Blower Systems. Please examine the pump for The SDV Dry Screw Vacuum Pump is a single- shipping damage, and if any damage is found, stage, dry running, non-contact, variable-pitch report it immediately to the carrier. -
Page 8: Construction
Introduction CONSTRUCTION If the pump were operated with low oil level, the gears and bearings would seize by lack of lubrications. If the oil is overfilled, the oil Timing Gear temperature would get elevated and cause high gear noise and possibly affect the integrity of other The timing gear is an important part of the screw parts in the DE (Drive End) casing. -
Page 9: Materials Of Construction
Introduction MATERIALS OF CONSTRUCTION Ductile iron (A536 Grade 60-40-18) Housing Internal process areas include PEEK corrosion protective coating. Screw Cast iron (A48 Class No. 30 with PEEK corrosion protective coating.) Shaft Cr-Mo alloy steel (AISI-SAE 4140) Lip seals PTFE and carbon mix (Turcon) in stainless-steel body Ceramic-coated, stainless-steel sleeve with an O-ring for serial numbers up to: SDV-120 KIT KLRZ SN <406>548<853: 086120-0KIT SDV-200 KIT KALREZ 263<SN<376: 086200-0KIT... -
Page 10: Identification
The housing serial number is located on the left side of the pump body (opposite side of the Tuthill serial number plate) and the number is normally stamped into the housing casting and will be a 3 or four digit number. -
Page 11: Specifications (Sdv-120 To Sdv-430)
Introduction SPECIFICATIONS SDV-120 SDV-200 SDV-320 SDV-430 MODEL 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 59 CFM 71 CFM 88 CFM 106 CFM 157 CFM 188 CFM 211 CFM 253 CFM Nominal displacement (100 (120 (150... -
Page 12: Specifications (Sdv-800 To Sdv-2700)
Introduction SPECIFICATIONS SDV-800 SDV-1500 SDV-2700 MODEL 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz Nominal displacement 368 CFM 441 CFM 765 CFM 882 CFM 1,324 CFM 1,588 CFM capacity (625 m³/hr) (750 m³/hr) (1,300 m³/hr) (1,500 m³/hr) (2,250 m³/hr) (2,700 m³/hr) Ultimate pressure... -
Page 13: Safety
SAFETY GRAPHIC CONVENTIONS USED IN OTE: Indicates a procedure, practice, or condition that should be followed in THIS MANUAL order for the equipment to function in the manner intended. The following hazard levels are referenced within this manual: SAFETY INSTRUCTION TAGS DANGER WARNING Indicates a hazardous situation that, if not... -
Page 14: Safety Precautions For Dry Vacuum Pumps
Safety SAFETY PRECAUTIONS FOR DRY • Do not restrict the pump discharge in any way or place valves in the discharge line. The vacuum VACUUM PUMPS pump is a compressor and will generate high pressures without stalling the motor when operated at low suction pressures. -
Page 15: Piping
PIPING The vacuum pump casing and the front end plate have an integrated cooling water jacket. The SDV series pumps can be configured with two different types of cooling systems: Fresh Water Cooling and Circulating Cooling. FRESH WATER COOLING The fresh water cooling system consists of a “once-through”... - Page 16 Piping PROCESS DISCHARGE PROCESS INLET SILENCER COOLING WATER SUPPLY MOTOR SILENCER DRAIN COOLING WATER DISCHARGE COOLING WATER DRAIN Figure 3-1 – Typical Process and Inlet Discharge for SDV-120 Models with Once-Through Cooling On SDV-200 and larger-sized pumps, the cooling water circuit is extended to the process exhaust silencer (see Figure 3-2).
-
Page 17: Air-Water Radiator
Piping AIR-WATER RADIATOR This system is an air-cooled version with a cooling water total recovery system. A centrifugal pump circulates the cooling water from the SDV vacuum pump to a radiator-fan unit. To monitor the adequacy of the cooling water flow and the cooling water discharge temperature, install a flow indicator, flow switch on the cooling water supply line and a temperature gauge (or switch) at the cooling water discharge line. -
Page 18: Connections Diagram
Piping For SDV-200 and larger-sized pumps, the cooling water circuit is extended to the process exhaust silencer (see Figure 3-4). PROCESS DISCHARGE PROCESS INLET MOTOR SILENCER MOTOR COOLING WATER MOTOR DRAIN SILENCER DRAIN COOLING WATER DRAIN Figure 3-4 – Typical Process and Inlet Discharge for All Other SDV Models with Fan-Cooled, Re-circulated Cooling Water System Caption Needed Here. -
Page 19: Installation
OTE: Tuthill recommends regularly checking the condition of the strainer. Manual 1861 Rev C p/n 001861 0000... -
Page 20: Cooling Water Piping Assembly
AIR VENT CAP OTE: Tuthill recommends installing a process inlet isolation valve regardless of whether The air vent cap (see Figure 4-1) should be a process inlet check valve is installed. -
Page 21: Purges
OTE: Ask your Tuthill channel partner about from the interior of the pump before or after pump part # 820042 Purge Panel. operation. Perform the Start/Stop (Cleaning) purge... -
Page 22: Seal Purge
(3 kg/cm purge connection nozzles on the Front End Cover. OTE: Tuthill does not recommend NDE seal Connect the Non Drive End (NDE) seal purge to purge unless it is absolutely required. the two purge connection nozzles on the Rear End Providing NDE seal purge slightly Plate (REP). -
Page 23: Cooling Purge
Purges COOLING PURGE NOTES: • Cooling purge is not required for SDV-120, A cooling purge is done to cool the inside of the SDV-200, SDV-320, SDV-430, and SDV-800 for casing and the screws. The purge cools the pump typical processes manufactured after Jan. 2015. &... -
Page 24: Steam Flushing
Purges STEAM FLUSHING If there is a substantial amount of the residual process material build-up within the pump, clean out the pump interior. Steam flushing is one way to clean the residual process material build-up from the pump interior. When there is enough residual process material build-up, make sure that the pump is not forced to rotate by the motor. -
Page 25: Operation
OPERATION PRESTART CHECKS STARTING THE PUMP 1. Ensure the pump internal and process piping 1. Ensure the direction of the pump rotation is are thoroughly cleaned and free from weld correct: CW (Clockwise) direction, looking slags, metal chips, particulates, rust, dust, etc. from the motor. -
Page 26: Stopping The Pump
Operation The following pump operating conditions should be All other pumps should undergo a 10 – 20 within the limits shown in Specifications on page minute post-process drying operation before the motor power is disconnected. See Post- Process Dry Operation on page 14 for •... -
Page 27: Maintenance And Inspection
OVERHEATING ABNORMALITIES During pump operation, the temperature will rise in Tuthill recommends daily inspection of the pump as a homogeneous matter as a result of compression preventative maintenance. Most pump abnormalities work done on the process gas or vapor. However,... -
Page 28: Inspection Schedule
Maintenance and Inspection INSPECTION SCHEDULE Monthly Inspection 1. Check the oil color: If the oil color is too dark, Daily Inspection replace the oil. 1. Check the electrical current load on the motor 2. Check the oil level: If the oil level drops in a (Amps): An increase in the motor current load short period of time, check the mechanical indicates abnormality of the pump operation. -
Page 29: Maintenance And Inspection Schedule
Maintenance and Inspection MAINTENANCE AND INSPECTION SCHEDULE ITEM CHECK POINT DAILY MONTHLY QUARTERLY 6 MOS. YEARLY Motor amperage Any change? Amperage as specified? Rotation Is the rotation smooth and direction correct? Suction and discharge pressure Is the pressure as specified? Noise and vibration Any abnormal sound or vibration? Temperatures... -
Page 30: Screw Clearance
SCREW CLEARANCE MODEL “D” CLEARANCES “E” CLEARANCES SDV-120 0.0039 – 0.0047 in. (0.10 – 0.12 mm) 0.0016 – 0.0024 in. (0.01 – 0.06 mm) SDV-200 0.0039 – 0.0047 in. (0.10 – 0.12 mm) 0.0020 – 0.0028 in. (0.05 – 0.07 mm) SDV-320 0.0039 –... -
Page 31: Troubleshooting
TROUBLESHOOTING Although Tuthill Vacuum & Blower Systems pumps are well designed and manufactured, problems may occur due to normal wear and the need for readjustment. The following chart lists symptoms that may occur along with probable causes and remedies. SYMPTOM... - Page 32 Add oil to the correct level. Table 9-1– Common Symptoms and Remedies OTE: If problems are not resolved by the solutions in Table 9-1, please contact Tuthill with the following information: • Model number, serial number, and application • Information on piping (valves,...
-
Page 33: Vacuum System Checklist
VACUUM SYSTEM CHECKLIST CHECKPOINT CHECK Opening the cooling water supply valve. Is the flow correct? Close the vacuum suction line. Open the discharge line. Before operation Check the lubricant color and level. Is it acceptable? Check belt tension (for V-belt type only). Run the vacuum pump according to Start/Stop (Cleaning) Purges on page 12 before opening the suction line. -
Page 34: Exploded Views And Parts List
EXPLODED VIEWS AND PARTS LISTS SDV-120-200 EXPLODED VIEW DRAWING 68 36 For serial numbers up to: • SDV-120: S/N 405 • SDV-200: S/N 262 Manual 1861 Rev C p/n 001861 0000... -
Page 35: Sdv-120-200 Parts List
Exploded Views and Parts Lists SDV-120-200 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Mechanical Seal Stator (B) Front End Plate Mechanical Seal Rotor (B) Rear End Plate Seal Adapter Housing Cover Front End Cover Blind Plate (A) Driver Shaft (A) Blind Plate (B) Driven Shaft (B) Blind Plate (C) -
Page 36: Sdv-120 Exploded View Drawing
Exploded Views and Parts Lists SDV-120 EXPLODED VIEW DRAWING For serial numbers from: • SDV-120: S/N 406 Manual 1861 Rev C p/n 001861 0000... -
Page 37: Sdv-120 Parts List
Exploded Views and Parts Lists SDV-120 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Mech. Seal Ass'y (B) Front End Plate Seal Adaptor Housing Cover Rear End Plate Push Sleeve Front End Cover (Industrial) Socket Bolt(Sight glass) Grease Cover Socket Bolt (B/P, A) Screw shaft (R, L) Socket Bolt (B/P, B,C) -
Page 38: Sdv-200 Exploded View Drawing
Exploded Views and Parts Lists SDV-200 EXPLODED VIEW DRAWING For serial numbers from: • SDV-200: S/N 263 Manual 1861 Rev C p/n 001861 0000... -
Page 39: Sdv-200 Parts List
Exploded Views and Parts Lists SDV-200 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Push sleeve Front End Plate Plate Guide (A) Rear End Plate Plate Guide (B) Front End Cover Plate Guide (C) Grease Cover Socket Bolt (FEP, Casing) Screw &... -
Page 40: Sdv-320 Exploded View Drawing (Set 1)
Exploded Views and Parts Lists SDV-320 EXPLODED VIEW DRAWING For serial numbers from: • SDV-320: S/N 403 Manual 1861 Rev C p/n 001861 0000... -
Page 41: Sdv-320 Parts List
Exploded Views and Parts Lists SDV-320 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Seal Adapter Housing Front End Plate Mechanical Seal Stator (B) Rear End Plate Mechanical Seal Rotor (B) Front End Cover Seal Adapter Housing Cover Driver Shaft (A) Blind Plate (A) Driven Shaft (B) Blind Plate (B) -
Page 42: Sdv-320 Exploded View Drawing (Set 2)
Exploded Views and Parts Lists SDV-320 EXPLODED VIEW DRAWING For serial numbers from: • SDV-320: S/N 404 Manual 1861 Rev C p/n 001861 0000... -
Page 43: Sdv-320 Parts List
Exploded Views and Parts Lists SDV-320 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Plate Guide (C) Front End Plate Lock Nut (FEC) Rear End Plate Lock Washer (FEC) Front End Cover, C-face SPACER (A) Grease Cover Socket Bolt (FEP, Casing) Screw shaft Ass'y set (R, L) Socket Bolt (B/H, FEP) Bearing Holder (A) -
Page 44: Sdv-430 Exploded View Drawing (Set 1)
Exploded Views and Parts Lists SDV-430 EXPLODED VIEW DRAWING For serial numbers less than or equal to: • SDV-430: S/N 351 Manual 1861 Rev C p/n 001861 0000... -
Page 45: Sdv-430 Parts List
Exploded Views and Parts Lists SDV-430 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Seal Adapter Housing Front End Plate Mechanical Seal Stator (B) Rear End Plate Mechanical Seal Rotor (B) Front End Cover Seal Adapter Housing Cover Driver Shaft (A) Blind Plate (A) Driven Shaft (B) Blind Plate (B) -
Page 46: Sdv-430 Exploded View Drawing (Set 2)
Exploded Views and Parts Lists SDV-430 EXPLODED VIEW DRAWING For serial numbers greater than: • SDV-430: S/N 352 Manual 1861 Rev C p/n 001861 0000... -
Page 47: Sdv-430 Parts List
Exploded Views and Parts Lists SDV-430 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Plate Guide (C) Front End Plate Lock Nut (REP) Rear End Plate Lock Washer (REP) Front End Cover, C-face Spacer Grease Cover Socket Bolt (FEP, Casing) Screw Shaft Ass'y set (R, L) Socket Bolt (B/H, FEP) Bearing Holder (A) -
Page 48: Sdv-800 Exploded View Drawing (Set 1)
Exploded Views and Parts Lists SDV-800 EXPLODED VIEW DRAWING For serial numbers greater than: • SDV-800: S/N 240 Manual 1861 Rev C p/n 001861 0000... -
Page 49: Sdv-800 Parts List
Exploded Views and Parts Lists SDV-800 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Seal Adapter Housing Front End Plate Mechanical Seal Stator (B) Rear End Plate Mechanical Seal Rotor (B) Front End Cover Seal Adapter Housing Cover Driver Shaft (A) Blind Plate (A) Driven Shaft (B) Blind Plate (B) -
Page 50: Sdv-800 Exploded View Drawing (Set 2)
Exploded Views and Parts Lists SDV-800 EXPLODED VIEW DRAWING For serial numbers from: • SDV-800: S/N 241 Manual 1861 Rev C p/n 001861 0000... -
Page 51: Sdv-800 Parts List
Exploded Views and Parts Lists SDV-800 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Plate Guide (C) Front End Plate Blind Plate (C) Rear End Plate Blind Plate Gasket (C) Front End Cover Air Vent Grease Cover Socket Bolt (FEP, Casing) Screw shaft set (R, L) Socket Bolt (B/H, FEP) Bearing Holder (A) -
Page 52: Sdv-1500 Exploded View Drawing
Exploded Views and Parts Lists SDV-1500 EXPLODED VIEW DRAWING Manual 1861 Rev C p/n 001861 0000... -
Page 53: Sdv-1500 Parts List
Exploded Views and Parts Lists SDV-1500 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Eye Bolt Front End Plate Air Vent Rear End Plate Dowel Pin Front End Cover Mesh Filter Screw & Shaf set (R, L) Blind Plate (A) Grease Cover Blind Plate (B) Timing Gear Set... -
Page 54: Sdv-2700 Exploded View Drawing
Exploded Views and Parts Lists SDV-2700 EXPLODED VIEW DRAWING Manual 1861 Rev C p/n 001861 0000... -
Page 55: Sdv-2700 Parts List
Exploded Views and Parts Lists SDV-2700 PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Casing Sight Glass Ass'y Front End Cover Air Filter Ass'y Rear End Plate Air Vent Front End Cover Dowel Pin Screw shaft Set (R, L) Blind Plate (A) Grease Cover Blind Plate (B) Timing Gear Set... -
Page 56: Warranty - Vacuum Products
WARRANTY – VACUUM PRODUCTS Subject to the terms and conditions hereinafter set forth and set forth in General Terms of Sale, Tuthill Springfield (the Seller) warrants products and parts of its manufacture, when shipped, and its work (including installation and start-up) when performed, will be of good quality and will be free from defects in material and workmanship. -
Page 57: Operating Data Form / Product Registration
NOTES: IMPORTANT All blowers manufactured by Tuthill Springfield are date coded at time of shipment. In order to assure you of the full benefits of the product warranty, please complete, tear out and return the product registration card, or register online at tuthillvacuumblower.com. - Page 58 TUTHILL CORPORATION Tuthill Springfield 4840 West Kearney Street Springfield, Missouri USA 65803-8702 O 417.865.8715 800.825.6937 F 417.865.2950 Manual 1861 Rev C p/n 001861 0000 tuthillvacuumblower.com 12/19 Copyright © 2019 Tuthill Springfield All rights reserved. Product information and specifications subject to change.
