with DIN-Rail Mounting Kit
1. Introduction
Thank you for purchasing this Gigabit PoE Injector. It was designed to
add 56 VDC power to an Ethernet port so you can deliver power and
data over a single Ethernet cable to your Ethernet device in the field.
Features:
Provides power to remote network devices
✓
Supports 10/100/1000 Base-T Ethernet standards
✓
Fully IEEE 802.3at compliant PoE (PSE) type 1 and 2 operation
✓
Maximum Power Delivered:
✓
Type 1: 13W
Type 2: 25.5W
One DC-Jack and one TB-2 for 12~24V DC power input
✓
Supports one PoE power enabled LED indicator
✓
One Ethernet Data and one PoE RJ45 connectors
✓
Built in step-up converter from 12~24V DC to 56 VDC
✓
Small Rugged Metal Housing for critical applications
✓
Provides direct panel and DIN Rail mounting methods
✓

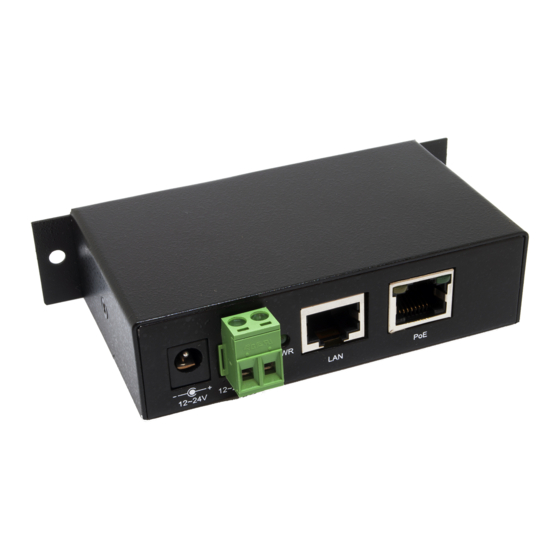

2. Connector Layout
Power input
DC-jack
Gigabit PoE Injector
Installation Guide
Power LED
Power input
terminal blocks
PoE LED
(Amber)
Data input
port
1
No connection)
PoE output
port
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exsys EX-6007POE
Summary of Contents for Exsys EX-6007POE
-
Page 1: Installation Guide
Gigabit PoE Injector with DIN-Rail Mounting Kit Installation Guide 1. Introduction Thank you for purchasing this Gigabit PoE Injector. It was designed to add 56 VDC power to an Ethernet port so you can deliver power and data over a single Ethernet cable to your Ethernet device in the field. Features: Provides power to remote network devices ✓... - Page 2 Gigabit PoE Injector with DIN-Rail Mounting Kit DC-jack and 2-pin terminator blocks for power input: To inject the DC power to the Ethernet cable, the Injector needs a 12~24V DC power applied either on its DC jack or the 2-pin terminal blocks (but not both at the same time), its internal circuits will convert it to 56V DC to use for PoE.
- Page 3 Gigabit PoE Injector with DIN-Rail Mounting Kit 4. DIN-Rail Mounting The metal DIN-Rail attachment clip should be used when you are mounting the Injector onto a DIN-Rail. The clip came with 2 screws to fix it on the rear side of the Injector. Fixing screws DIN-Rail Clip 5.
- Page 4 Gigabit PoE Injector with DIN-Rail Mounting Kit 6. Mechanical Drawings...
