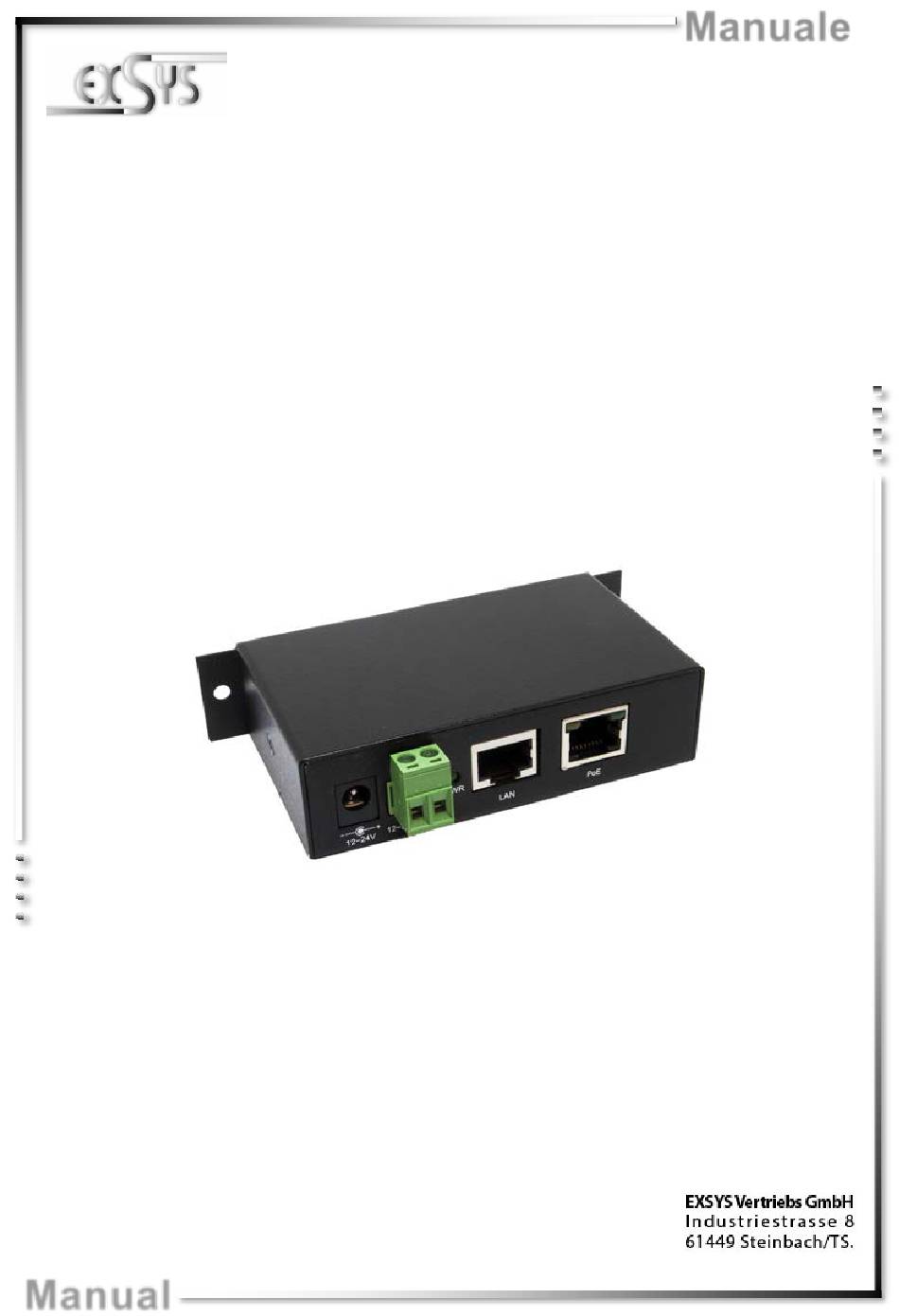

- Page 1 Manuale EX-6007PoE Iniettore PoE Gigabit con kit di montaggio su guida DIN Power over Ethernet (PoE) Injector for Gigabit IEEE 802.3af/at Power Vers. 1.0 / 11.11.20 Manual...
-
Page 2: Table Of Contents
Installazione Hardware Pulizia Dati tecnici Disegno tecnico Index Description Extent of Delivery Layout, Connections & LED’s 9-10 Layout Connections & LED’s 9-10 Hardware Installation 10-11 Cleaning Technical Information Technical Drawing © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Descrizione
+12-24 V o la presa CC può facilmente fornire l'alimentazione. L'EX-6007PoE garantisce una trasmissione dati sicura e prestazioni eccellenti fino a 1000 Mbit/s. L'EX-6007PoE può essere facilmente collegato a una guida di supporto in un armadio server utilizzando il kit guida DIN incluso nella consegna. Con l'alloggiamento stretto e compatto e un intervallo di temperatura compreso tra 0°C e 60°C,... -
Page 4: Struttura, Attacchi E Led
T-Block +12-24V : Attenzione!!! Non collegare mai l'alimentazione (+) su GND, questo può distruggere il tuo hardware!!! GND (Ground) +12-24V Jack DC +12-24V : Attenzione!!! Utilizzabile solo con l'alimentatore incluso! © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 5: Installazione Hardware
Se qualcosa non vi è chiaro, fare riferimento alle istruzioni del manuale per l'uso del proprio computer. 1. Installare EX-6007PoE a parete o utilizzando la guida DIN inclusa Kit su guida di montaggio. Montaggio: su guida di montaggio... -
Page 6: Pulizia
DC-Buchse oder des optionalen Netzteils an den Terminal Block des Injektor an und stecken Sie den Netzstecker des Netzteils in eine Steckdose. 4. Schließen Sie nun Ihr PoE-PD-Gerät an den PoE Anschluss an. Die gelbe PoE Power LED sollte aufleuchten, wenn das PD korrekt erkannt und vom EX-6007PoE versorgt wird. 5. Pulizia Per pulire il dispositivo utilizzare esclusivamente un panno asciutto e privo di pelucchi e rimuovere lo sporco esercitando una leggera pressione. -
Page 7: Disegno Tecnico
EX-6007PoE Italiano 7. Disegno Tecnico © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description
Connector makes it easy to provide the required power. It uses data transfer rates up to 1000Mbit/s. The EX-6007PoE can easily be mounted on a carrier rail in a server rack by using the supplied DIN-Rail kit. With its slim and compact housing and a temperature range of 0°C to 60°C it is an optimal product for use in industrial environments. -
Page 9: Layout, Connections & Led's
3.2 Connections & LED‘s +12-24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +12-24V +12-24V Connector: ATTENTION!!! Use only with Power Supply which is included in delivery! © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 10: Hardware Installation
PC's, we can only give you a general guide for connecting the EX-6007PoE. If you have any questions, please refer to the operating instructions of your computer system. 1. Install the EX-6007PoE on the wall or on a mounting rail by using the supplied DIN- Rail kit. Installation on... -
Page 11: Cleaning
4. Now connect your PoE-PD device to the PoE connector. The yellow PoE Power LED should light up when the PD is correctly detected and powered by the EX-6007PoE. 5. Cleaning For cleaning please use only a dry fluff less cloth and remove the dirt with gently pres- sure. -
Page 12: Technical Drawing
English EX-6007PoE 7. Technical Drawing © Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved...
