Summary of Contents for OKM FS Future GeoSeeker Mini
- Page 1 FS Future Series ® GeoSeeker Mini User's Manual...
- Page 2 Any information contained in these operating instructions may be changed without prior notice. OKM does not make any warranty for this document. This also applies without limitation to implied assurances of merchantability and fitness for a specific purpose. OKM does not assume any responsibility for errors in this manual or for any incidental or consequential damage or loss associated with the delivery, exploitation or usage of this material.
-
Page 3: Table Of Contents
6.3.4 Processing a measurement ....................7 Analyzing a Measurement ........................7.1 Interpretation of scan values ....................... 7.2 Interpretation of graphical representations ................. 7.3 Examples ............................7.3.1.1 Water Deposits ......................46 7.3.1.2 Water deposits with areas of high resistivity ..............46 OKM GmbH www.okmmetaldetectors.com... - Page 4 7.3.1.4 Impervious layers ......................47 8 Tips and Tricks ............................. 8.1 Improving your scan results ......................8.2 Speeding up your measurement ....................8.2.1 Operation with 3 people ....................... 8.2.2 Operation with 5 people ....................... 8.3 Measurements under tough soil conditions .................. OKM GmbH www.okmmetaldetectors.com...
- Page 5 Figure 8.2: Electrodes have to be equally set into the ground ..............50 Figure 8.3: Operating the GeoSeeker Mini with 3 people ............... 51 Figure 8.4: Operating the GeoSeeker Mini with 5 people ............... 51 Figure 8.5: Drilling a hole and refilling it for the electrode ..............52 OKM GmbH www.okmmetaldetectors.com...
-
Page 7: Introduction
1 Introduction HAPTER Introduction... -
Page 8: Preface
1.1 Preface Dear Customer, first of all we would like to thank you in choosing a product manufactured by OKM. The present product is based on a geoelectrical measuring method utilizing the Schlumberger technique to measure the resistivity of different soil layers. -
Page 9: Important Notes
Avoid using this equipment around active military installations and airports or where there may be other devices that may hamper the signals received. Radars for aircraft, boats and weather reporting may lower the units capabilities. OKM GmbH www.okmmetaldetectors.com... -
Page 10: Voltage / Power Supply
Curved or round objects should be a sign of alarm, especially if buttons, rings or little pegs can be identified or felt. The same applies to recognizable ammunition or bullets and shells. Leave that stuff alone and where it is, do not touch anything and, most importantly, do not take any of those items home OKM GmbH www.okmmetaldetectors.com... - Page 11 Moving such an object may cause those crystals to produce friction, leading to an explosion. If you come across such relics, mark the place and do not fail to report the find to the police or proper authority. Such objects always pose a danger to the life of hikers, walkers, farmers, children and animals. OKM GmbH www.okmmetaldetectors.com...
-
Page 13: Technical Specifications
2 Technical specifications HAPTER Technical specifications... -
Page 14: Control Unit
Dimensions (H x W x D) ....................360 x 290 x 200 mm Weight ............................. 3.60 kg Power Cable Length .......................... 100 m Power Markers ............................10 Voltage Cable Length .......................... 10 m Voltage Markers ............................10 OKM GmbH www.okmmetaldetectors.com... -
Page 15: Scope Of Delivery

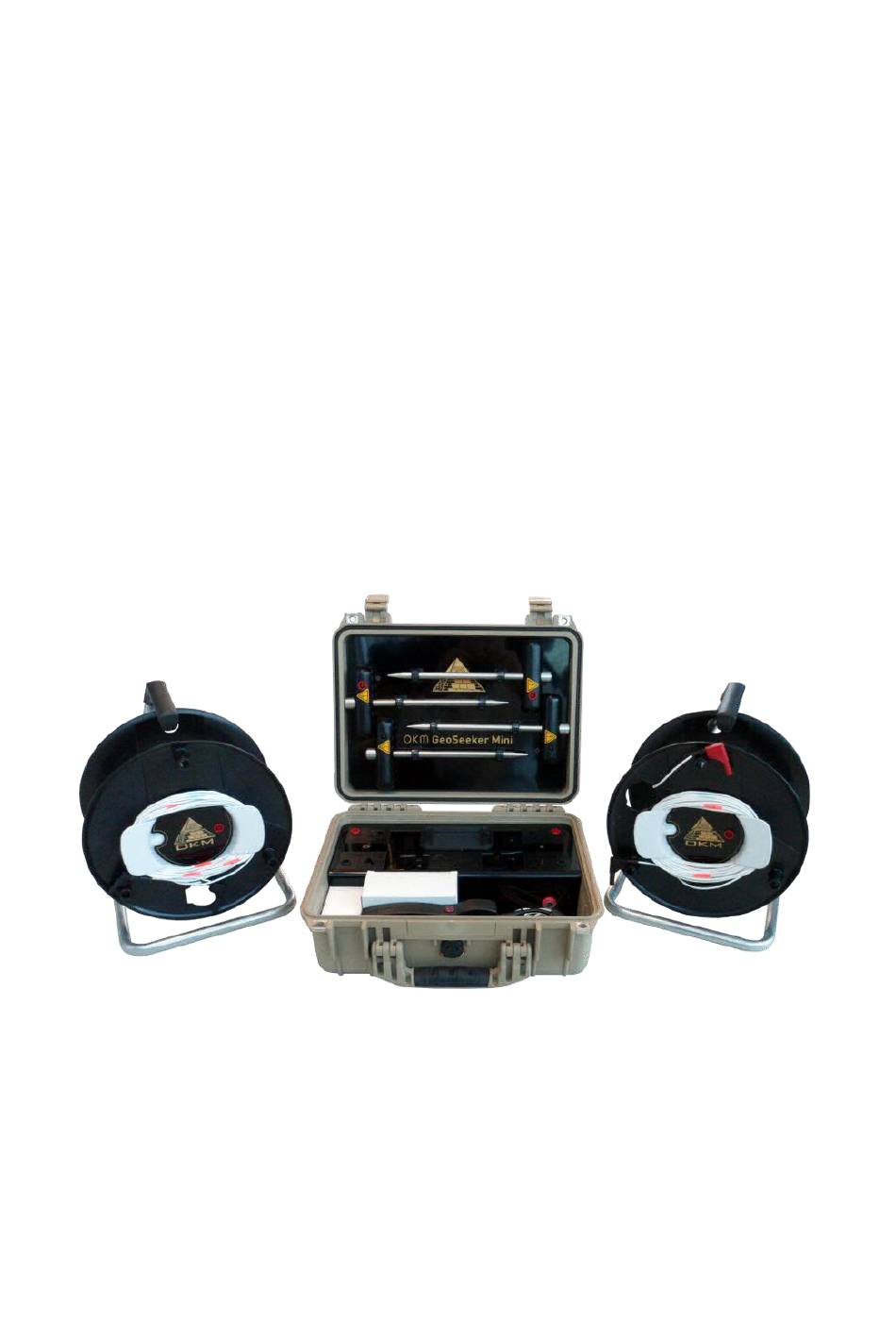

3 Scope of delivery HAPTER Scope of delivery... - Page 16 Control unit Cable drum with power cable, 100 m (328 ft) Voltage cable, 10 m (33 ft) Extension cable, 2 m (6 ft) Electrode Power Pack with charger and travel adapter User manual Table 1: Scope of delivery OKM GmbH www.okmmetaldetectors.com...
-
Page 17: Control Elements
4 Control elements HAPTER Control elements In this section you will learn more about the fundamental use of all control elements for this measuring instrument. All connections, inputs and outputs are explained in detail. -
Page 18: Control Unit
Display with touch screen: The display indicates all measure states and allows you to configure and store your measurements. It is equipped with a touch screen to operate the unit. Socket for Power Pack: This socket needs to be connected with the external Power Pack for appropriate power supply. OKM GmbH www.okmmetaldetectors.com... -
Page 19: Cable Drums With Power Cables And Voltage Cables
Voltage cable with markers: The voltage cable (10 m) is also labeled with 10 markers in total. This markers are numbered from 1 to 10 and will help you to place the electrodes at the right position during the measurement. OKM GmbH www.okmmetaldetectors.com... -
Page 20: Electrodes
You may use a hammer to do so. The shaft is made of stainless steel to be robust against moisture and weird soil conditions. Socket: The socket is used to connect the cables whereas the red socket is used for the power injection and the black socket is used for measuring the voltage. OKM GmbH www.okmmetaldetectors.com... -
Page 21: Operating Modes
5 Operating Modes HAPTER Operating Modes This section explains the basic functionality and how to operate the GeoSeeker Mini. -
Page 22: New Measurement
• This option allows you to adjust the display brightness as well as getting information about firmware, serial number and OKM contact details. 5.1 New Measurement This is the option of your choice if you are going to create a new measurement. There are some additional parameters to choose before the actual measuring takes place. -
Page 23: Figure 5.3: Adjusting The Number Of Scan Points
B … is the distance between left Voltage Electrode and control unit as well as the distance between control unit and right Voltage Electrode in terms of distance markers (numbered from 1 to 10). In the example of figure 5.4 you have to place the Voltage Electrodes at marker “10”. OKM GmbH www.okmmetaldetectors.com... -
Page 24: Figure 5.5: Measuring The Current Scan Point
(see figure 5.4 on page 23). This procedure will repeat until all depths of the current scan point have been measured. Then the screen from figure 5.7 appears. OKM GmbH www.okmmetaldetectors.com... -
Page 25: Figure 5.7: Move All Equipment To The Next Scan Point
This procedure will repeat until the whole measurement is completed. If you want to abort the current measurement push the OKM logo on the top left corner. This will definitely abort the current measurement that cannot be resumed later on. -
Page 26: Figure 5.9: Select Empty Memory Slot
After the measurement has been saved successfully you will be redirected to the graphical representation, as shown in figure 5.8 on page 25. Push the button to leave this screen and go back to the main menu. OKM GmbH www.okmmetaldetectors.com... -
Page 27: Show Memory
According to the colors you can now analyze your measurement to find out if some interesting target is available. Please read chapter 7.2 "Interpretation of graphical representations" on page 45 to learn more about the used color codes. Push the button to leave this screen and go back to the main menu. OKM GmbH www.okmmetaldetectors.com... -
Page 28: Delete Measurement
5.14 appears. Brightness Support Information Back to main menu Figure 5.14: Support Information The following options can be selected: • Brightness Adjust the brightness of the display. • Support Information Shows information regarding firmware and serial number. OKM GmbH www.okmmetaldetectors.com... -
Page 29: Brightness
This option displays information regarding the device's serial number and firmware version as well as OKM's contact details. Back to settings menu Figure 5.16: Support Information Those information may be useful if you are contacting your local OKM distributor for additional support requests. Push the button to return to the settings menu. OKM GmbH... -
Page 31: Conducting A Measurement
6 Conducting a measurement HAPTER Conducting a measurement In this section you will learn how to conduct a measurement with GeoSeeker Mini. -
Page 32: Basic Information
It is also much more easy to detect thick objects that overlap more depth layers than flat objects as shown in figure 6.1. Figure 6.1: Detection of thick objects is better than flat objects OKM GmbH www.okmmetaldetectors.com... -
Page 33: General Measurement Procedure
Electrodes (electrodes with red socket) and the resulting voltage is measured with the two Voltage Electrodes (electrodes with black socket). By increasing (or decreasing) the distance of the Power Electrodes step by step the measure depth also increases (or decreases) accordingly, as shown in figure 6.3. OKM GmbH www.okmmetaldetectors.com... -
Page 34: Figure 6.3: Power Injection Depth Depends On Electrodes Distance
A … In this example each Power Electrode has to be placed in a distance of 5 m to the left and • right of the control unit. This corresponds to the power cable marker “1”. So you will unroll your cable until the marker “1” is reached and then you put the electrode into the ground. OKM GmbH www.okmmetaldetectors.com... - Page 35 • You have to move the Voltage Electrodes (black socket) inwards to another cable marker (several cable markers might be skipped). This will be necessary if the measured voltage is too high. OKM GmbH www.okmmetaldetectors.com...
-
Page 36: Setting Up A Measurement
After investigating your area you should place markers at each scan point. The distance of your 3 or 5 scan points can vary from situation to situation. The picture from figure 6.2 on page 33 shows an example of how to mark your scan points. OKM GmbH www.okmmetaldetectors.com... -
Page 37: Setting Up The Voltage Measurement
Place the control unit at the first scan point marker. Remove the voltage cable (10 m) completely from the Cable Drums. Connect the first plug of the Voltage Cable with the control unit. Make sure to use the end with the lowest marker number “1”. OKM GmbH www.okmmetaldetectors.com... - Page 38 Put the Voltage Electrode next to the cable marker into the ground as deep as possible. Use a hammer if necessary. Connect the Voltage Cable with the Voltage Electrode. Repeat steps 2 to 7 for the second Voltage Cable and Electrode. OKM GmbH www.okmmetaldetectors.com...
-
Page 39: Setting Up The Power Injection
10. Now connect the plug of the first Power Cable Drum into the appropriate socket of the control unit. 11. Unroll the cable of the Power Cable Drum by moving away from the control unit until you reach cable marker indicated measurement screen of your device. OKM GmbH www.okmmetaldetectors.com... - Page 40 13. Use the Extension Cable (2 m) and connect it with the Power Drum. 14. Now connect the second end of the Extension Cable with the Power Electrode. 15. Repeat steps 10 to 14 for the second Power Cable Drum and Electrode. OKM GmbH www.okmmetaldetectors.com...
-
Page 41: Processing A Measurement
After switching on the Power Pack itself, the GeoSeeker Mini will be powered on too. After a short while, you should see the main menu in the display. OKM GmbH www.okmmetaldetectors.com... - Page 42 You should replace the power electrodes for at least 1 - 2 meters and try again. Alternatively you can try to water the electrodes to get better electrical contact to the surrounding soil as explained in section 8.3 on page 52. OKM GmbH www.okmmetaldetectors.com...
-
Page 43: Analyzing A Measurement
7 Analyzing a Measurement HAPTER Analyzing a Measurement In this section you will learn how to analyze a measurement by using the Android application. -
Page 44: Interpretation Of Scan Values
Resistivity (Ωm): The ground resistivity is measured in Ohm-Meter (Ωm) and indicates the resistance of the underground at the current scan point and depth. It is mainly calculated by the power, voltage and distance of the electrodes. OKM GmbH www.okmmetaldetectors.com... -
Page 45: Interpretation Of Graphical Representations
In most cases the indicated depth is often higher than the real depth might be but it will give you a rough estimation where the objects of your desire may OKM GmbH www.okmmetaldetectors.com... -
Page 46: Examples
At the bottom of the graphic there is another area of high conductance (very low resistivity), mostly indicating a high probability of a water deposit. Figure 7.4: Example of a water deposit and barrier OKM GmbH www.okmmetaldetectors.com... -
Page 47: Cavities
A typical structure you can see after measuring in mountain areas are impervious layers or barriers under the ground. This layer mostly appears at the transition of loosely soil to massive stone. Figure 7.6: Example of an impervious layer / barrier OKM GmbH www.okmmetaldetectors.com... -
Page 49: Tips And Tricks
8 Tips and Tricks HAPTER Tips and Tricks In this section you will get some additional tips you should consider during your measurements. -
Page 50: Improving Your Scan Results
The electrodes have to be replaced a lot while conducting a measurement. This is really tough when you are operating the device just by yourself. So it is strongly recommended to work in a group of 3 or better 5 people. OKM GmbH www.okmmetaldetectors.com... -
Page 51: Operation With 3 People
Voltage Electrodes (black socket) which are connected to the control unit. Figure 8.4: Operating the GeoSeeker Mini with 5 people So finally there is one person per electrode and the operator of the control unit is only giving instructions and takes care about the whole scanning process. OKM GmbH www.okmmetaldetectors.com... -
Page 52: Measurements Under Tough Soil Conditions
(small cup) over each electrode shaft to improve the electrical ground contact. You have to assure that you water all electrodes with the same amount of water. This procedure has to be repeated each time after replacing the electrodes. OKM GmbH www.okmmetaldetectors.com...
