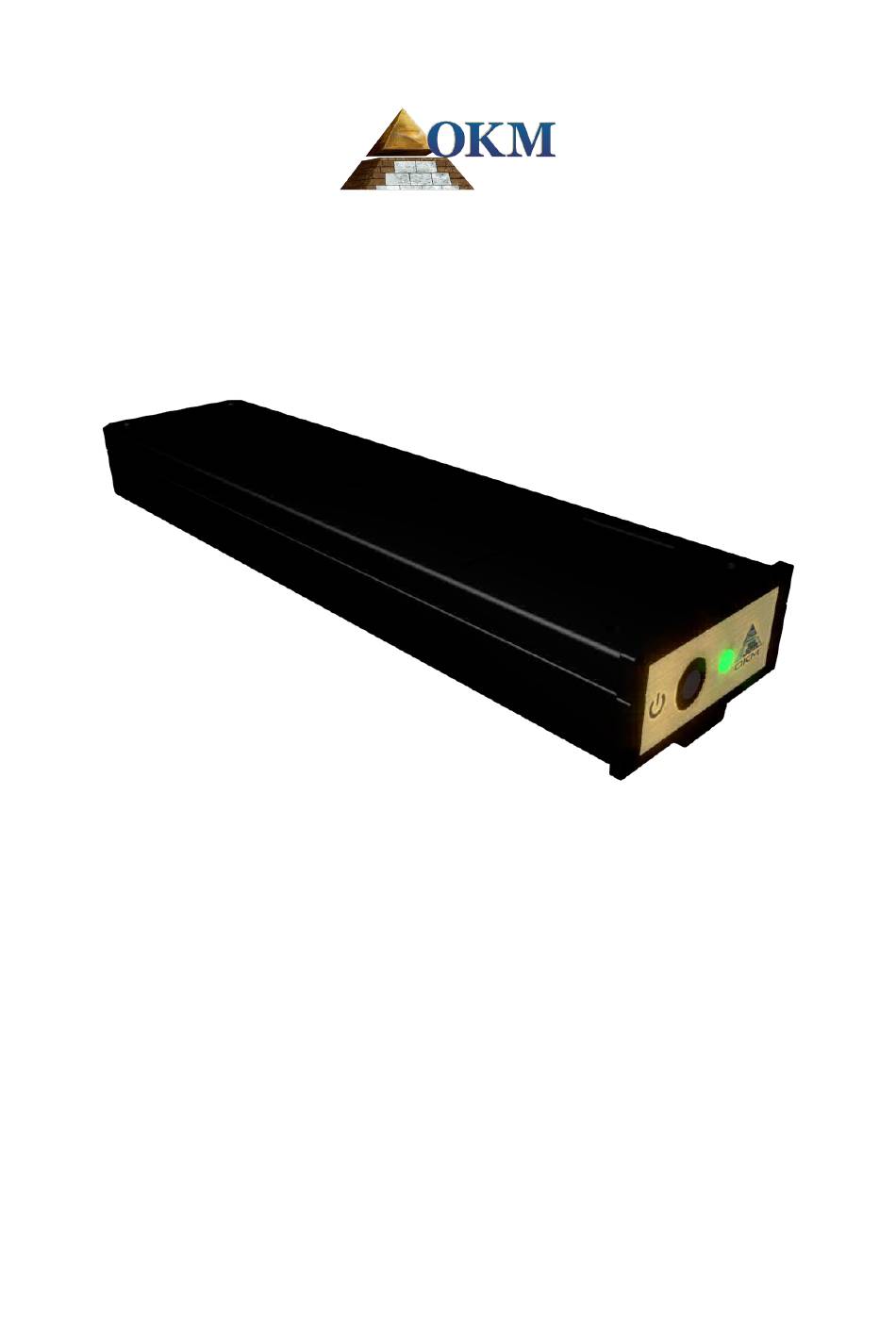

- Page 1 FS Future Series OKM Power Pack Model: PP16V3A02 Please read these instructions before using the Power Pack!
-
Page 2: Table Of Contents
7. Malfunction and failure ................. 7 8. Maintenance and cleaning ................7 9. Disposal & environment protection .............. 7 10. Technical specification ................8 OKM GmbH Julius-Zinkeisen-Str. 7, 04600 Altenburg, Germany Tel: +49 3447 4993000 * Fax: +49 3447 49930029 Internet:... -
Page 3: General Safety And Usage Instructions
Maintenance and repair must only be carried out by qualified personnel • of the manufacturer OKM! Do not connect anything to or bypass the terminal connectors pins. • Do not operate the Power Pack below -10 °C or above +70 °C. -
Page 4: Delivery Kit
• 1 x Travel Adapter • 3. Usage of the Power Pack The Power Pack is used as an mobile power supply for technical devices of the manufacturer OKM. There is no other application designated. Power on/off button Terminal connector... -
Page 5: Charge State And Monitoring Of The Power Pack
To turn on the Power Pack, the power on/off button should be pressed until the LED is shining. If the Power Pack cannot be powered on, it might be discharged to much and recharging is required (see section 6). Push the power on/off button once more to dim the LED. To switch off the Power Pack the power on/off button must be pressed for a longer time. -
Page 6: Charging The Power Pack
6. Charging the Power Pack To charge the Power Pack use only the delivered docking station and charger. Take care that during the charging process the Power Pack is powered off. Connect the cable of the charger to the charging socket of the docking station and plug in the charger into the power socket. -
Page 7: Malfunction And Failure
7. Malfunction and failure The Power Pack is fit up with a excess-current cut-out. If any failure arises during the usage, the Power Pack will power off automatically. You can use the Power Pack again as usual after replacing the erroneous end device. Possible reasons for malfunction can be for example: faulty or defective connection •... -
Page 8: 10. Technical Specification
10. Technical specification Technical specifications are subject change incorporate technical improvements! Power Pack Charger Lithium Polymer Accumulator Wall mount power supply Output voltage (max): 16,8 V DC Input voltage: 100 V - 240 V AC Output current (max): 3 A Input current (max): 1.2 A Capacity: 4900 mAh Mains frequency: 50/60 Hz...
