Rotary Sprinter SPO15 Installation Instructions Manual page 6

1
2'

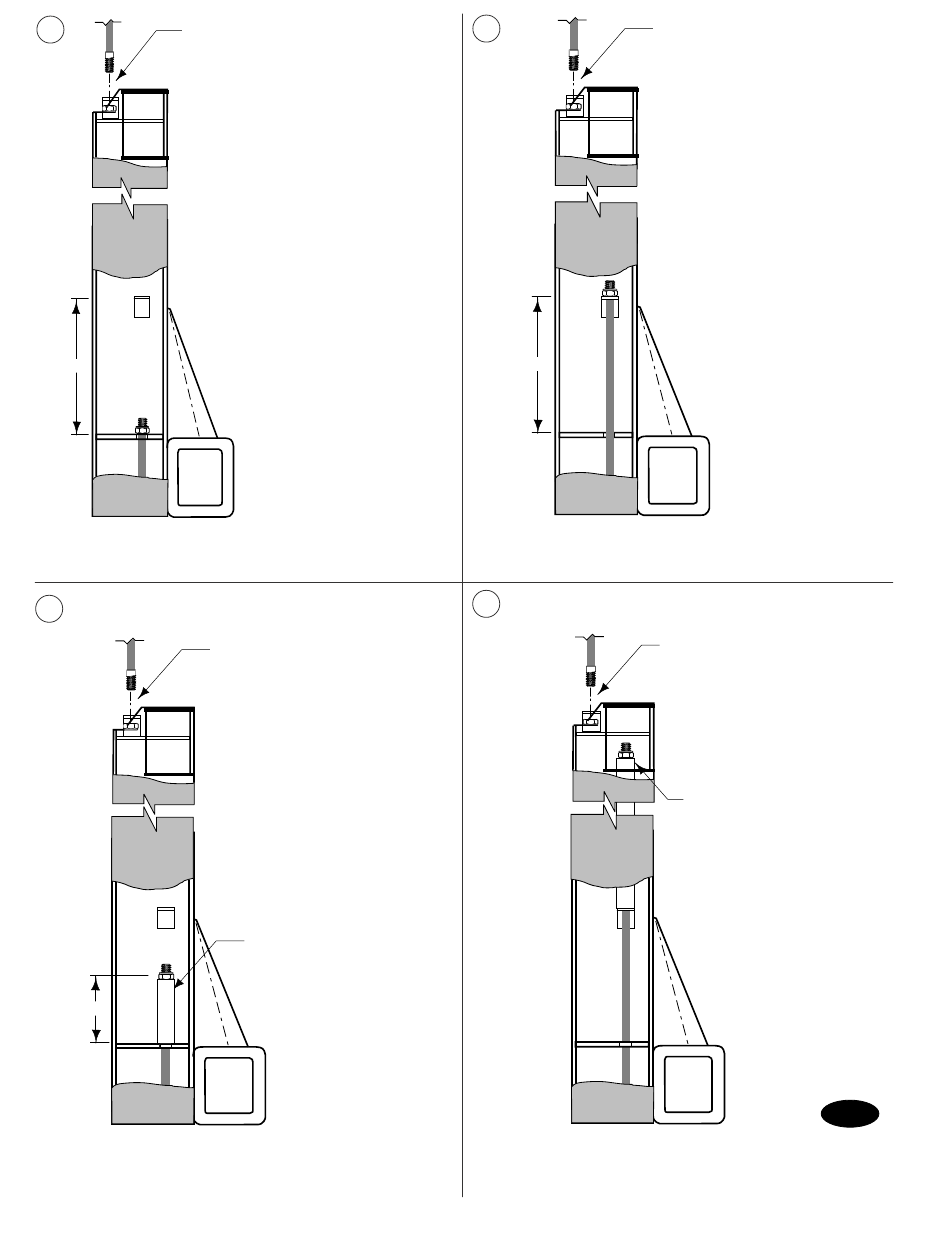

For 16'-6" height with 472" long cable or for 14'-6" height with
424" long cable, both use pattern one.
2
1'
For 16' height lift with 472" cable or for 14' height lift with 424"
long cable, both use pattern two. Has 1' spacer provided.
Upper Cable Tie Off
3/4" Nylon Insert Locknut
Upper Cable Tie Off
3/4" Nylon Insert Locknut.
1' Spacer
3
2'
For 15'-6" height lift with 472" cable or for 13'-6" height lift with
424" long cable. Use pattern 3.
4
For 15' height carriages use pattern four with 472" cable. Has 1'
spacer provided.
6 6
Upper Cable Tie Off
3/4" Nylon Insert Locknut
Upper Cable Tie Off
3/4" Nylon insert locknut.
1' Spacer
Fig. 11
