Arm
Restraint Gear

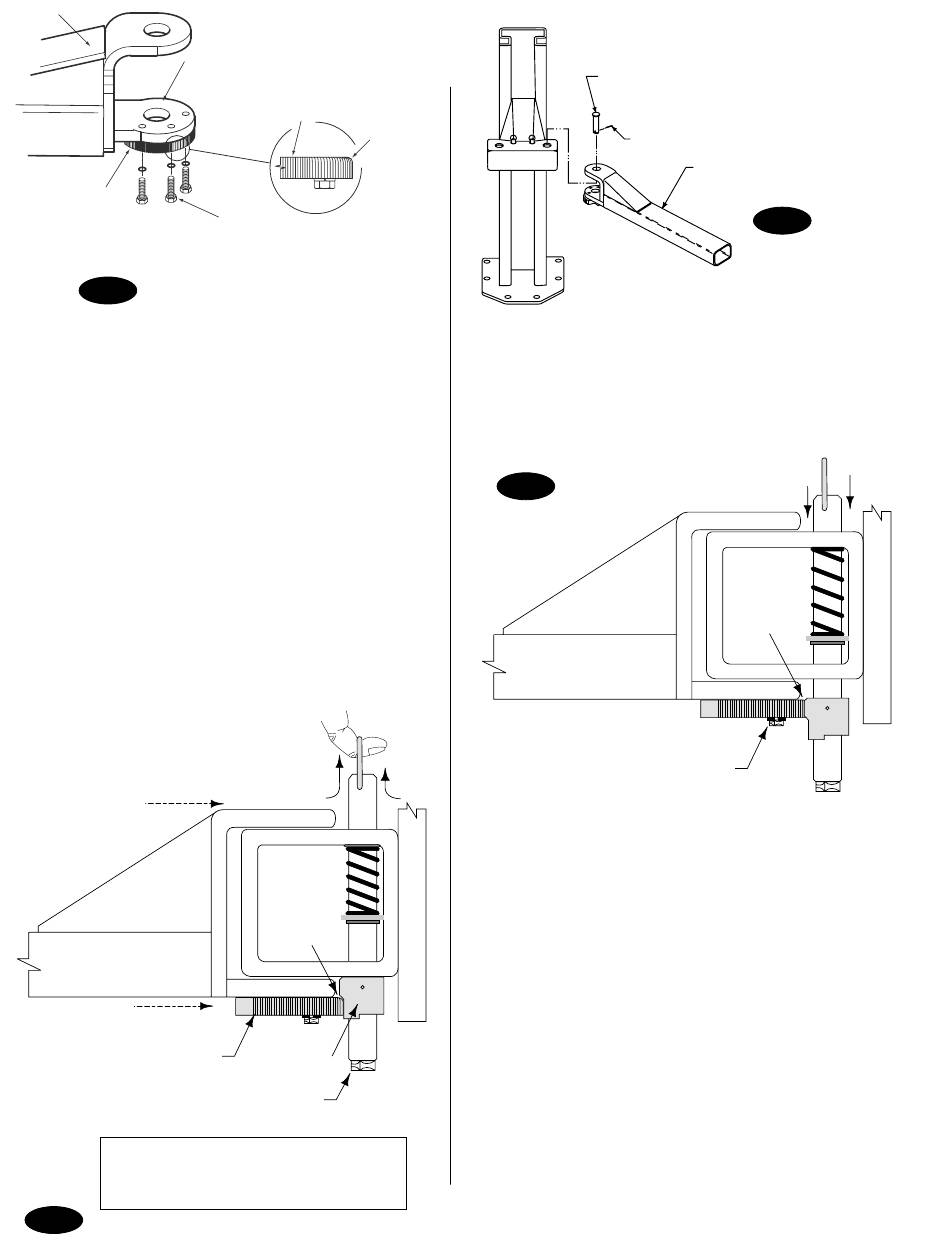

Fig. 18
15. Arm Restraints & Superstructure: Before install-
ing arms, install arm Restraint Gears as follows: Install
Restraint Gear onto arm clevis, as shown in Fig. 18, so
that the rounded edge (top side) of the gear teeth is fac-
ing upward. Then, install the three (3) 3/8"-16NC x 1
1/2" Lg. HHCS (12 total for all 4 arms) and 3/8" Spring
Lockwashers into the gear and arm as illustrated Fig. 18,
but do not tighten. After installing Restraint Gears, raise
carriage to a convenient height. Grease swivel arm pins
and holes with Lithium grease, Fig. 20. Raise Gear Block
by pulling upward on pin-ring to allow enough clearance
for the Restraint Gear and arm to slide over the yoke and
under the teeth of the Gear Block (or gear stop), Fig. 19.
Install 1-3/4" diameter arm pin(s) and 3/16" x 2-1/4" cotter
pin(s), Fig. 20.
Pull up on pin ring
to raise Gear Block
Arm slides into yoke
clevis and under
restraint Gear Block
Restraint Gear
Note: Pin, Ring, Spring and Gear
Block are pre-assembled at factory. No
set up required.
Fig. 19
Arm Clevis
"TOP" will be
marked on top side
of restraint gear
(12) 3/8-16NC x 1-1/2" lg. HHCS
(12) 3/8" Spring Lockwashers
Allow enough
gap clearance
for Restraint
Gear to slide
under block
Gear Block
Adjustment Bolt
Rounded
Edge Up
After installing arm pin, torque the three Restraint
Gear bolts to 30-34 Ft. Lbs.. Let the Gear Block down
allowing the teeth of the Restraint Gear and Gear Block
to mesh together, Fig. 21.
Fig. 21
(12) 3/8" - 16NC x 1-1/2" Lg. HHCS
(12) 3/8" Spring Lockwashers
Note: To check operation of arm restraints, raise car-
riage 1" min. from full down position. Pull up on
pin-ring and adjust arms to desired position. To
engage restraint, let pin-ring down allowing gear
teeth to mesh together. It may be necessary to
rotate arm slightly to engage gear teeth.
16. Wheel Spotting Dishes: Position wheel spotting
dishes as described in Fig. 1. Drill (4) 3/8" holes 2 1/2"
deep in concrete floor using holes in wheel spotting dishes
as guide. Drive all anchors, provided, into concrete to
secure dish.
10 10
Arm Pin

Cotter Pin

Arm
Fig. 20
Release or lower pin
to activate restraint
Gears will
mesh
together,
closing
clearance
gap.
