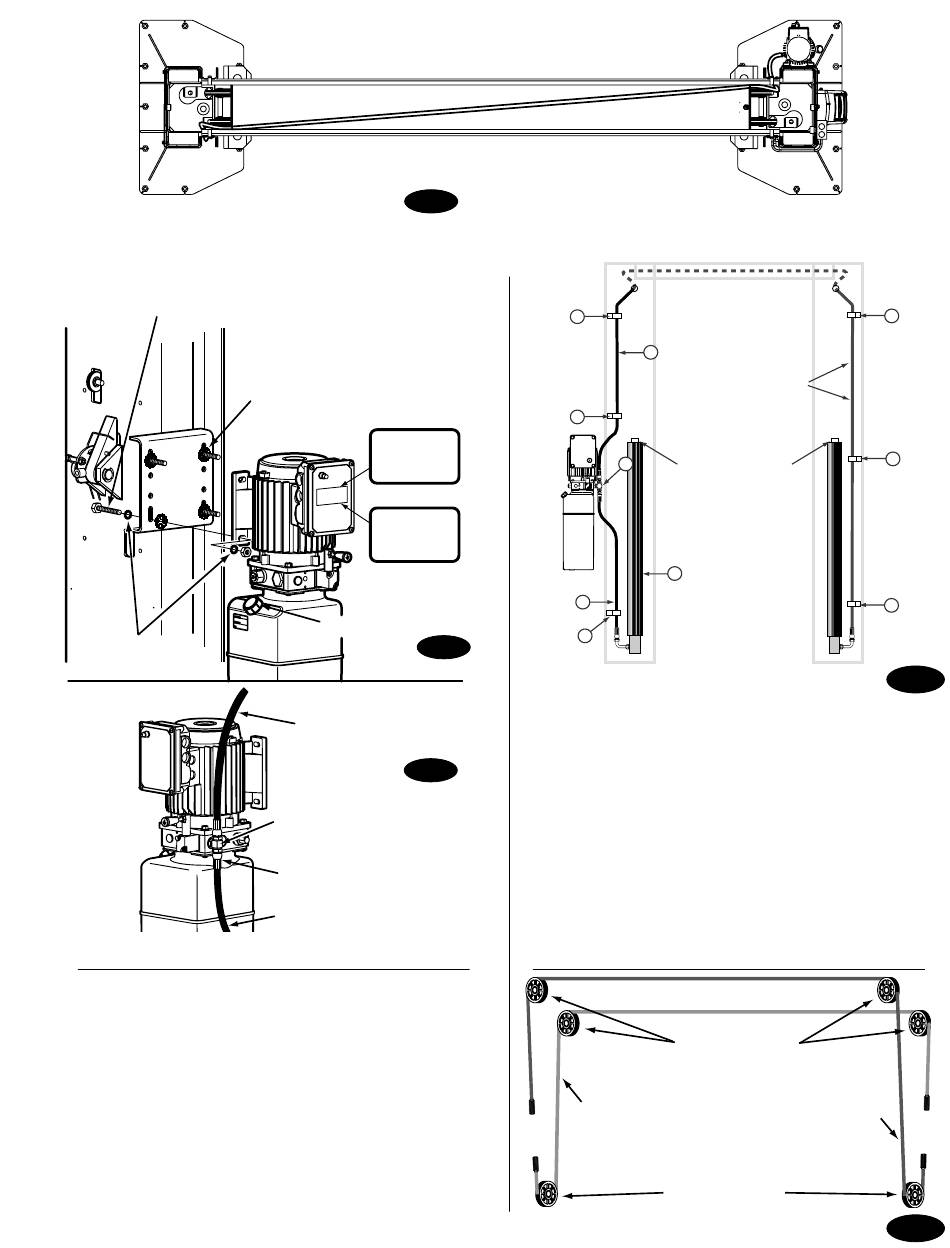

Hose Routes Diagonally Across Overhead - Rotary Sprinter SPO15 Installation Instructions Manual

Use (4) 5/16"-18NC x 1-1/2" HHCS And Nuts
On one bolt place
(2) 5/16" Star Washers
10. Equalizer Cables: Fig. 10 describes general cable
arrangements. It is easier to tie-off lower studs first.
A) Run cable stud up through the lower tie-off plate,
and/or bracket(s), and/or spacer(s) depending on the
lift model, Fig. 11.
B) Push cable up until stud is above top of carriage Fig.
11.
C) Run nylon insert locknut onto studs so that 1/2" ex-
tends out from locknut Fig. 11.
D) Pull cables back down through carriage Fig. 11.
E) Run cable overhead and tie-off top studs and torque to
about 100 in-lbs., see Fig. 10 & Fig. 11.

Hose Routes Diagonally Across Overhead

Fig. 7b
Push nuts hold bolts to brackets
CAPACITY
15,000 LBS.
For SPO15
CAPACITY
18,000 LBS.
For SPO18
Fill Breather Cap
Fig. 8a
Overhead Hose
Fig. 8b
Branch Tee
Crimped Hose
Sleeve (Typical)
Power Unit (Short) Hose
7
3
5
4
2
6
ITEM QTY.
1 2
2 1
3 1
4 1
5 3
5 3
6 1
6 1
7 2
7 2
7 2
2nd Cable
5
Hose runs through holes in
extensions, then through
holes in overhead.
Hose runs down
approach side to
cylinder on left column.
Cylinder Bleeders
1
FRONT
DESCRIPTION
Hydraulic Cylinder
Power Unit Hose
Overhead Hose
Branch Tee
Hose Clips(5/8")
5/16"-18NC x 3/8" lg. PHMS
Hose Clips(1/2")
5/16"-18NC x 3/8" lg. PHMS
Hose Clips(5/8")
5/16"-18NC x 1/2" lg. PHMS
5/16"-18NC Nut
Upper Sheaves
1st Cable
Lower Sheaves
7
5
5
Fig. 9
Fig. 10
