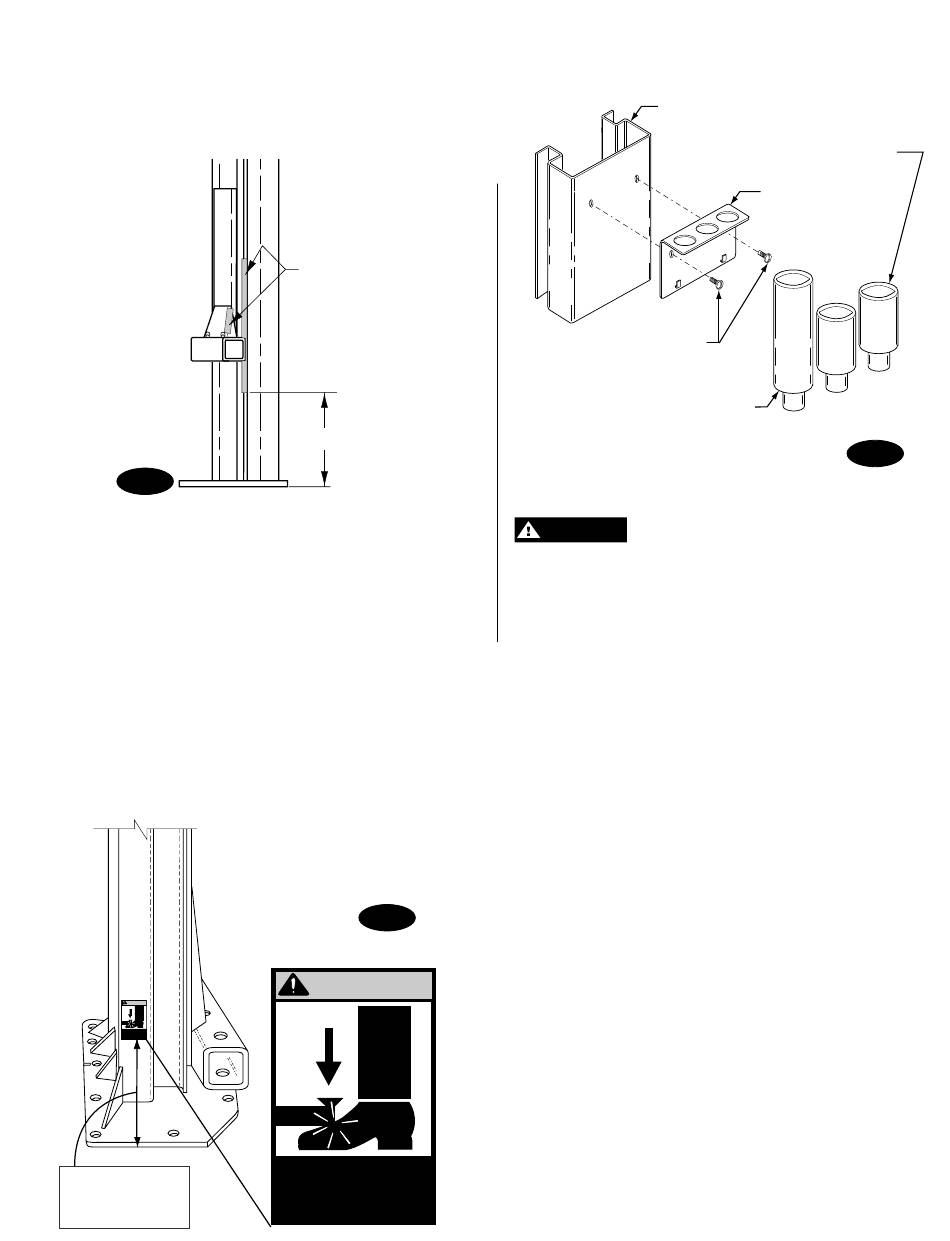

17. Door Bumper Installation:

1) Press bumpers on column edge and carriage, Fig. 22.
Note: Door Bumpers may need to be installed in
different areas depending upon type(s) of vehicles used.
The above installation is the most recommended.
Fig. 22
18. Pressure Test: Run lift to full rise and keep motor
running for 5 seconds. Stop and check all hose connec-
tions. Tighten or reseal if required. Repeat air bleeding of
cylinders.
19. Final Adjustments: Raise lift to check equalizer
cable tension. Below carriage, grasp adjacent cables
between thumb and forefinger, with about 15 lbs. effort
you should just pull the cables together. Adjust at upper
tie-offs, Fig. 11.
20. Decal Location: Install enclosed pinch point decals.
Place (1) decal on each column, Fig. 23.
WARNING
Keep feet
clear of lift
while lowering
Place WARNING decal
a minimum of 8" from
the bottom of the decal
to the ground.
Door Bumpers
21"
Fig. 23
WARNING
Keep feet
clear of lift
while lowering
21. Adapter Rack: Install adapter rack, Fig. 24. Place
extension in racks.
(2) 5/16" x 3/8" Lg.
pan head screws
(2) 10" Extensions
(2)qty. 10" adapter extensions and (4)qty.
WARNING
5" adapter extensions are supplied with each lift. These
extensions should not be stacked more than 15" high.
11
Column
(4) 5" Extensions

Adapter Rack

Fig. 24
