Tft 320X240 Display With 262.144 Colors; Hw Rev. 1.00; Copyright © 2014 Mikroelektronika. All Rights Reserved. - mikroElektronika mikromedia for STM32 Schematics

DATA BUS
LCD-BLED
LCD-RST
LCD-CS#
Schematic
continues
overleaf

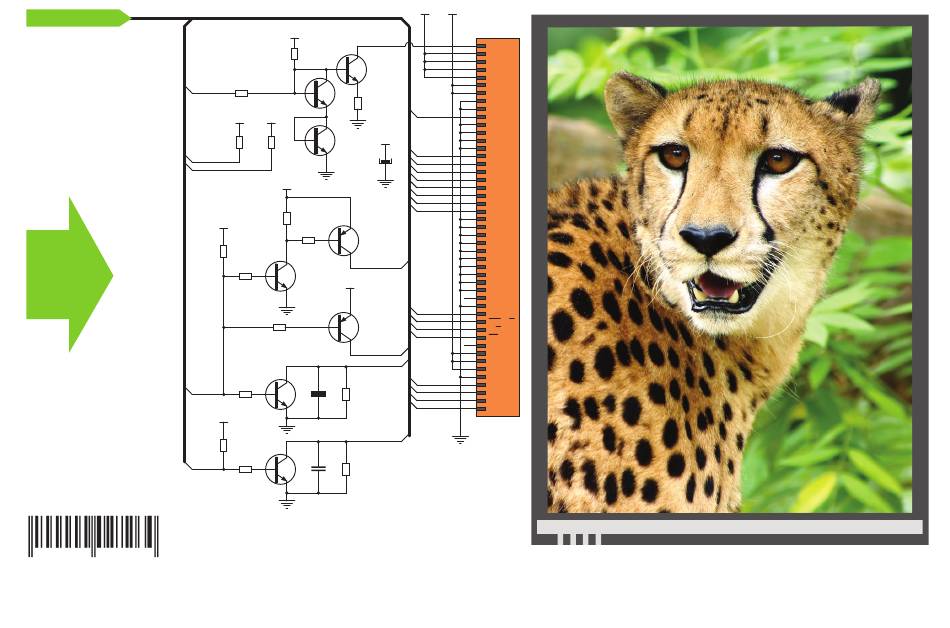

mikromedia for STM32 M3-M4 schematic
ver. 1.00d
0 100000 027264

HW REV. 1.00

Copyright © 2014 MikroElektronika. All Rights Reserved.
VCC-3.3
R23
10K
Q1
BC846
R51
R40
1K
Q2
12
BC846
VCC-3.3 VCC-3.3
Q3
R25 R24 VCC-3.3
10K 10K BC846
10uF
E13
VCC-1.8
R41
1K
VCC-3.3
Q9
R58
BC856
R3 10K
4K7
R15 Q10
BC846
VCC-1.8
10K
Q8
R55
BC856
10K
R14
DRIVEA R42
C21
100K
100nF
10K
Q6
BC846
VCC-3.3
LCD-YD
R54
4K7
R56
DRIVEB R57
C22
100K
100nF
10K
Q7
BC846
MikroElektronika assumes no responsibility or liability for any errors or inaccuracies that may appear in the present document.
VCC-SYS VCC-3.3
TFT1
1
L ED- K
2
L ED- A1
3
L ED- A2
4
L ED- A3
5
L ED- A4
6
IM0
7
IM3
8
IM2
9
IM1
LCD-RST 10
RESET
11
VSYNC
12
HSYNC
13
DOTCLK
14
DE
T-D7 15
DB17
T-D6 16
DB16
T-D5 17
DB15
T-D4 18
DB14
T-D3 19
DB13
T-D2 20
DB12
T-D1 21
DB11
T-D0 22
DB10
23
DB9
24
DB8
25
DB7
26
DB6
27
DB5
28
DB4
29
LCD-XR
DB3
30
DB2
31
DB1
32
DB0
33
SDO
34
SDI
PMRD 35
RD
PMWR 36
WR(D/C)
LCD-RS 37
D/C(SCL)
LCD-CS# 38
CS
39
TE
40
LCD-YU
VDDI
41
VCI
LCD-XL
42
VCI
43
GND
LCD-XR 44
X+(R)
LCD-YD 45
Y+(D)
LCD-XL 46
X- (L )
LCD-YU 47
Y- (U)
MI0283Q-9A

TFT 320x240 display with 262.144 colors

Specification and information contained in the present schematic are subject to change at any time without notice.
