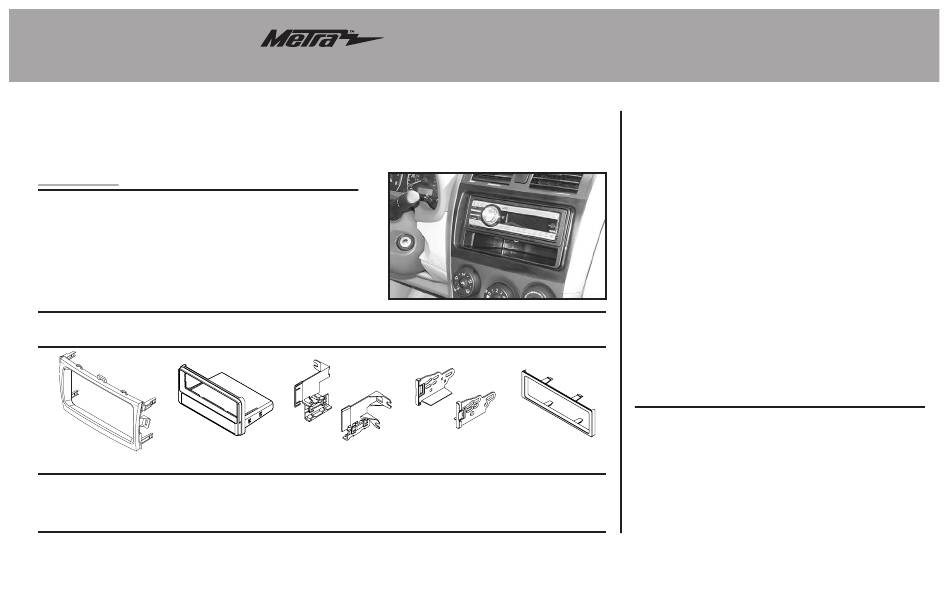

INSTALLATION INSTRUCTIONS FOR PART 99-8223
Toyota Corolla 2009-2013
99-8223/99-8223S
KIT FEATURES
• ISO DIN radio provision with pocket
• Painted to match factory dash
99-8223 = Black, 99-8223S = Silver

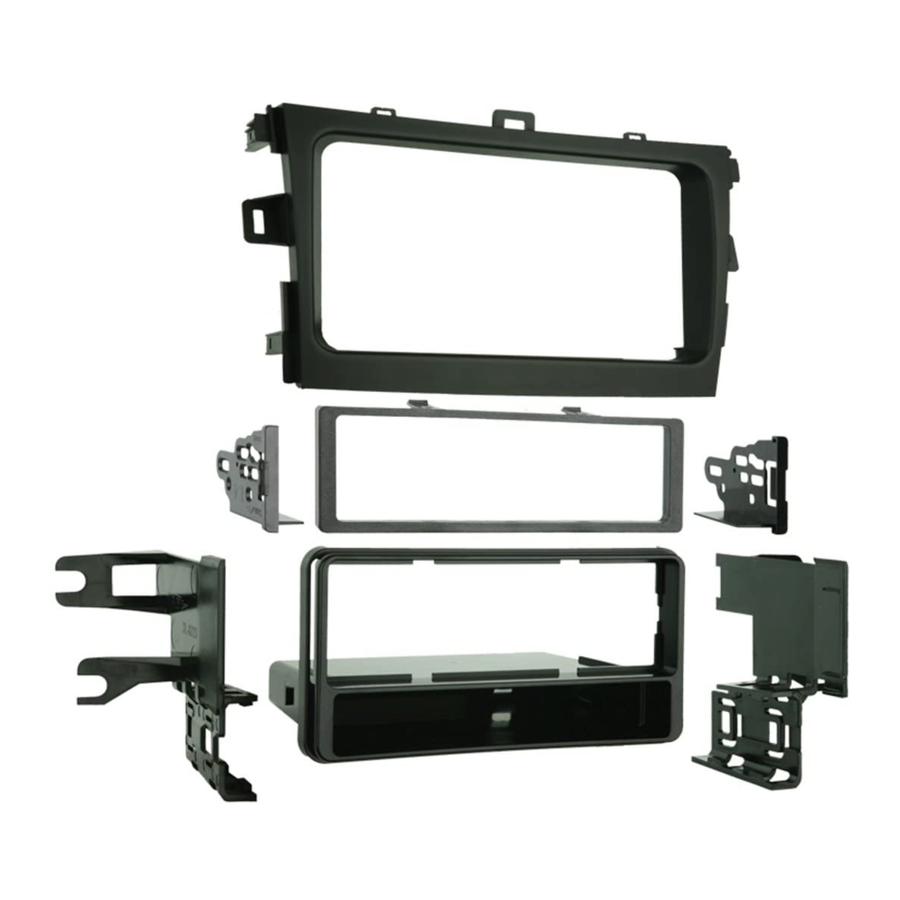

KIT COMPONENTS
• A) Radio housing trim plate • B) Radio housing • C) Radio housing brackets • D) ISO Brackets
• E) ISO Trim plate
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-1761 - Toyota harness 1987-up • TYTO-01 - LEX/TOY 2001-up amp interface
Antenna Adapter: • 40-LX11 LEX/TOY 2002-up into car
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Small flat blade screwdriver
APPLICATIONS
C
D
E
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-8223
Summary of Contents for Metra Electronics 99-8223
- Page 1 • ISO DIN radio provision with pocket • Painted to match factory dash 99-8223 = Black, 99-8223S = Silver KIT COMPONENTS • A) Radio housing trim plate • B) Radio housing • C) Radio housing brackets • D) ISO Brackets •...
-
Page 2: Dash Disassembly
99-8223 Dash Disassembly 1. Unclip and remove the (4) side trim panels from the right and left side of the radio and a/c controls. (Figure A) 2. Unclip and remove the a/c vent panel above the factory radio. (Figure B) 3. -
Page 3: Kit Assembly
99-8223 Kit Assembly ISO DIN radio provision with pocket 1. Attach the clips removed from the factory radio to the back of the radio housing trim plate. (Figure A) 2. Slide the radio housing brackets onto the sides of the radio housing until the side clips engage.
