Kusam-meco 603 Manual

An ISO 9001:2008 Company
SPECIAL FEATURES :
High Accuracy, Digital Reading
Large LCD for easy reading
Automatic Zero adjustment.
Instant continuity buzzer
OverLoad Protection on all ranges
Recessed safety designed Input Jacks
Diode, Continuity Test &
Transistor hFE Test.
Automatic -ve polarity indication
ACCESSORIES :
Test Leads, Spare Fuse, Carrying Case, User's Manual
& Battery.
OPTIONAL ACCESSORIES:
Current Clamp CA 300, Current Clamp Adaptor CA500,
CA1000, CA2000, High Voltage Probe PD-28.

ELECTRICAL SPECIFICATIONS- 603

Accuracy : ± (% reading + digit) at 23 ± 5°C less than 75% RH.
DC VOLTAGE
Range
Resolution
100 V
200 mV
2 V 1 mV
±(0.5%rdg + 1dgts)
20 V 10 mV
200 V 100 mV
1000 V 1 V
Input Impedance : 10M
Overload Protection : 500V DC / 350V AC for 15 sec.on
the 200mV range, 1200V DC / 800V AC on all other ranges
AC CURRENT
Range
Resolution
200 A
100 nA
1 A
2 mA
±(1.2%rdg + 4dgts)
10 A
20 mA
100 A
200 mA
±(2.0%rdg + 4dgts)
10 A 10 mA
Overload Protection : 10A Input fused upto 12A for 30 sec.
Other range Input, 0.8A/250V Fuse.
Voltage Burden : 10A range 700mV MAX.
DC CURRENT
Range
Resolution
200 A
100 nA
1 A
2 mA
±(1.0%rdg + 1dgt)
10 A
20 mA
100 A
200 mA
±(2.0%rdg + 3dgts)
10 A 10 mA
Overload Protection : 10A Input fused upto 12A for 30 sec.
Other range Input, 0.8A/250V Fuse.
Voltage Burden : 10A range 700mV MAX.
®
An ISO 9001:2008 Company
Navin com/D:Sandeep Gupta/New Catlog Dec 2011/KM-603.cdr
®

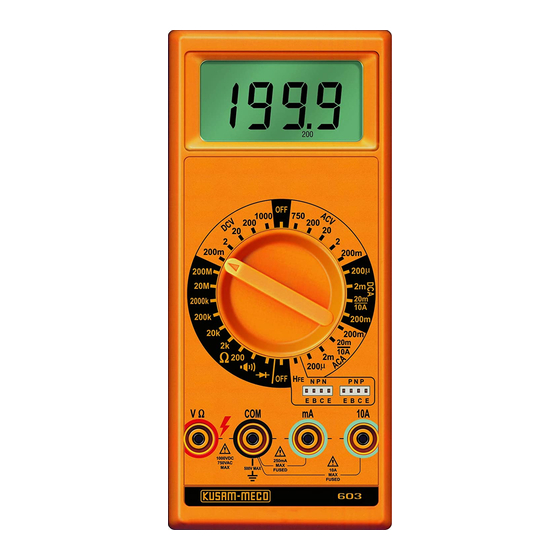

3½ DIGIT 1999 COUNTS DIGITAL MULTIMETER
GENERAL SPECIFICATIONS :
Sensing : Average Sensing.
Basic Accuracy : ±(0.5%rdg + 1dgt)
Display : 3½ digit Max. 1999 Counts Large
LCD display
Display Size : 18 mm
Measurement Rate : 3 measurements
per second nominal
Over range Indication : MSB (highest)
digit (1) or (-1) is displayed.
Low battery : The "
the battery voltage drops below the operating
Voltage.
Operating Temperature : 0°C to +50°C; 70%R.H.
Storage Temperature : -20°C to 60°C; 0-80%R.H.
(With Battery Removed)
Power : Single, Standard 9V battery.
Dimension : 170(L) x 80(W) x 40(H)mm
Weight : Approx. 250g (including battery)
AC VOLTAGE
Accuracy
Range
200 mV
2 V
20 V
200 V
750 V
Input Impedance : 10M
Overload Protection : 500V DC / 350V AC for 15 sec. on
the 200mV range, 1200V DC / 800V AC on all other ranges
RESISTANCE
Accuracy Range
200
2 K
20 K
200 K
2000 K
20 M
200 M
Overload Protection : 500V DC/AC
Test Voltage : 200
MAX, 200M range 3.2V MAX., Other range 3.0V MAX
Accuracy
TRANSISTOR hFE TEST
Range
0 to 1000
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022 -2 4156638,
Email : kusam_meco@vsnl.net,
10Amps RANGE
" sign is displayed when
Resolution Accuracy
100 V
1 mV
±(1.0%rdg + 4dgts)
10 mV
100 mV
±(1.5%rdg + 4dgts)
1 V
Accuracy
Resolution
±(1.0%rdg + 3dgts)
0.1
1
10
±(0.8%rdg + 1dgt)
100
1 K
±(3.0%rdg + 3dgts)
10 K
±(5.0%rdg -10dgts)
100 K
range 3.2V MAX., 20M range 3.0V
Vce Basic DC Current
10 A
2.8V ± 0.4V
All Specifications are subject to change without prior notice
Tel. : 022-241224540, 24181649,
8 FUNCTIONS 30 RANGES
Model 603
FUSED
DIODE TEST
Test Current 1.0 ± 0.6mA
Test Voltage
3.2V MAX.
Overload Protection : 500V DC or AC rms
CONTINUITY TEST
Audible Sound Buzzer
Less than 100
Overload Protection :
500V DC or AC rms
Fax : 022 - 24149659
Website : www.kusamelectrical.com,
