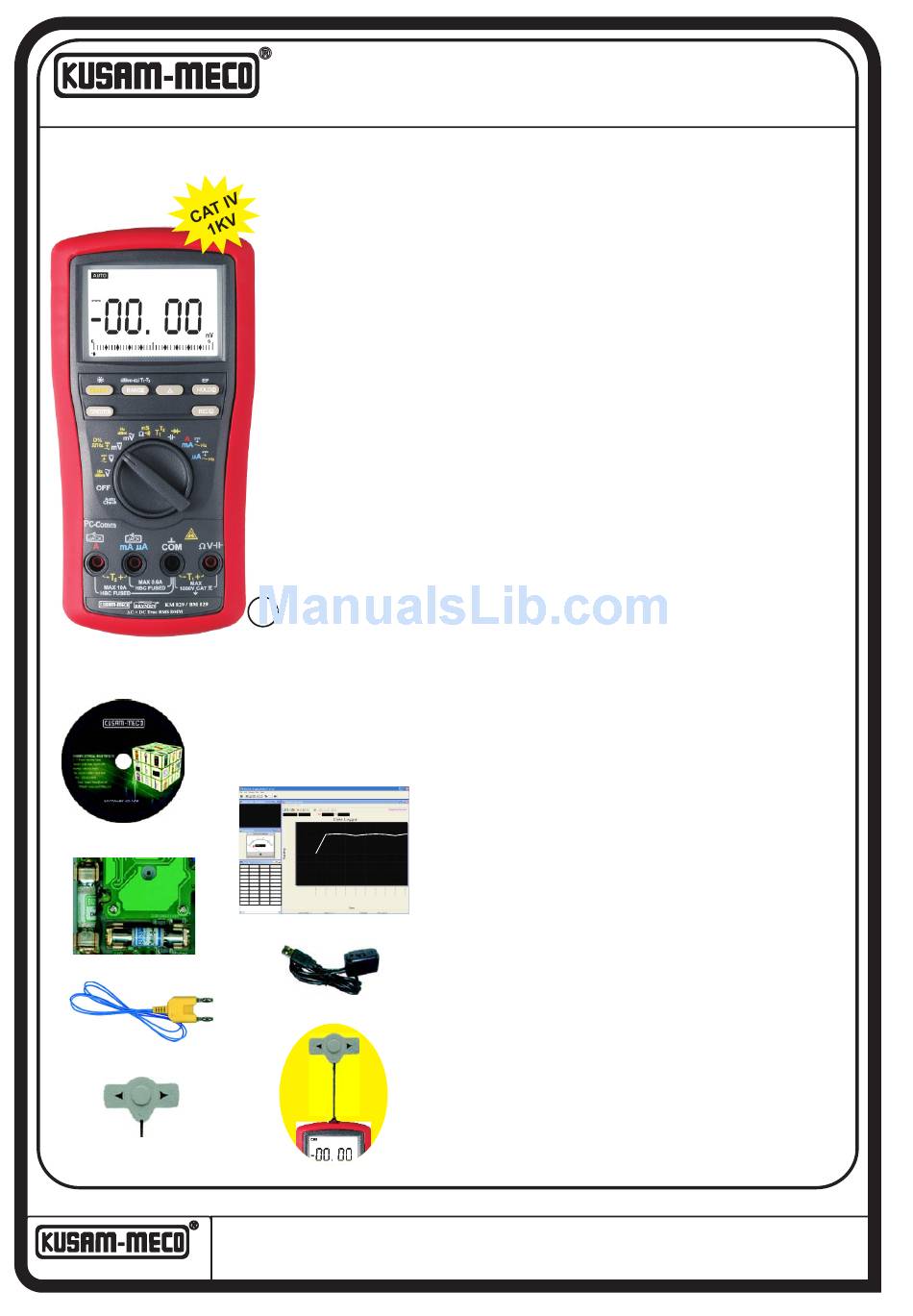

Model KM 829
Model - KM 829
Software CD
Fuse
Thermocouple
Magnetic Hanger
®
An ISO 9001:2008 Company
Navin com/D:Sandeep Gupta/New Catlog Dec 2011/KM-829.cdr
®
AC; AC+ DC TRUE RMS DIGITAL MULTIMETER

SPECIAL FEATURES :

 Beep-Jack Audible & Visible Input Warning
 Auto-Ranging
 Relative Zero Mode
 PC Interface Capability
 AutoCheck V- ; Auto-Ranging
 Crest (Instantaneous Peak Hold)
 T1-T2 differential Temperature readings.
 Data Hold
FEATURES :
 DC Voltage Basic Accuracy 0.08%
 AC; AC+DC True RMS Conversion Frequency
Bandwidth upto 20kHz (V) & 1kHz (A)
 4 Digit 10,000 counts large easy to read Backlight
LCD display
 Fast Measurements, 5/sec; Fully Auto-Ranging
 Record Max/Min readings, Auto Ranging
 NCV & Probe-Contact EF-Detection
 Dbm function with 20 selectable values
 Lo-Z volts to drain Ghost Voltages
(AutoCheck Feature)
 Logic & Line Level Frequency
 Logic Level Duty Cycle Readings & Diode Tester
 Fast Audible Continuity
 Auto Power Off
U
L

ACCESSORIES :

Test lead pair, Battery installed, User Manual,
One BKP60 banana plug type-K Thermocouple.
OPTIONAL ACCESSORIES :
USB interface kit BU-82X; BMH-01 Magnetic Hanger;
BKB32 banana plug to type-K socket plug adaptor.
Current Clamp CA300, Current Clamp Adaptor CA500,
CA1000, CA2000, High Voltage Probe PD-28.
HZ
50.00 HZ
11:51:35:4 600 V
50.00 Hz 580 V
600.0 V
1000
750
500
250
0
-250
Item# Time Sub-Data Main-Data
-500
1 11:51:30:9 50.00 Hz 600 V
2 11:51:31:4 50.00 Hz 610 V
-750
3 11:51:31:9 50.00 Hz 605 V
4 11:51:32:4 50.00 Hz 580 V
-1000
5 11:51:32:9 50.00 Hz 600 V
6 11:51:33:4 50.00 Hz 608 V
11:51:33:9 50.00 Hz
7 603 V
8 11:51:34:4 50.00 Hz 590 V
9 11:51:34:9 50.00 Hz 610 V
10 11:51:35:4 50.00 Hz 605 V
Software
Software Cable
G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct.: 022 -2 4156638,
Email : kusam_meco@vsnl.net,
WITH PC INTERFACE

GENERAL SPECIFICATIONS

 Sensing : AC, AC+DC True RMS
 Display :
9999 Counts : ACV, DCV, Hz & nS
6000 Counts : mV, 
 Update Rate :
Digital Display
41 Segments Bar-graph : 60 per second max
 Low Battery : Below approx 7V
 Operating Temperature : 0°C to 45°C
 Relative Humidity : Max. 80% R.H. for Temperature
up to 31°C decreasing linearly to 50% R.H. at 45°C
 Pollution degree : 2
 Storage Temperature : -20°C to 60°C, <80% R.H.
(with battery removed)
 Altitude : Operating below 2000m
 Temperature Coefficient : nominal 0.15 x ( specified
accuracy)/°C @ (0°C ~ 18°C or 28°C ~ 45°C), or
otherwise specified
 Power Consumption : 5mA typical
 APO Timing : Idle for 30 minutes
 APO Consumption : 50
 Power Supply : Single 9V battery
 Weight : Approx. 635gm with holster
 Dimension : 208(L) x 103(W) x 64.5(H) mm

SAFETY :

 Double insulation per IEC61010-1 2 Ed., En61010-
1 2 Ed., UL61010-1 2 Ed., & CAN/CSA C22.2 No. nd
61010.1-0.92 to Category IV 1000V AC & V DC.
 Transient Protection : 12 kV (1.2/50
 Terminals (to COM) Measurement Category :
V
mA
A
 Overload Protection :
 A & mA : 1A/600VAC, IR 100kA, F Fuse
A
V
mV,
 EMC : Meets EN61326-1:2006 (EN55022, EN61000-
3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5, EN61000-4-6,
EN61000-4-8, EN61000-4-11)
In an RF field of 3V/m :
Capacitance function is not specified
Other function ranges :
Total Accuracy = Specified Accu. + 100 dgts
Performance above 3V/m is not specified.
 Rugged fire retarded casing with battery access door
 Replaceable protective holster with probe-holders &
Tilt-stand.
 600V (Ohm, Capacitance & all other Functions) Input
protection.
 600V High Breaking Capacity fuses protection on
Current inputs.
 LVD meets EN61010-1 CAT IV 1kV.
All Specifications are subject to change without prior notice
Tel. : 022-241224540, 24181649,
Website : www.kusamelectrical.com,
A, mA, A, Ohm & Capacitance
: 5 per second nominal;
A typical
nd
nd
s surge)
: Category IV 1000VAC & DC
A : Category IV 600VAC & 300VDC
: Category IV 600VAC & 500VDC
: 10A/600VAC , IR 100kA, F Fuse
: 1050Vrms, 1450Vpeak
& Others : 600VDC & VAC rms
Fax : 022 - 24149659
