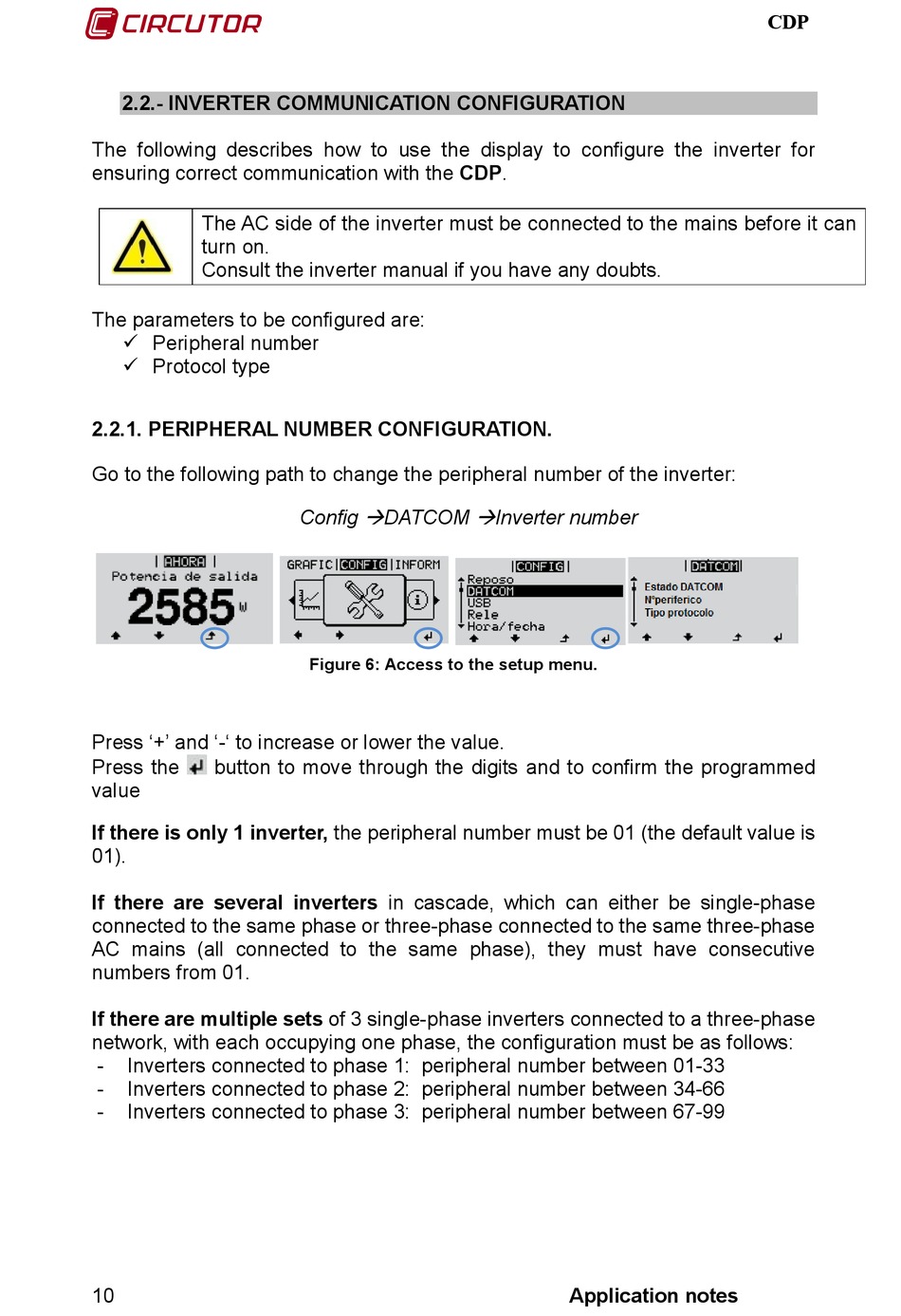

2.2.- INVERTER COMMUNICATION CONFIGURATION

The following describes how to use the display to configure the inverter for
ensuring correct communication with the CDP.
The AC side of the inverter must be connected to the mains before it can
turn on.
Consult the inverter manual if you have any doubts.
The parameters to be configured are:
 Peripheral number
 Protocol type

2.2.1. PERIPHERAL NUMBER CONFIGURATION.

Go to the following path to change the peripheral number of the inverter:
Press '+' and '-' to increase or lower the value.
Press the button to move through the digits and to confirm the programmed
value
If there is only 1 inverter, the peripheral number must be 01 (the default value is
01).
If there are several inverters in cascade, which can either be single-phase
connected to the same phase or three-phase connected to the same three-phase
AC mains (all connected to the same phase), they must have consecutive
numbers from 01.
If there are multiple sets of 3 single-phase inverters connected to a three-phase
network, with each occupying one phase, the configuration must be as follows:
- Inverters connected to phase 1: peripheral number between 01-33
- Inverters connected to phase 2: peripheral number between 34-66
- Inverters connected to phase 3: peripheral number between 67-99
10
Config DATCOM

Figure 6: Access to the setup menu.
Inverter number

