Ethernet Connector
Ethernet Connection LED
Steady orange indicates that an Ethernet connection is successfully established.
Data Transmission LED
Flashing green indicates that the detector is transmitting or receiving data.
Detector Status LED
The detector is equipped with an orange/green LED used to display the status of the
detector's operation. The table below summarizes the operating states of the detector and
the corresponding LED states.
1
2
3

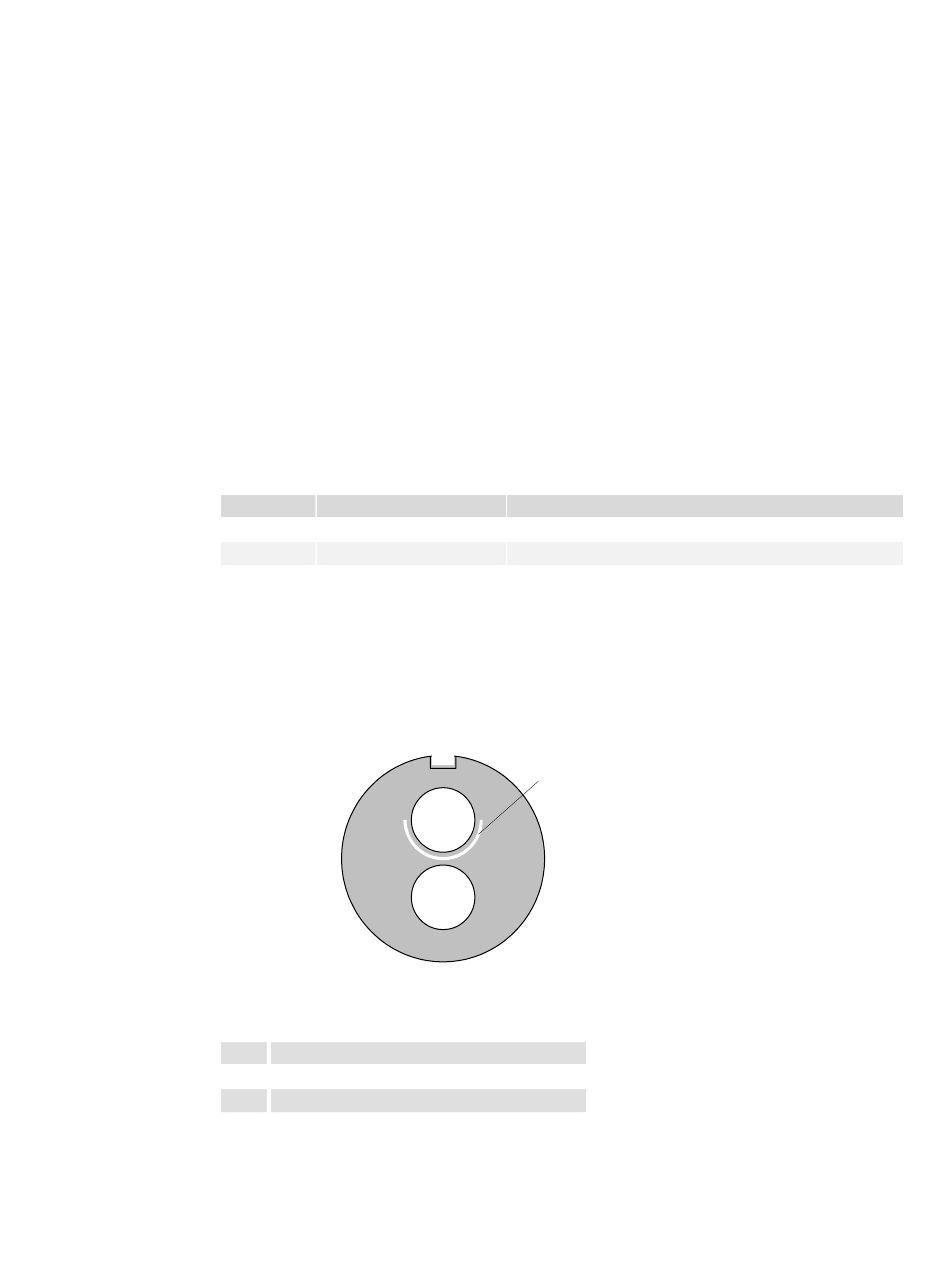

Power Connector
1
2
The detector requires a single voltage input (+10-27V / 10W). There is a protection for
misconnection, via a resettable fuse. When the fuse has been activated (isolating), power
Rad-icon 1520 Detector
Color Of Status LED
Orange
Green
Off
Power Connector
1
2
Rear View
Plug
Description
Supply voltage (+10-27V / 10W)
Ground
Shielding (chassis)
Meaning
Power applied, Standby mode
Detector is operational
No power
Pin 1 indicator
