BCM RX45Q User's Quick Start Card

RX45Q
LGA775 Socket for Intel®
/ Core™ 2 Quad / Core™ 2 Duo/ Celeron Processor

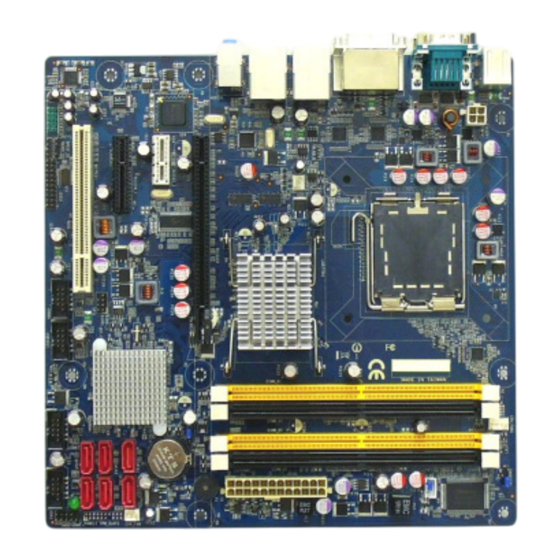

mATX Motherboard
User's Quick Start Card
Version 1.1

• Inspect the Package:

One RX45Q Motherboard
Two SATA Cable
One DVI to VGA Adaptor
One I/O Shield
One Driver CD (Manual/Drivers)
One User's Quick Start Card

• Responsibility:

This manual is provided "As-Is" with no warranties of any kind, it will neither expressed or
implied, including, but not limited to the implied warranties or conditions of this product's
fitness for any particular purpose. In no event shall we be liable for any loss of profits, loss of
business, loss of data, interruption of business, or indirect, special, incidental, or
consequential damages of any kind, even the possibility of such damages arising from any
defect or error in this manual or product. We reserve the right to modify and update the user
manual without prior notice.

WARNING: CMOS Battery Damage

Replace your system's CMOS RAM battery only with the identical CR-2032 3V Lithium-Ion
coin cell (or equivalent) battery type to avoid risk of personal injury or physical damage to your
equipment. Always dispose of used batteries according to the manufacturer's instructions, or
as required by the local ordinance (where applicable). The damage due to not following this
warning will void your motherboard's manufacturer warranty.
Perchlorate Material- Special Handling May Apply.
See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/

ATTENTION: Incorrect BIOS Setup

If you do not know how to handle BIOS setup or how to set it up properly, it is strongly
advisable that you do not modify any of the settings than otherwise instructed in the User's
Quick Start Card. Even a seemingly small incorrect adjustment or modification in the BIOS
setup can render your system unstable or unusable. The incorrect BIOS setup is not covered
by your motherboard's manufacturer warranty.

Additional Information:

Additional information on setting this board up can be found in the User's Manual in the
provided CD-ROM. The Online User's Manual and FAQ/Knowledge Base can be found on
our website by visiting our website: http://www.bcmcom.com.
answered in our FAQ/Knowledge Base, visit our forums and post your messages or submit a
new FAQ through FAQ Submittal form for us to add your question in our FAQ with our
answer.
800/1066/1333MHz MT/s FSB
http://www.bcmcom.com
RX45Q
If your question is not
Motherboard Layout:
• Back Panel:
• Board Layout:
