Installation Instructions

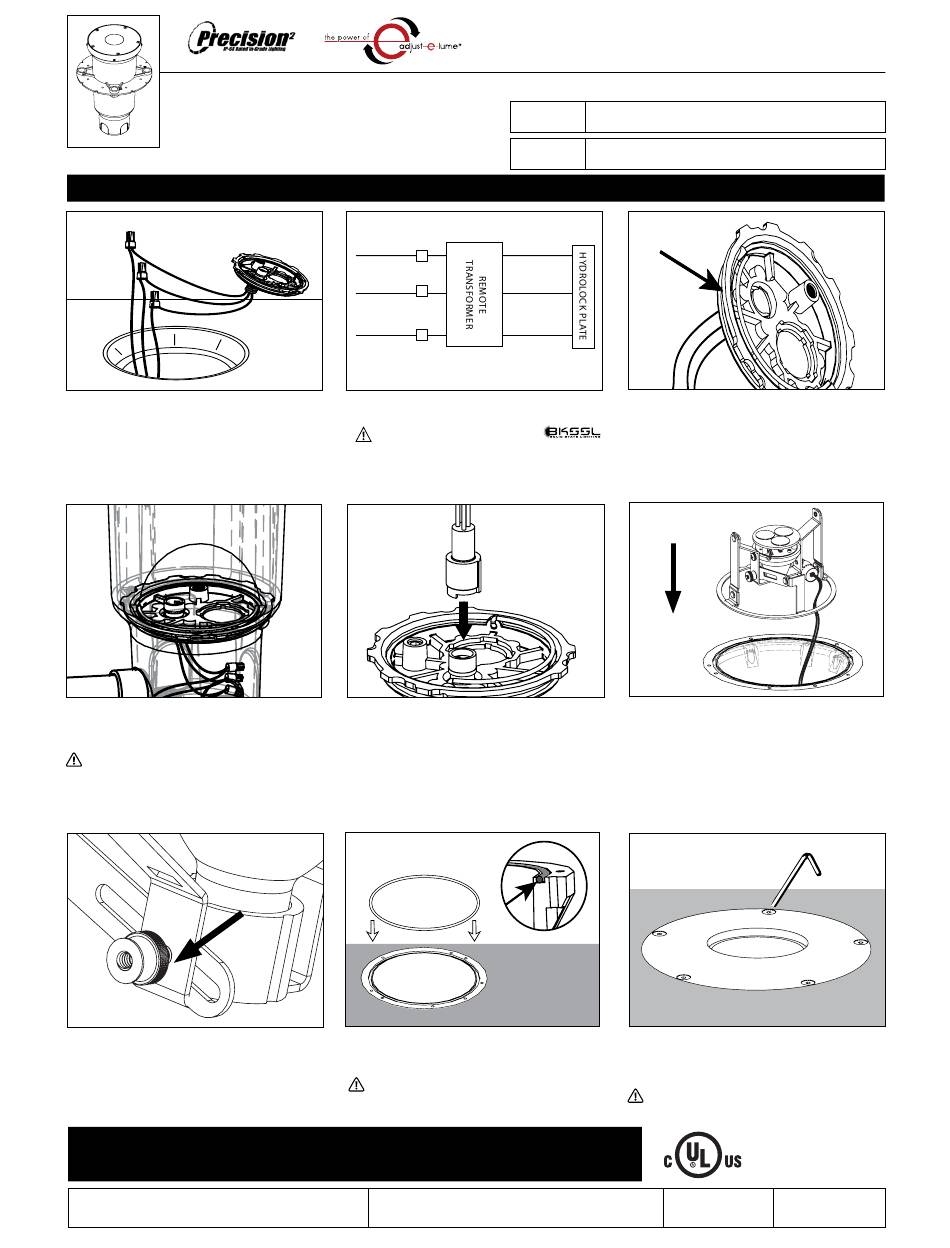

Installation

1. Remove temporary cover. Make watertight
connections using waterproof wire connectors
(provided) to leads on the bottom of Patented
HydroLock® Barrier Plate Assembly. See wiring
diagram.
3. Turn HydroLock® Barrier Plate clockwise ¼" to
lock.
Patented HydroLock® Barrier Plate must be
completely seated to ensure proper seal or
water may intrude. This step must be done
as stated or you will void your warranty.
6. Aim vertically by turning the thumbscrew on
OptiLock® assembly.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
Deep Housing - Standard Solid State LED
with
TECHNOLOGY
12V
LINE
COM
COM
GROUND
GROUND
WIRING DIAGRAM
LED - For use with 12VAC
remote transformer or
transformers only. B-K Lighting cannot
guarantee performance with third party
manufacturers' transformers.
4. Connect OptiLock® assembly to Patented
HydroLock® Barrier plate with quick disconnect.
7. Remove any dirt or debris in O-ring groove near
top of housing. Place O-Ring inside of groove.
Failure to clean groove of debris will cause
fixture to fail and void product warranty.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
TECHNOLOGY
PROJECT:
TYPE:
2. Wipe inside of housing where HydroLock® plate
will sit clean of debris before inserting patented
HydroLock® plate on to junction box. Align
HydroLock® plate with pins in housing and seat
magnetic
it firmly in place.
5. Place OptiLock® in HP2 housing and align
keyhole notch under one of (3) #8 screw heads.
Rotate horizontally to desired aiming position,
then tighten (2) #8 Phillips screws using Phillips
screwdriver.
8. Install faceplate using 1/8" Allen wrench and
hand-tighten the faceplate screws in a star
pattern to 30 in-lbs. min.
Do not use a power tool to install screws. Do
not exceed 40 in-lbs.
RELEASE DATE
12-7-16
HP SERIES
2
REFERENCE NUMBER
INS-2375-00
