B-K lighting Precision2 HP2 Series Installation Instructions Manual page 4

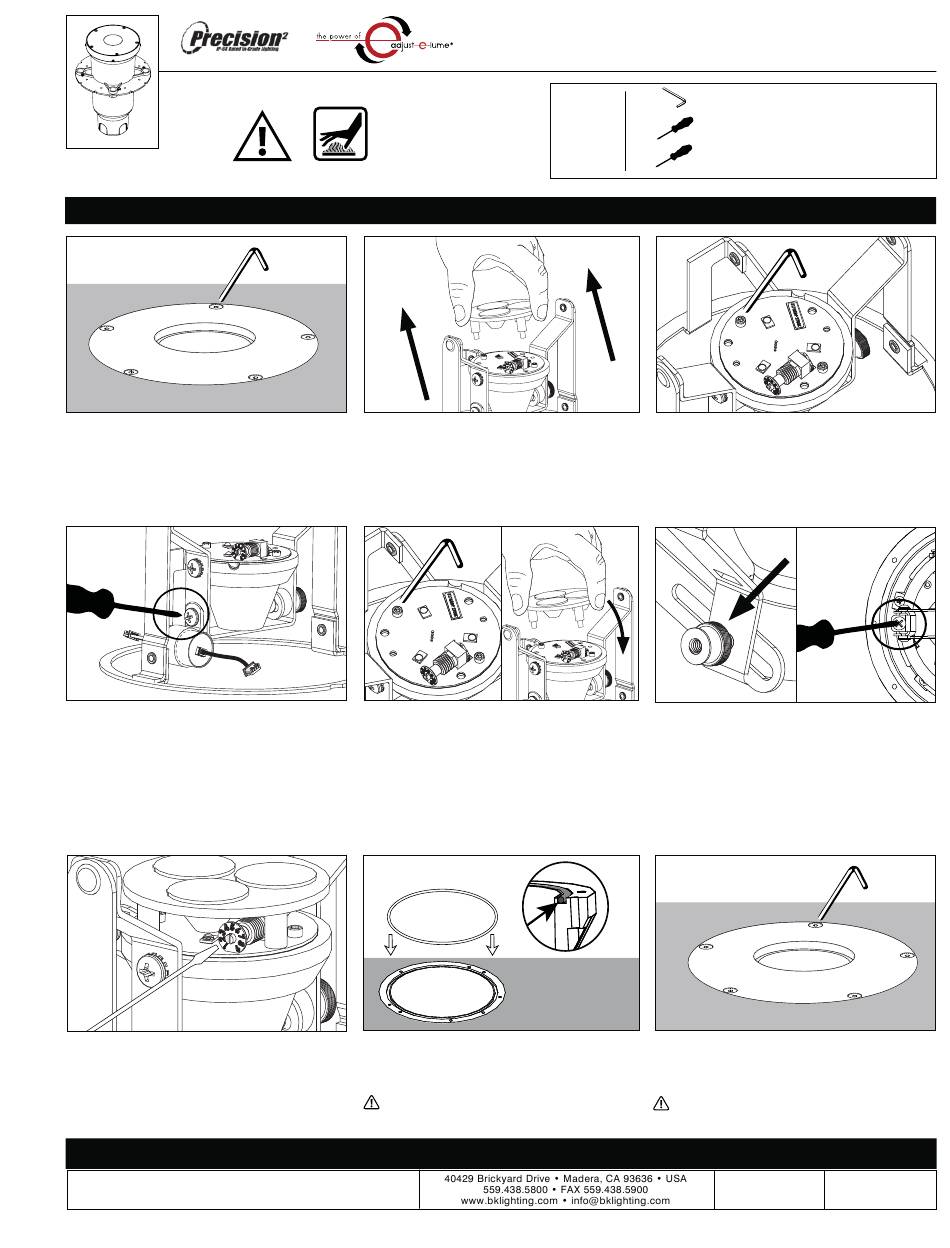

Relamping and Optic Replacement
Warning
Relamping and/or Optic Replacement if Required for Solid State LED
1. Remove faceplate using 1/8" Allen wrench.
4. Use Phillips screwdriver to loosen #8-32 Phillips
screw on driver bracket on OptiLock®. Disconnect
driver from fixture via quick disconnect. Replace
old driver. Place new driver in bracket, then
tighten #8-32 Phillips screw to secure new driver to
OptiLock®. Reconnect new replacement driver to
fixture and to LED board via quick disconnects.
8. With flat head screw driver rotate Adjust-e-Lume®
dial to desired lumen output.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
with
TECHNOLOGY
Hot Surface
2. Space three fingers evenly around the optic and
gently rock optic to remove.
5. Secure LED board to heatsink by tightening two (2)
#2-56 screws on LED board using 5/64" Allen wrench.
Carefully snap optics back into tabs on LED board.
9. Remove any dirt or debris in O-ring groove near top
of housing. Place O-Ring inside of groove. Clean
lens if needed.
Failure to clean groove of debris will cause fixture
to fail and void product warranty.
HP
TOOLS
1/8" Allen Wrench
NEEDED:
Phillips Screwdriver
Small Flat Head Screwdriver
By Others
3. Use 5/64" Allen wrench to remove two (2) #2-56
screws on LED board. Grasp LED board gently and
expose quick disconnect. Disengage LED board from
driver assembly.
6. If OptiLock® Has Thumbscrew Aim: Aim vertically by
turning the thumbscrew on OptiLock® assembly.
7. If OptiLock® Has Tilt Assembly Aim: Aim vertically
by turning the #10 Phillips head screw on OptiLock®
assembly with Phillips screwdriver.
10. Install faceplate using 1/8" Allen wrench and hand-
tighten the faceplate screws in a star pattern to 30
in-lbs. min.
Do not use a power tool to install screws. Do not
exceed 40 in-lbs.
RELEASED
7-13-16
2 2
/ CO SERIES
Solid State LED
REFERENCE NUMBER
INS000012
