PowerMaster
Installation and Operating
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
The installation of this product should be carried out by a person knowledgable
in swimming pool plumbing requirements following the installation instructions
provided in this manual.
Please pass these instructions on to the operator of this equipment.

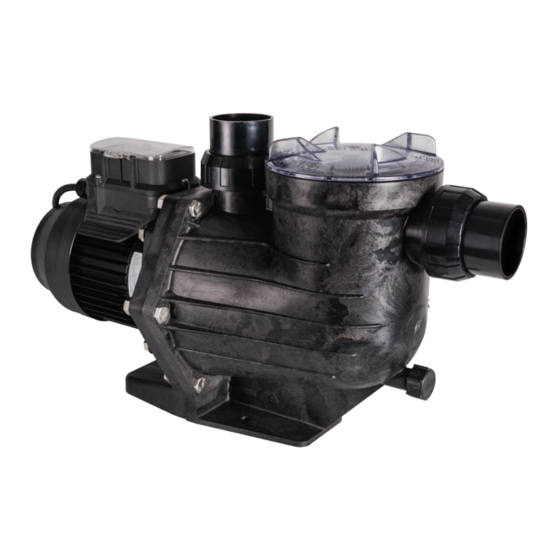

Swimming Pool
and Spa Pump
Model: PMECO
Instructions
ECO
®
Advertisement
Table of Contents
Related Manuals for Davey PowerMaster Eco PMECO
Summary of Contents for Davey PowerMaster Eco PMECO
- Page 1 PowerMaster ® Swimming Pool and Spa Pump Model: PMECO Installation and Operating Instructions WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. The installation of this product should be carried out by a person knowledgable in swimming pool plumbing requirements following the installation instructions provided in this manual.
- Page 2 Saving Energy with your Davey PowerMaster ECO-Series Pump: The Davey PowerMaster ECO Series Pool & Spa pump is an 8 Star super efficient pump utilising a very clever, state of the art 3 speed brushless DC motor that provides lower levels of noise, lower operating costs and lower greenhouse emissions than traditional pool pumps.
- Page 3 • Please consult your pool pump installation professional, Davey or your Davey dealer for advice on this function. While running at the lower speed settings you will also notice a significant reduction in pump noise.
-
Page 4: Technical Specifications
Technical Specifications: Model PMECO Eco Flow Speed – 1400 Mid Flow Speed – 2400 High Flow Speed – 2850 Enclosure Class (IP) Insulation Class Class B130 Insulation Voltage (VAC) 220-240 Supply Frequency (Hz) Run Current (A) Eco Flow - 155W / 0.2 hp Motor Input Power (W / hp) Mid Flow –... - Page 5 Power Connection Davey PowerMaster ECO is suitable for connection to a nominal 220-240 volt 50Hz power supply and are equipped with a flex and 3 pin plug. If a power outlet is not available within 3 metres of the pump, a 3 pin power point in a safe, dry place may need to be provided by an electrician.
- Page 6 Davey Water Products recommends that all installations are fitted with earth leakage or residual current protection devices. CAUTION: In the interest of safety, we advise that all brands and types of pool pumps must be installed in accordance with AS3000 wiring rules or equivalent.
-
Page 7: Pipe Connection
Pipe Connection A barrel union is provided for connecting to the piping from the pool. The barrel unions are designed to accept 40mm PVC on the ID or a 50mm PVC fitting on the OD. When plumbing the discharge pipe, ensure that the pipework does not interfere with the touchpad’s protective cover, which needs to fully open and close. - Page 8 • flow of water through the system. The Davey PowerMaster ECO Series motor has 3 speed settings, Eco Flow, Mid Flow and High Flow. It will always start on High Flow setting to aid priming and after 2 minutes will automatically revert to the last used speed setting.
- Page 9 • Eco Flow mode provides the lowest speed and therefore the greatest energy savings. • For programmable speed options and settings, please contact your pool pump installation professional, Davey or your Davey dealer. Operation Recommended Speed Settings Pool Filtration ECO Flow...
- Page 10 Using your PowerMaster 3 Speed pump with a Davey Salt Water Chlorinator: Davey ChloroMatic and EcoSalt salt water chlorinators require a minimum flow rate of 80 litres per minute (lpm) through the chlorinator cell for best efficiency and cell life. Please refer to the performance graph below as a reference for the flow in your pool and refer to the pressure indicated by the gauge on the filter.
- Page 11 Mid setting should be ample for most cleaners but if the cleaner requires better performance, activate the High Flow setting. Eco Flow can be used to run a Davey Suction pool cleaner, but it is recommended that Mid Flow is used.
-
Page 12: Troubleshooting
PowerMaster, contact the supplier from whom the pump was purchased or your nearest Authorised Davey Pool Equipment Service Centre. If any further assistance is required, contact the Davey Customer Service Centre at the address indicated in this manual. - Page 13 Lockout codes Blinks Fault Cause Micro controller failure Micro controller is continually rebooting. Mains under voltage The mains voltage has dropped below 180 volts AC running. NOTE: If this fault is active, the controller will reboot after voltage comes above 209 volts AC for at least 6 seconds.
-
Page 14: Water Quality
Removal of the Pump from Pipework Should it be necessary to remove the pump, follow these instructions: 1. Switch off the power and remove the plug from the power source. NOTE: If the pump is wired into a time clock or another automatic control, the wiring should be removed by a qualified technician. - Page 15 POWER CONNECTIONS AND WIRING MUST BE CARRIED OUT BY AN AUTHORISED ELECTRICIAN. DANGER - Hazardous suction. Do not block water entry into filtration system with any part of your body as the pressure can trap hair or body parts, causing severe injury or death. Do not block suction. Turn off pump immediately if someone becomes trapped.
- Page 16 To the fullest extent permitted by law Davey disclaims any warranties regarding the accuracy, completeness or reliability of App data. Davey is not responsible for any direct or indirect loss, damage or costs to the User arising from its reliance on internet connectivity.
