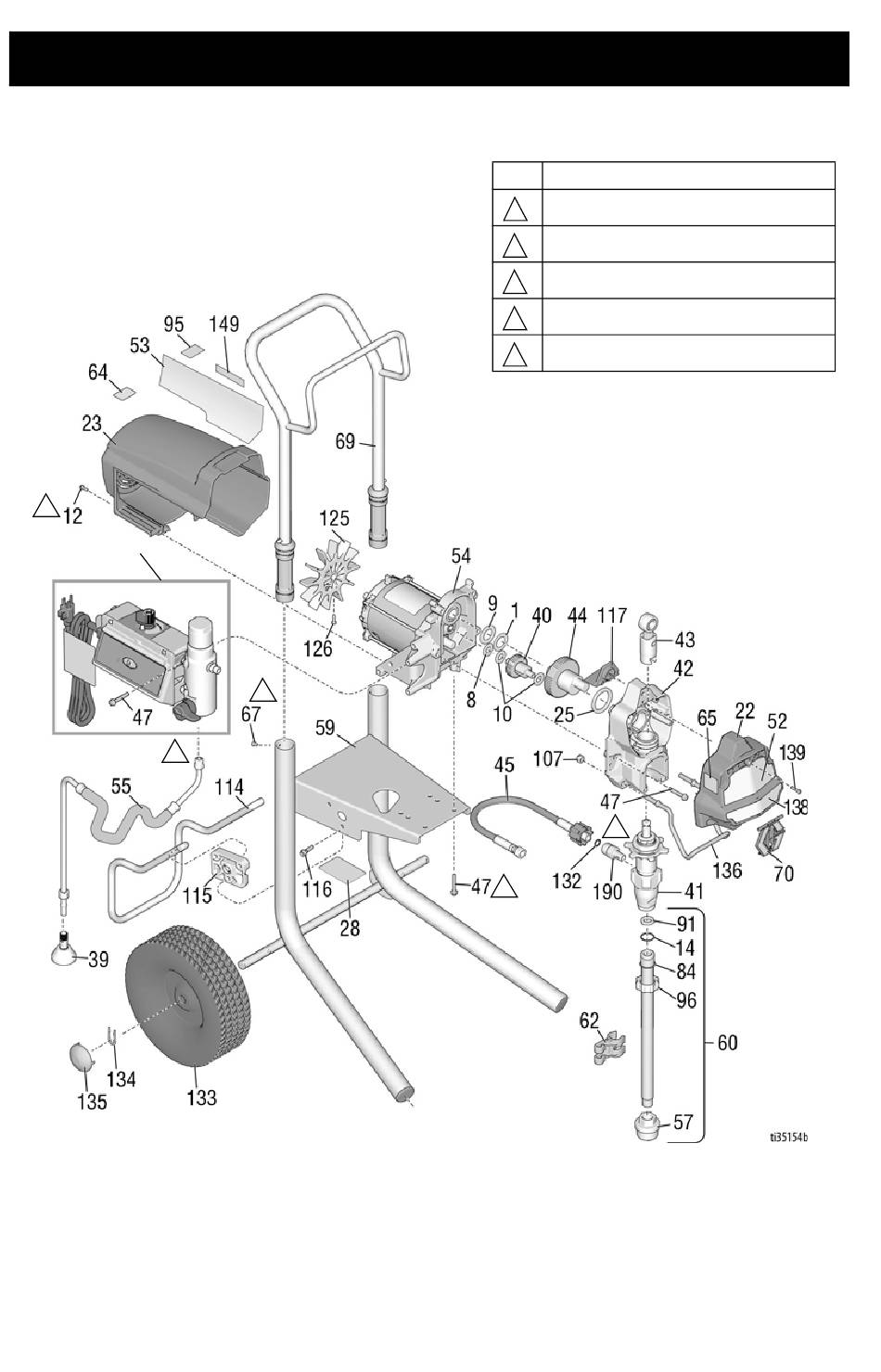

490/495/595/395Eu Hi-Boy Sprayers - Graco Ultra MAX II 490 PC Pro Operation, Parts

490/495/595/395EU Hi-Boy Sprayers

490/495/595/395EU Hi-Boy Sprayers
3
See page 50.
5
44
2
Ref. Torque
140-160 in-lb (15.8 - 18.1 N•m)
1
30-35 in-lb (3.4 - 4.0 N•m)
2
23-27 in-lb (2.6 - 3.0 N•m)
3
Hammer tight
4
25-30 ft-lb (33.9 - 40.7 N•m)
5
4
1
3A6491E
