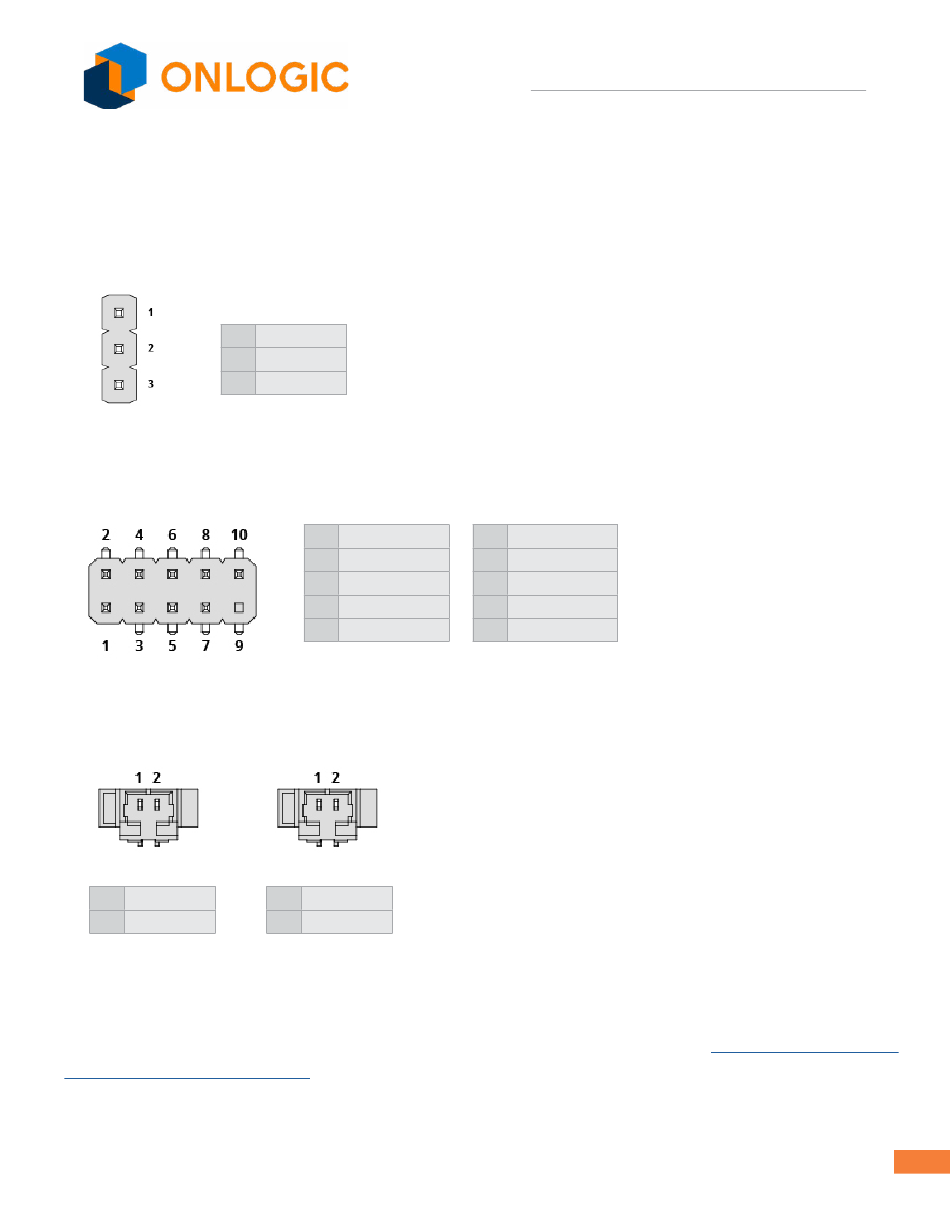

J23_Ambient Header
The J23_AMBIENT connector provides System Management Bus (SM Bus) communication.
1
2
3
J12_USB
The J12_USB connector supports two USB ports.
XBT1_BATTERY and XBT2_BATTERY
Connect the system and backup batteries to the XBT1_BATTERY and XBT2_BATTERY connectors.
1 3V
2 GND

7 - UEFI

The IGN100 supports UEFI 64 bit only. UEFI updates can be downloaded directly from the system's product page at
http://www.onlogic.com/IGN100.
SMBus Clock
SMBus Data
GND
1 5V_USB
3 Data (Negative)
5 Data (Positive)
7 GND
9 Key
1 3V
2 GND
IGN100 Industrial Computer
2 5V_USB
4 Data (Negative)
6 Data (Positive)
8 GND
10 None
