Refer to the following diagrams for configuring jumpers and onboard headers.

6.2 - Configuring Jumpers

J1_BIOS
The J1_BIOS jumper loads the default BIOS settings. Short pins 2-3 for normal operation. Short pins 1-2 to
clear the CMOS and reset the system setup configuration to default settings. If you experience challenges
powering up, short pins 1-2 to troubleshoot.

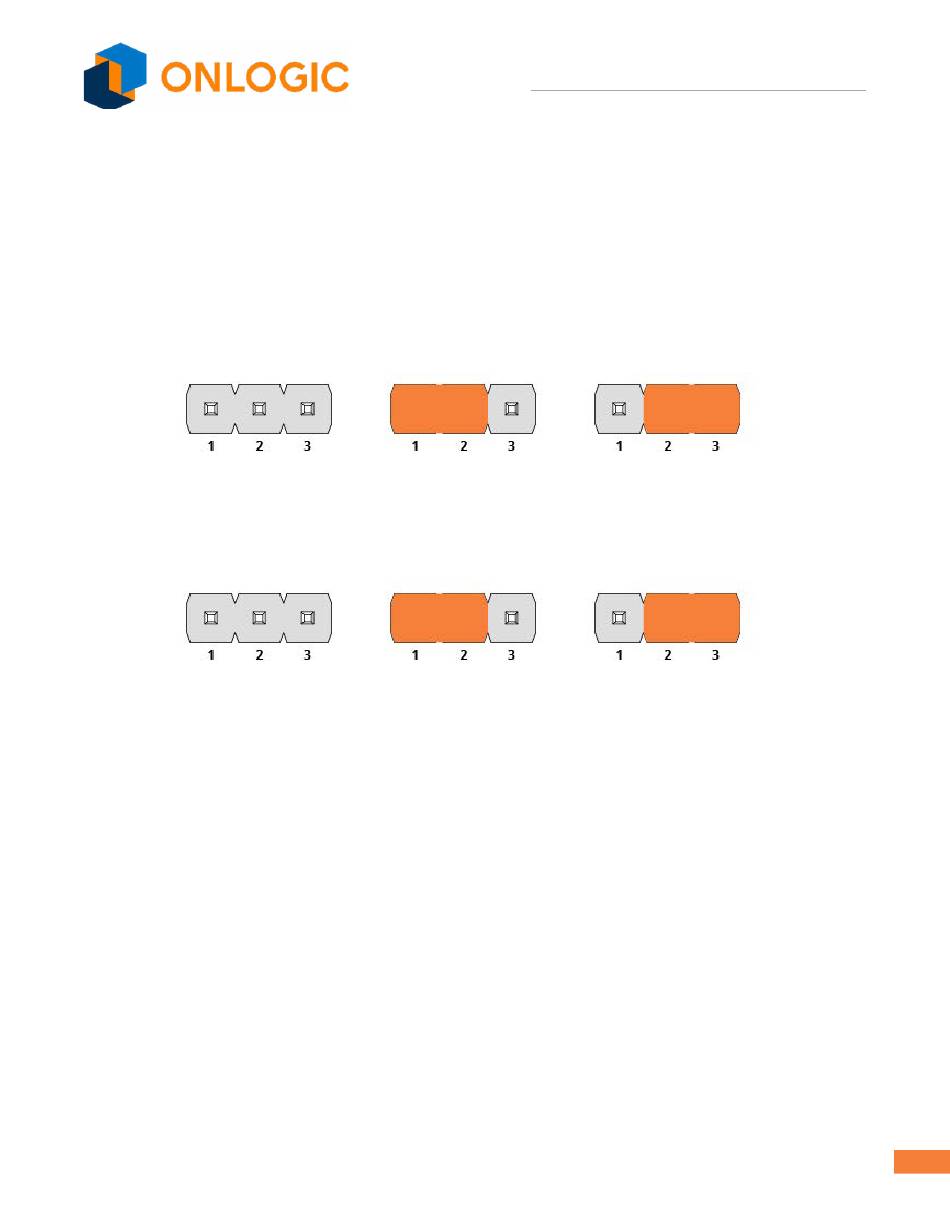

Clear CMOS Normal
J13_AT_ATX
AT = Auto power on.
ATX = No auto power on.
AT Mode ATX Mode
