R5
Series
3.After fixing the cover at the AC output wire terminal with screws, tighten up the
AC waterproof nut.

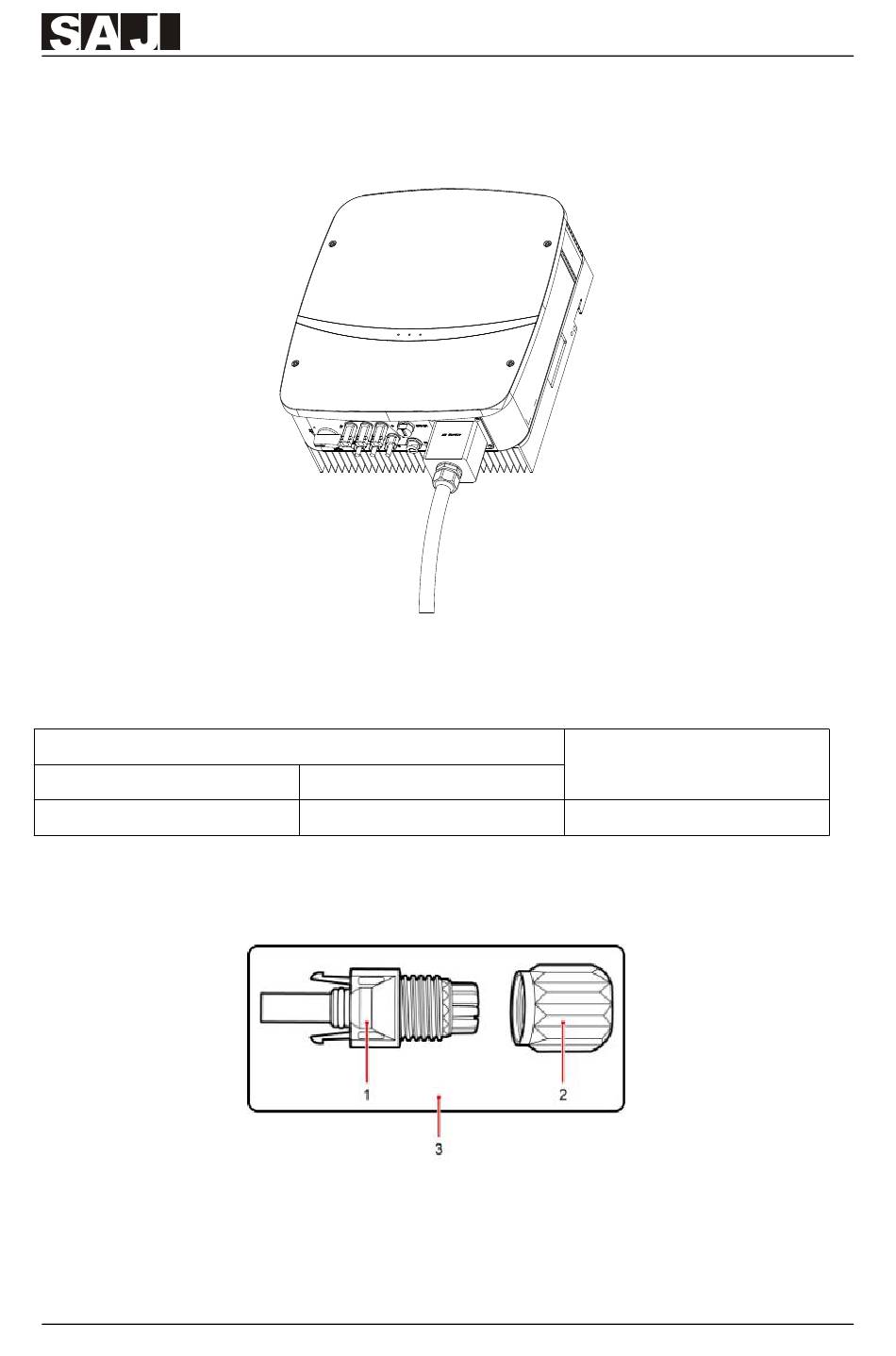

Fig. 5.11 Tighten up AC interface protective cover and the locker
5.4 DC Side Connection
Cross-sectional Area of Cables（mm²）
Outside Diameter of the Cables
（mm）
Scope
Recommended Value
4.0-6.0
4.0
4.2~5.3
Table5.4 Recommended Specifications of DC Cables
DC connector is made up of the positive connector and the cathode connector
Figure 5.12 Positive Connector
1. Insulated Enclosure
2. Lock Screw
3. Positive Connector
- 31 -
