Chapter 6 Debugging Instructions

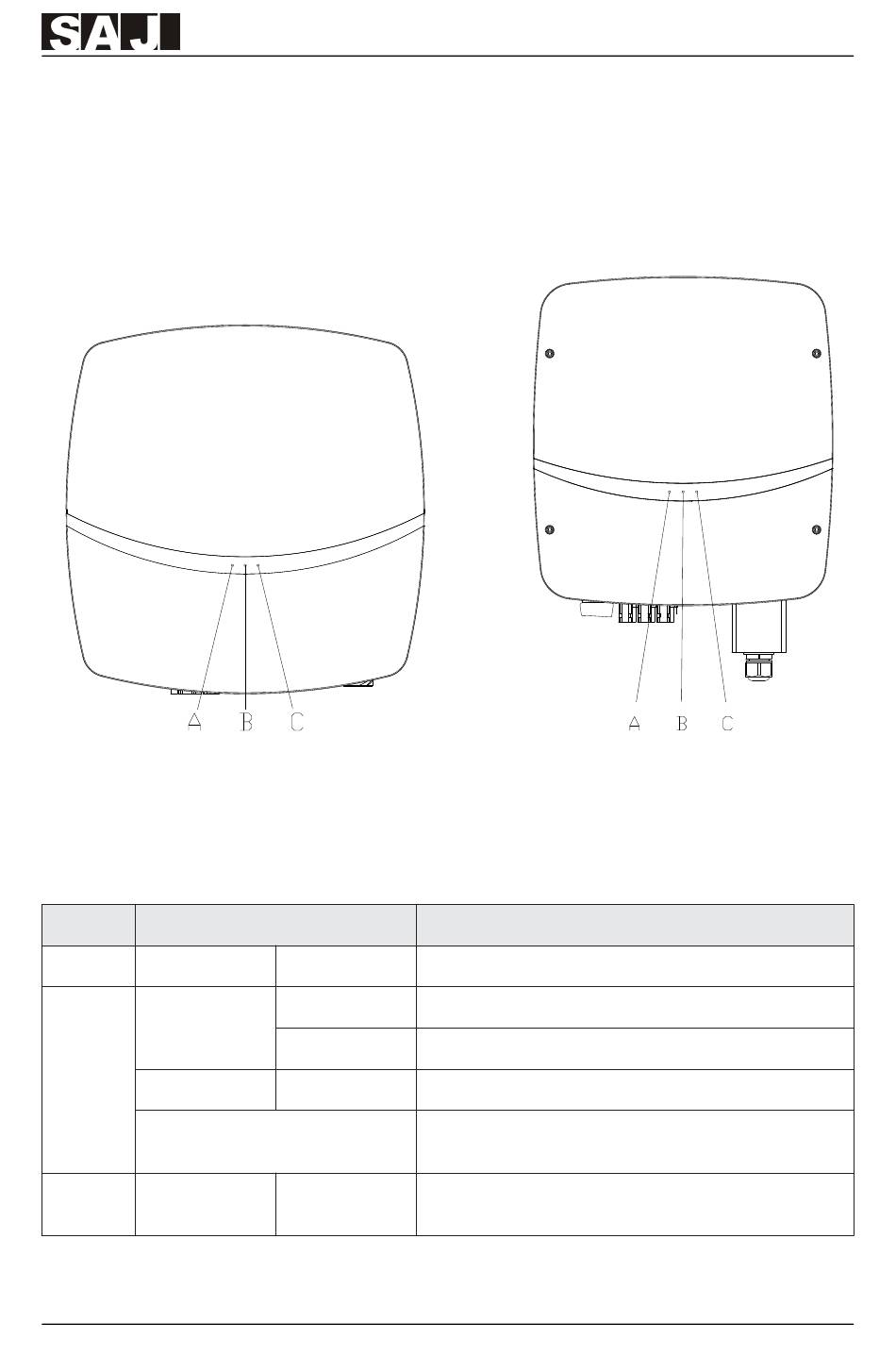

6.1 Introduction of Human-computer Interface

A-Power indicator light B-System status light C-Communication lamp
LED lamps state
指示灯
A Yellow
Green
B
Red
Green lamp and red lamp 0.5
s/time flickering in alternative
C Blue
Figure 6.1 Human-computer Interface
Always light on The inverter is just on power.
Flicker: 1 s/time The inverter is in the initialization or waiting state.
Always light on The inverter is in normal grid-connected state.
Always light on Faults inside the inverter.
Software is upgrading in the inverter.
There is communication in data interaction form
Flicker
outside the inverter.
Table 6.1 Interface description
- 36 -
R5
Description
Series
