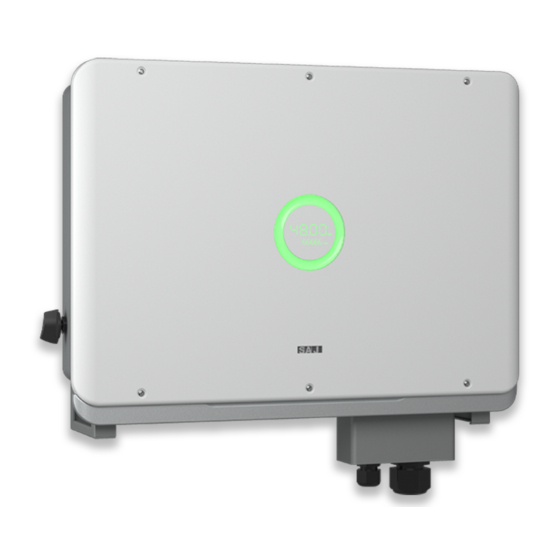

SAJ R6 Series User Manual
Rooftop solar inverter
Hide thumbs
Also See for R6 Series:
- User manual (58 pages) ,
- User manual (32 pages) ,
- User manual (31 pages)
Advertisement
Quick Links
GUANGZHOU SANJING ELECTRIC CO.,LTD
Tel: 400-960-0112
Fax: (86)20 66608589
Web: www.saj-electric.com
Add: SAJ Innovation Park,No.9, Lizhishan Road,Science City, Guangzhou High-tech Zone , Guangdong, P.R.China.
R6 series
ROOFTOP SOLAR INVERTER
R6-15-50K-T2/3/4-32
V0.4
kW
kWh
user manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SAJ R6 Series
Summary of Contents for SAJ R6 Series

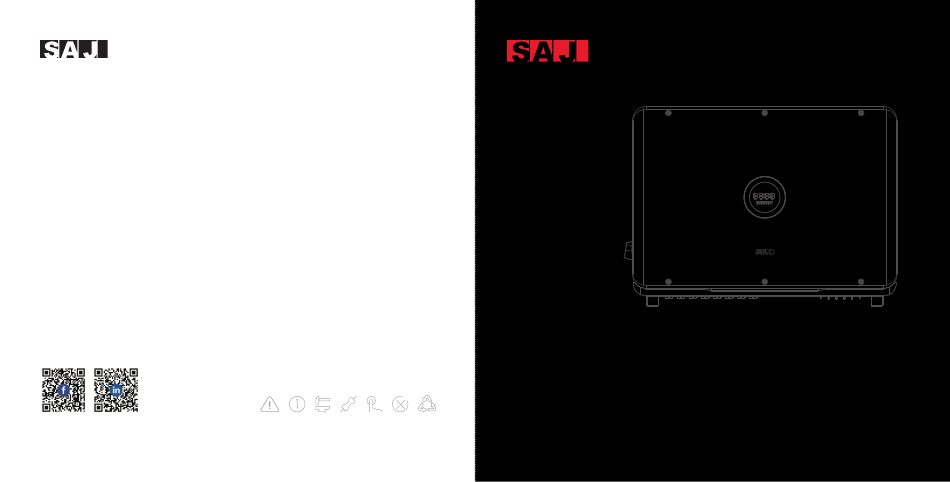

- Page 1 R6 series ROOFTOP SOLAR INVERTER user manual GUANGZHOU SANJING ELECTRIC CO.,LTD Tel: 400-960-0112 Fax: (86)20 66608589 Web: www.saj-electric.com R6-15-50K-T2/3/4-32 V0.4 Add: SAJ Innovation Park,No.9, Lizhishan Road,Science City, Guangzhou High-tech Zone , Guangdong, P.R.China.
- Page 4 ROOFTOP SOLAR INVERTER USER MANUAL 1.1 Scope of Application This User Manual describes instructions and detailed procedures for installing, operating, maintaining, and troubleshooting of the following SAJ on-grid inv ers: R6-15K-T2-32, R6-17K-T2-32, R6-20K-T2-32, R6-22K-T2-32, R6-25K-T2-32 R6-25K-T3-32, R6-30K-T3-32, R6-33K-T3-32, R6-36K-T3-32， R6-36K-T4-32...
- Page 7 ROOFTOP SOLAR INVERTER USER MANUAL for Product Model 659.4 mm 240.0 mm R6 – XK – TX – 32 ① ② ③ ④ ① R6 represents for product name. ② XK represents rated power XkW of inv er, for example 4K means 4kW. ③...
-
Page 8: Data Sheet
ROOFTOP SOLAR INVERTER USER MANUAL 2.3 Datasheet R6-15K/17K/20K/22K/25K-T2-32 Model R6-15K-T2-32 R6-17K-T2-32 R6-20K-T2-32 R6-22K-T2-32 R6-25K-T2-32 Model R6-15K-T2-32 R6-17K-T2-32 R6-20K-T2-32 R6-22K-T2-32 R6-25K-T2-32 Input (DC) Anti-islanding Protection Max. PV Array Power [Wp]@STC 22500 25500 30000 33000 37500 AFCI Protection Optional Max. Input Voltage [V] 1100 Interface MPP Voltage Range [V]... - Page 9 ROOFTOP SOLAR INVERTER USER MANUAL R6-25/30K/33K/36K-T3-32, R6- 36K/ 40K/ 50K-T4-32 Model Model R6-25K-T3-32 R6-30K-T3-32 R6-33K-T3-32 R6-36K-T3-32 R6-36K-T4-32 R6-40K-T4-32 R6-50K-T4-32 R6-25K-T3-32 R6-30K-T3-32 R6-33K-T3-32 R6-36K-T3-32 R6-36K-T4-32 R6-40K-T4-32 R6-50K-T4-32 Input (DC) Anti-islanding Protection Max. PV Array Power [Wp]@STC 37500 45000 49500 54000 54000 60000 75000 AFCI Protection...
- Page 11 Please ensure the Rear Panel mount tightly. 4-Φ8 Figure 3.3 To make sure the installation spot is suitably ventilated, if multiple SAJ on-grid solar inv Dimensions of rear panel of are installed same area. R6-15K/17K/20K/22K/25K-T2-32 30CM...
- Page 12 ROOFTOP SOLAR INVERTER USER MANUAL (2) Drill Holes and Place the Expansion Tubes (3) Secure the Screws and the Rear Panel Drill 4 holes in the wall (in conformity with position marked in Figure 3.5 & Figure 3.6), and The panels should be secured onto the mounting position by screws as shown in Figure 3.7. then place expansion tubes in the holes using a rubber mallet.
- Page 15 ROOFTOP SOLAR INVERTER USER MANUAL B D E AC Connection Cross-sectional area of cables（mm²） Type Scope Recommended value R6-15K/17K/20K/22K/25K-T2-32 10.0-16.0 16.0 R6-25K/30K/33K/36K-T3-32 16.0-35.0 25.0 Table 4.2 R6-36K/40K/50K-T4-32 16.0-35.0 25.0 Recommended power grid connecting Figure 4.2 Electrical int ace of If the grid-connection distance is too far, please select AC cable with larger diameter as per R6-25K/30K/33K/36K-T3-32 the actual condition.
