Element 9 Manual
MAINTENANCE AND SERVICING
Remove the plug before carrying out any adjustment, servicing or maintenance. Keep the machine clean.
Never use a saw blade that is damaged or distorted.
Replaced the saw blade when it becomes blunt. For service and replacement pieces see the part list and manufacturer
address. Inspecting the safety cover to assure that it is in good condition and that it moves smoothly. Never use the tool
unless the safety cover operates properly, and it is in good operating condition.
After operation of the tool has been completed, make sure power plug has been removed from the receptacle and store it in
a secure place out of the reach of children.
Periodically remove chips in the dust cover and dust from the surface of the power tool with a damp cloth. Keep the tool from
contact with water or oil.
If the replacement of the supply cord is necessary, this must be done by the manufacturer or his agent in order to avoid a
safety hazard.
LUBRICATION

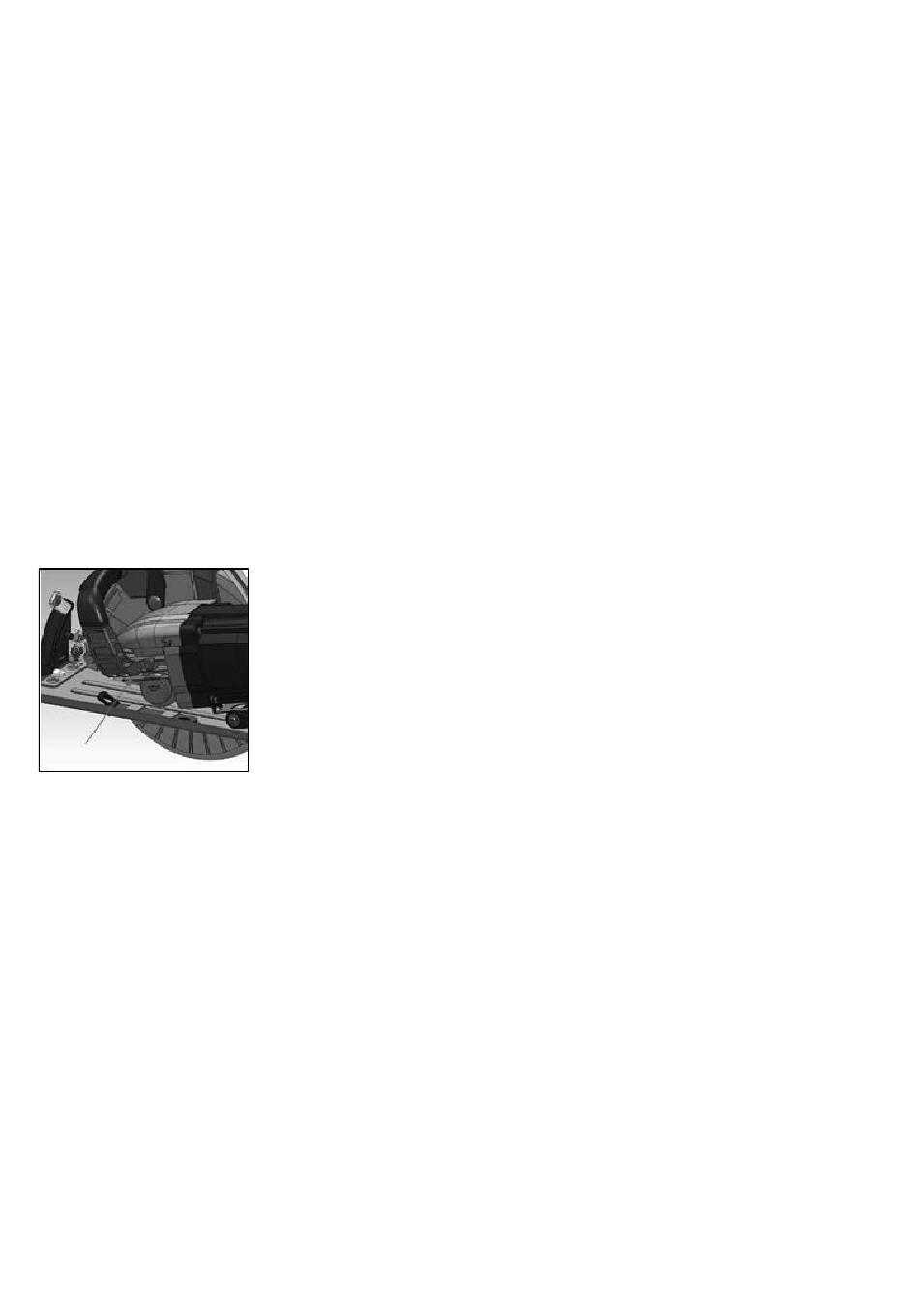

See Figure 24
This tool has been properly lubricated and is ready to use. The recommended grease: Mobil HD 85W/140 Oil.
Add the oil
Check oil level of the gear case once a year. Follow the below procedure to check and fill the oil. Unplug and power off the
tool. Place the saw on a horizontal position. Use the 5mm hex wrench to loosen the screw and removing the oil plug. using
a small funnel (spout size is less than 5mm) Take care! Make sure to evacuate the air out in order to fill enough oil, that
fills the oil tank, approximately 1.3 oz (40cc) avoid spilling by visual checking. Please use "Mobil HD 85W/140" Oil. Fill the
gear case, replace the oil plug with a 5mm hex wrench, do not over tighten. The O-ring under the head should be
compressed slightly, over tightening will cause the o-ring to unseat and not seal properly.
Original instructions
Fig.24.
16
Nov 2019
