Element 9 Manual
Model Number Element 9/1, Element 9/3
This machine (Serial Number ...........................) is CE approved.
Tel: +44 (0) 114 2212 510
Email: info@rotabroach.co.uk
Original instructions
METAL CUTTING SAW
Rotabroach Ltd
Burgess Road
Sheffield, South Yorkshire
United Kingdom
S9 3WD
1
Nov 2019
Fax: +44 (0) 114 2212 563
Website:
www.rotabroach.co.uk
Advertisement
Table of Contents
Related Manuals for Rotabroach ELEMENT 9 Series
Summary of Contents for Rotabroach ELEMENT 9 Series

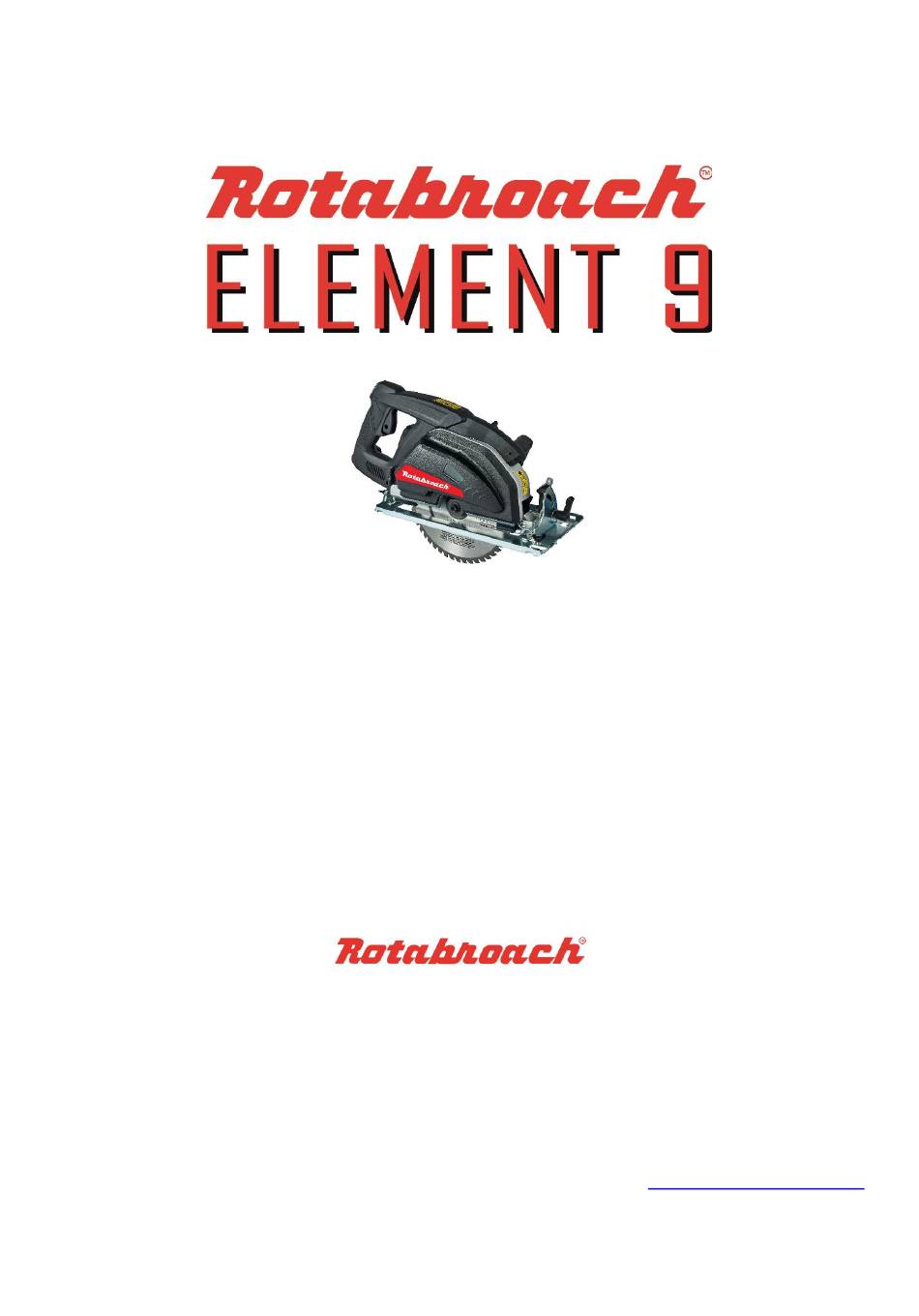

- Page 1 Element 9 Manual Original instructions Nov 2019 METAL CUTTING SAW Model Number Element 9/1, Element 9/3 This machine (Serial Number ......) is CE approved. Rotabroach Ltd Burgess Road Sheffield, South Yorkshire United Kingdom S9 3WD Tel: +44 (0) 114 2212 510 Fax: +44 (0) 114 2212 563 Email: info@rotabroach.co.uk...
- Page 2 Element 9 Manual Original instructions Nov 2019 Thank you for purchasing our Element 9 Circular Saw. We would really like your feedback on this machine. Other Products by Rotabroach: Thank you for your purchase...
-
Page 3: Table Of Contents
Element 9 Manual Original instructions Nov 2019 CONTENTS OF THE MANUAL Page Intended use General safety rules Information plate symbols Specification Operational safety procedures Operating instructions Extension cable selection Maintenance Parts List Machine breakdown Warranty statement... -
Page 4: Intended Use
Element 9 Manual Original instructions Nov 2019 1) INTENDED USE The metal cutting saw is powerful enough to cut steel sheet metal as thick as 12mm in box section. Metal cutting saws are designed to rapidly cut lengths or pieces of zinc coated, steel sheet metal and various metal without heating up either the blade or the material. -
Page 5: Information Plate Symbols
Element 9 Manual Original instructions Nov 2019 h) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. i) Do not use the power tool if the switch does not turn it on and off. -
Page 6: Specification
Element 9 Manual Original instructions Nov 2019 4)SPECIFICATION Rated voltage 110-120V~ 50/60Hz 220-240V~ 50/60Hz Rated input 1800W No load speed 2300min (RPM) Arbor 15.9mm Saw blade diameter 230mm(9" Arm-held vibration 6.75m/s2 k=1.5 Weight 9.5kg Max. cutting depth at 90 ﾟ 83mm Max. -
Page 7: Operational Safety Procedures
Element 9 Manual Original instructions Nov 2019 TIONAL SAFETY PROCEDURES 5) OPERATIONAL SAFETY PROCEDURES DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle. If both hands are holding the saw, they cannot be cut by the blade. Do not reach underneath the workpiece. - Page 8 Element 9 Manual Original instructions Nov 2019 Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback. Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
- Page 9 Element 9 Manual Original instructions Nov 2019 ADDITIONAL SAFETY RULES OF METAL CUTTING SAWS CAREFULLY READ THE FOLLOWING SAFETY WARNINGS PRIOR TO CONNECTING THE METAL CUTTING SAW TO POWER. You must keep the safety device in the fixed position, and work according to the manual. Never wedging or binding the saw. Before using the metal cutting saw, you must check all safety warnings.
-
Page 10: Operating Instructions
Element 9 Manual Original instructions Nov 2019 6) OPERATING INSTRUCTIONS ASSEMBLY AND ADJUSTMENT INSTRUCTIONS WARNING: For your own safety, never connect the plug to a power source outlet until all assembly steps are complete and you have read and understood the safety and operating instructions. The safety cover is attached to the saw for your protection. Should the safety cover become damaged, do not use the saw until damaged cover has been replaced, by a new cover. -
Page 11: Cutting Depth Adjustment
Element 9 Manual Original instructions Nov 2019 direction. Move out the HEX wrench and open wrench, then open the lower Blade guard to move over the arbor screw, flange and blade in turn Put on the new blade, flange and arbor screw in proper order. Use the open wrench to hold the flange and use the Hex wrench to fix the arbor screw by clockwise direction Note: Put the blade in right direction, the arrow on blade must be same direction as arbor turn CUTTING DEPTH ADJUSTMENT... - Page 12 Element 9 Manual Original instructions Nov 2019 Usage for bevel Release the lock lever "A", and the wing nut "B". Then to change the bevel plate angle from 0∘to 45∘ Fix the lock lever "A" and wing nut "B" as fig.7. WARNING : please be sure to disconnect the power plug.
- Page 13 Element 9 Manual Original instructions Nov 2019 Adjusting the laser: Tighten or loose the (A), for adjusting the laser indication direction. Adjusting tooling: M2 Hex wrench (A) as Fig.11. Adjusting the laser indication direction to be same line as cutting line. Adjusting tooling: parallel screwdriver (A) Fig.12 3.Adjust the laser line (B) on the notch (C) then set up the bevel scale at 0 positions as fig 13 Fig.10.
- Page 14 Element 9 Manual Original instructions Nov 2019 OVERLOAD PROTECTION Under extreme overload, the current consumption may considerably exceed the permissible nominal value. In this case, overload protection prevents the motor from burning out. The saw has a reset button(A) that will restart the motor after it shuts off due to extreme overload, if the motor stops during operation, turn the ON/OFF switch to the OFF position.
-
Page 15: Extension Cable Selection
Element 9 Manual Original instructions Nov 2019 7) EXTENSION CABLE SELECTION Note: Make sure the proper extension cord is used and is in good condition. The use of any extension cord will cause loss of power. To keep this to a minimum and prevent overheating and motor burnout, use the information below to deter-mine the minimum wire size extension cord. - Page 16 Element 9 Manual Original instructions Nov 2019 MAINTENANCE AND SERVICING Remove the plug before carrying out any adjustment, servicing or maintenance. Keep the machine clean. Never use a saw blade that is damaged or distorted. Replaced the saw blade when it becomes blunt. For service and replacement pieces see the part list and manufacturer address.
-
Page 17: Parts List
Element 9 Manual Original instructions Nov 2019 9) PARTS LIST Ref. No. Part No. Description. Qty. Ref. No. Part No. Description. Qty. Q230-001 SET FLUTE COVER Q230-082 BALL BEARING Q230-002 PIVOT Q230-083 ARMATURE ASS'Y Q230-003 GLASS Q230-084 BALL BEARING Q230-004 DUST COVER SET Q230-085 PAN HD SELF-TAP SCREW/WASHER... - Page 18 Element 9 Manual Original instructions Nov 2019 Q230-041 CROSS RECESSED SCREW Q230-120 BRACKET Q230-042 FLAT WASHER Q230-121 SOCKET SCREW Q230-043 CUSHION Q230-122 SCREW (SELF-TAPPING, CLAMP) Q230-044 WIRE CAP Q230-123 REAR RIGHT HANDLE Q230-045 BLADE GUARD PUSH LEVER Q230-124 POWER CORD Q230-046 AIR BAFFLE COVER Q230-125...
-
Page 19: Machine Breakdown
Element 9 Manual Original instructions Nov 2019 10) MACHINE BREAKDOWN... -
Page 20: Warranty Statement
11) WARRANTY STATEMENT Rotabroach™ warrants its machines to be free from faulty materials, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Rotabroach™or its designated...
