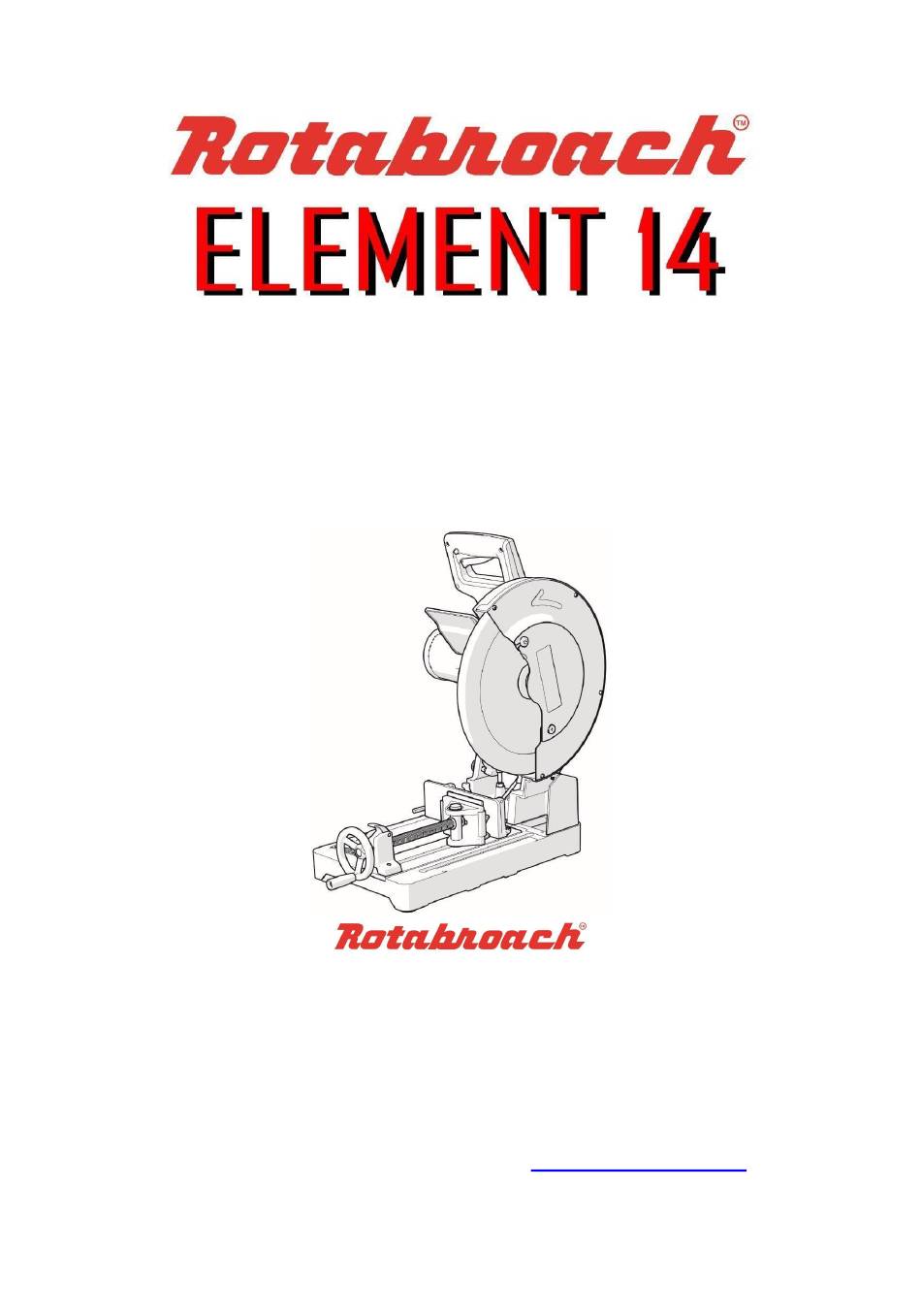

May 2020
Element 14 Manual
Original instructions
METAL CUTTING SAW
Model Number Element 14/1, Element 14/3
This machine (Serial Number ...........................) is CE approved.
Rotabroach Ltd
Burgess Road
Sheffield, South Yorkshire
United Kingdom
S9 3WD
Tel: +44 (0) 114 2212 510
Fax: +44 (0) 114 2212 563
Email: info@rotabroach.co.uk
Website:
www.rotabroach.co.uk
1
Advertisement
Table of Contents
Related Manuals for Rotabroach ELEMENT 14
Summary of Contents for Rotabroach ELEMENT 14
- Page 1 May 2020 Element 14 Manual Original instructions METAL CUTTING SAW Model Number Element 14/1, Element 14/3 This machine (Serial Number ......) is CE approved. Rotabroach Ltd Burgess Road Sheffield, South Yorkshire United Kingdom S9 3WD Tel: +44 (0) 114 2212 510 Fax: +44 (0) 114 2212 563 Email: info@rotabroach.co.uk...
- Page 2 May 2020 Element 14 Manual Original instructions Thank you for purchasing our Element 14 Chop saw. We would really like your feedback on this machine. Other Products by Rotabroach: Thank you for your purchase...
-
Page 3: Table Of Contents
May 2020 Element 14 Manual Original instructions CONTENTS OF THE MANUAL Page 1) Intended use 2) General safety rules 3) Additional Safety Instructions 4) Information plate symbols 5) Unpacking 6) Specification 7) Operating instructions 8) Extension cable selection 9) Maintenance... -
Page 4: Intended Use
WARNING: This product is a Hand Operated Chop Saw and has been designed to be used with special Rotabroach blades. Only use accessories designed for use in this machine and/or those recommended specifically by Rotabroach Power Tools Ltd. When fitted with an appropriate blade this machine can be used to cut:... - Page 5 May 2020 Element 14 Manual Original instructions with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce the risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
-
Page 6: Additional Safety Instructions
May 2020 Element 14 Manual Original instructions the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. General Power Tool Safety Warnings [Service] a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. - Page 7 May 2020 Element 14 Manual Original instructions l) Only use blades that comply with the characteristics specified in this manual. Before using accessories, always compare the maximum allowed RPM of the accessory with the RPM of the machine. Causes and operator prevention of kickback:...
-
Page 8: Information Plate Symbols
May 2020 Element 14 Manual Original instructions 4) INFORMATION PLATE SYMBOLS 1. Refer to the user manual for operational and safety issues with regard to this machine. 2. Dispose of the machine and electrical components correctly. 3. Eye protection must be worn when operating the machine. -
Page 9: Specification
May 2020 Element 14 Manual Original instructions 6)SPECIFICATION 110v 230v Motor Rating 1800w 2200w Voltage 230-240 Amperes Hertz (Cycles) 50-60 50-60 Phase Single 1500 Weight 28kgs Sound Pressure Level 108 dB(A) Sound Power Level 121 dB(A) Vibration Level 1.39 m/s²... -
Page 10: Operating Instructions
INSTALLING or REMOVING a BLADE WARNING: Only use genuine Rotabroach blades, or Rotabroach approved blades which are designed for this machine. Ensure that the maximum recommended blade speed of the blade is compatible with the machine. - Page 11 May 2020 Element 14 Manual Original instructions Fig.3 • Use the supplied hex key to loosen the arbor screw. (Fig. 4) Fig.4 Note: The arbor screw has a right-hand thread. Turn clockwise to tighten. Turn counter clockwise to loosen. • Remove the arbor screw, washer and outer blade flange and store safely for future installation.
- Page 12 May 2020 Element 14 Manual Original instructions CUTTING HEAD TRAVEL • Cutting Head Downward Travel Adjustment To prevent the blade from contacting any part of the machine’s metal base the downward travel of the cutting head can be adjusted. Lower the cutting head and check for any blade contact with the machine’s base.
- Page 13 May 2020 Element 14 Manual Original instructions Fig.9 • Reposition the rear vise jaw; there are three (3) possible positions available because of the six (6) threaded holes in the machine’s base. Replace lever handled locking screw and the socket headed screw into their new service positions. Ensure that all standard and locking washers are correctly positioned.
-
Page 14: Extension Cable Selection
May 2020 Element 14 Manual Original instructions • The machine’s base should be clean and free from any swarf or sawdust etc. before the workpiece is clamped into position. • Ensure that the ‘cut-off’ material is free to move sideways away from the blade when the cut is completed. -
Page 15: Maintenance
May 2020 Element 14 Manual Original instructions voltage, resulting in a loss of power and causing the motor to overheat. Use the information provided below to determine the minimum wire size required in an extension cord. Only round jacketed cords listed by Underwriter’s Laboratories approval should be used. -
Page 16: Machine Breakdown
May 2020 Element 14 Manual Original instructions 10) MACHINE BREAKDOWN... -
Page 17: Parts List
Element 14 Manual Original instructions Jan 2020 11) PARTS LIST Part No. Description Part No. Description Part No. Description PT0001 Screw M5x12 PT0056 Bearing 6201 PT0110 Moving Vice Jaw PT0002 Dust Filter PT0057 Gear II PT0111 Circlip 22 PT0003 Bearing Support Plate... -
Page 18: Trouble Shooting
Element 14 Manual Original instructions Jan 2020 12) TROUBLE SHOOTING Problem Probable Case Suggested Corrective Action Motor does not start 1.Fuse -15amp time delay fuse, or circuit breaker. 2.Brushes worn -See “Maintenance” section 3.Other -Check power supply for proper voltage and 4.Low voltage... -
Page 19: Warranty Statement
13) WARRANTY STATEMENT Rotabroach™ warrants its machines to be free from faulty materials, under normal usage of machines, for a period of 12 months from initial date of purchase. All other parts (excluding cutters) are under warranty for 90 days, provided that the warranty registration card (or online registration) has been completed and returned to Rotabroach™or its designated...
