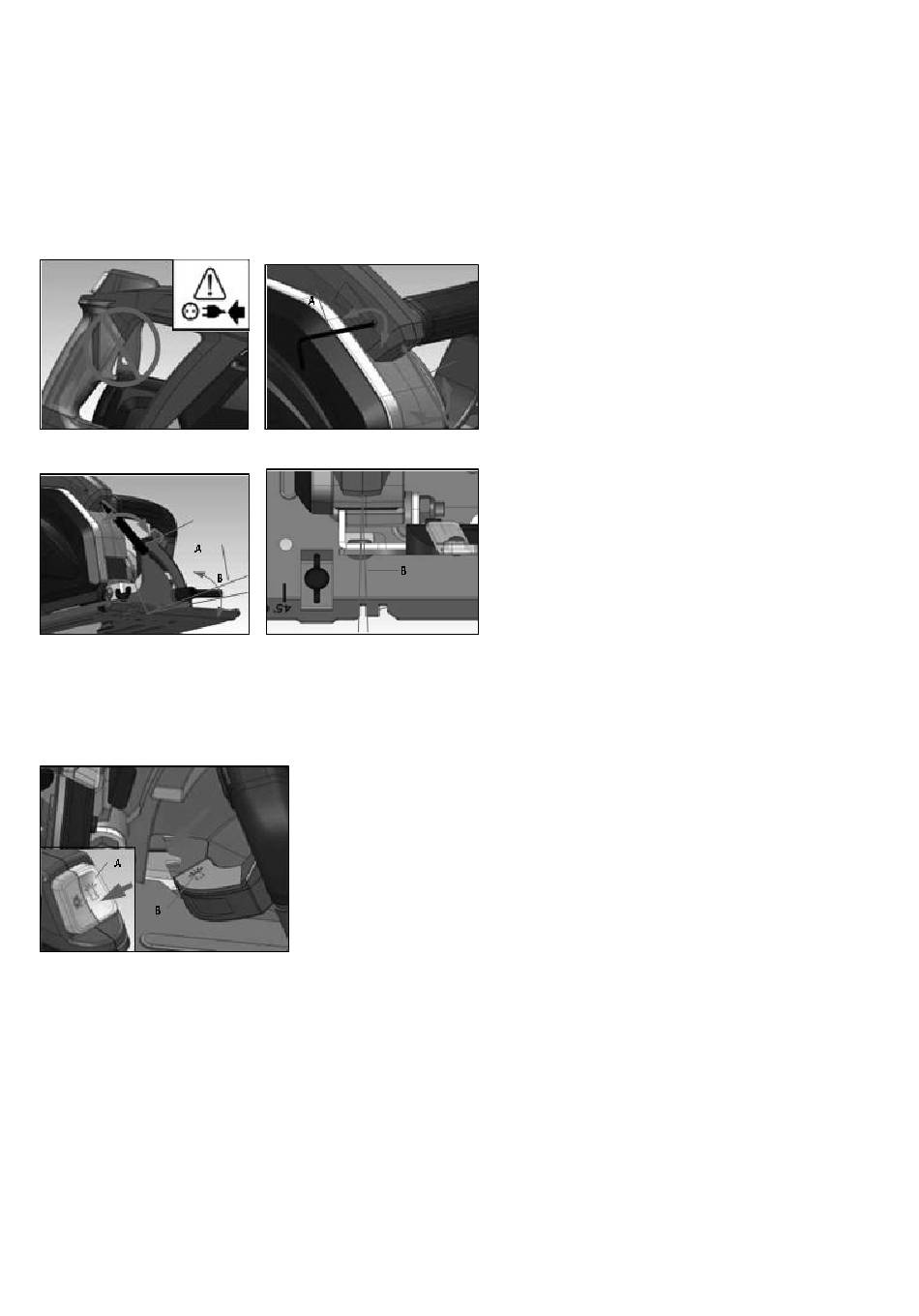

Adjusting the laser: Tighten or loose the (A), for adjusting the laser indication direction. Adjusting tooling: M2 Hex wrench
1.
(A) as Fig.11.
Adjusting the laser indication direction to be same line as cutting line. Adjusting tooling: parallel screwdriver (A) Fig.12
2.
3.Adjust the laser line (B) on the notch (C) then set up the bevel scale at 0 positions as fig 13
Fig.10.
Fig.12.
How to use LED light
‧Push the LED button(A) to start the LED light, push again to turn off, as fig 14.
Fig.14.
