Element 9 Manual

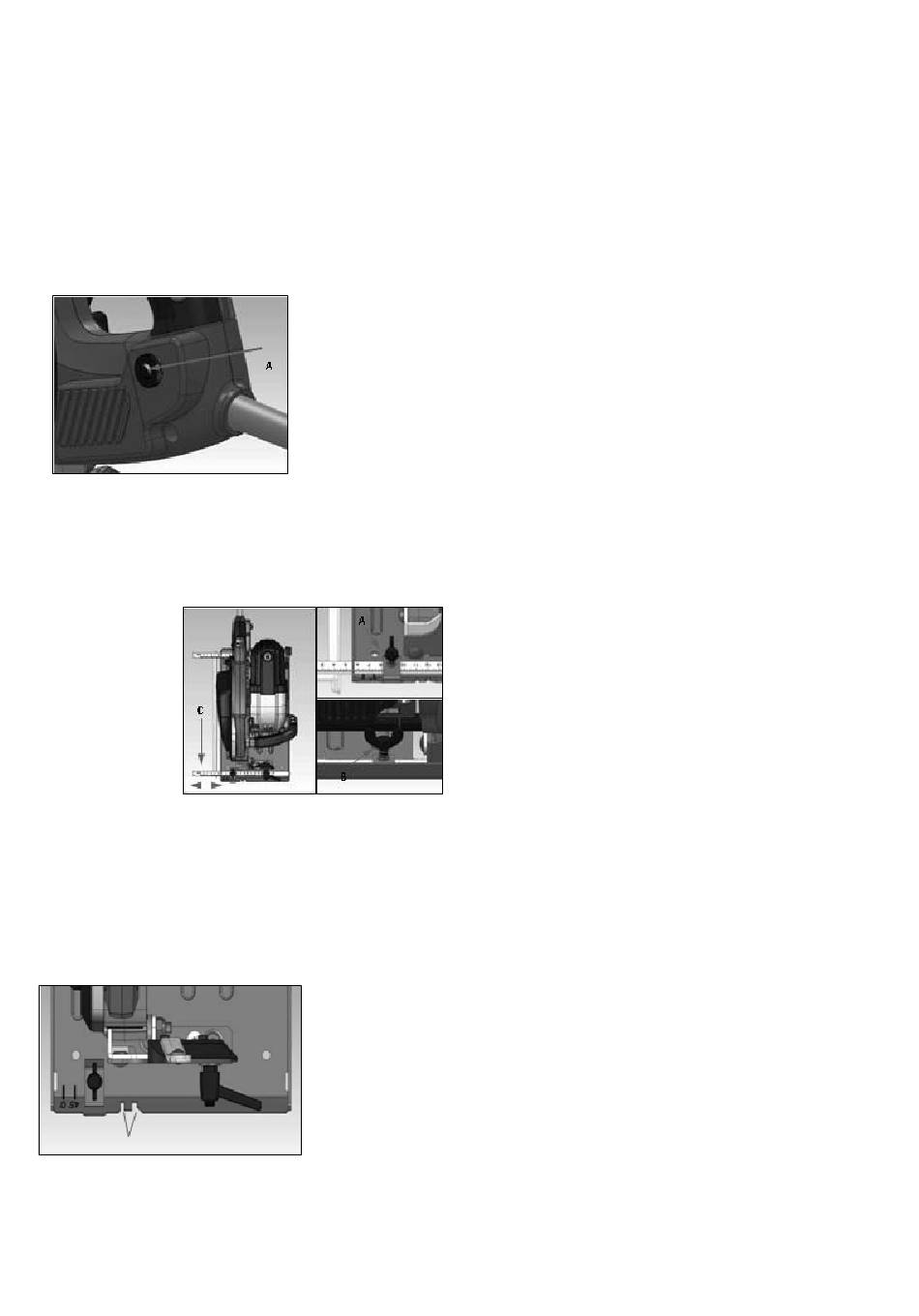

OVERLOAD PROTECTION
Under extreme overload, the current consumption may considerably exceed the permissible nominal value. In this case,
overload protection prevents the motor from burning out. The saw has a reset button(A) that will restart the motor after it
shuts off due to extreme overload, if the motor stops during operation, turn the ON/OFF switch to the OFF position.
Unplug the saw from its power source. Wait about three minutes for the motor to cool down. Push in on the reset button
and turn the switch to the on position. As shown in Fig. 19
Fig.19
THE GUIDE RULER
First to release the wing screw ( A) at front and (B) at rear, adjust the scale ruler( C )
to the position you need then fasten the (A) (B) wing screw then start for cutting
with guiding.Fig.20
TRIANGLE SHAPED SIGHTING NOTHCH BLADE SET-IN
Sighting notch (A) near the front of the base plate provide guidance. When performing free-hand cuts following a cutting line
as shown in Fig.21 When performing cuts, the cutting line for the saw blade can be observed via a triangle shaped sighted
notch at the front of base plate. Align the cutting line on the workpiece with the triangle shaped Sighting Notch at the front of
the Base Plate.
Push the saw toward the workpiece.
Fig.21.
Original instructions
Fig.20
14
Nov 2019
