Grill gazebo

Advertisement

IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.
Please check with your local governing authority / local municipal codes regarding installation of
structures before assembly.
Tools required (not included): Phillips screwdriver, hammer, 2 ladders that are at least 8.2 ft / 2.4 m in height, cordless
drill, socket, ratchet set (Metric), socket adapter and socket driver, carpenters' level.
WARNING:
Check to ensure all parts are present prior to assembly.
This unit is heavy! 5 adults are needed for safe assembly ---- Never assemble this alone!
Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of
the gazebo construction.
Keep assembly area more than 6 ft /1.8 m from any obstruction such as fence, garage, and house, overhanging branches,
laundry line or electrical wires.
Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to the product. Please read all instructions before assembly and
use.
For outdoor use only. Check all bolts for tightness before use and periodically check and tighten bolts as necessary.
Assemble this unit on firm, level ground or hard surface only. Ensure the unit is level after final assembly.
Protect parts during assembly by laying them on a non-abrasive surface such as blankets or cardboard.
Please do not return this product to the store. For technical assistance or replacement parts call Sunjoy from 8:30 AM to 5:30
PM Eastern Time at the following: 1-866-578-0101 (English, French & Spanish in US) or e-mail:
20 December 2013

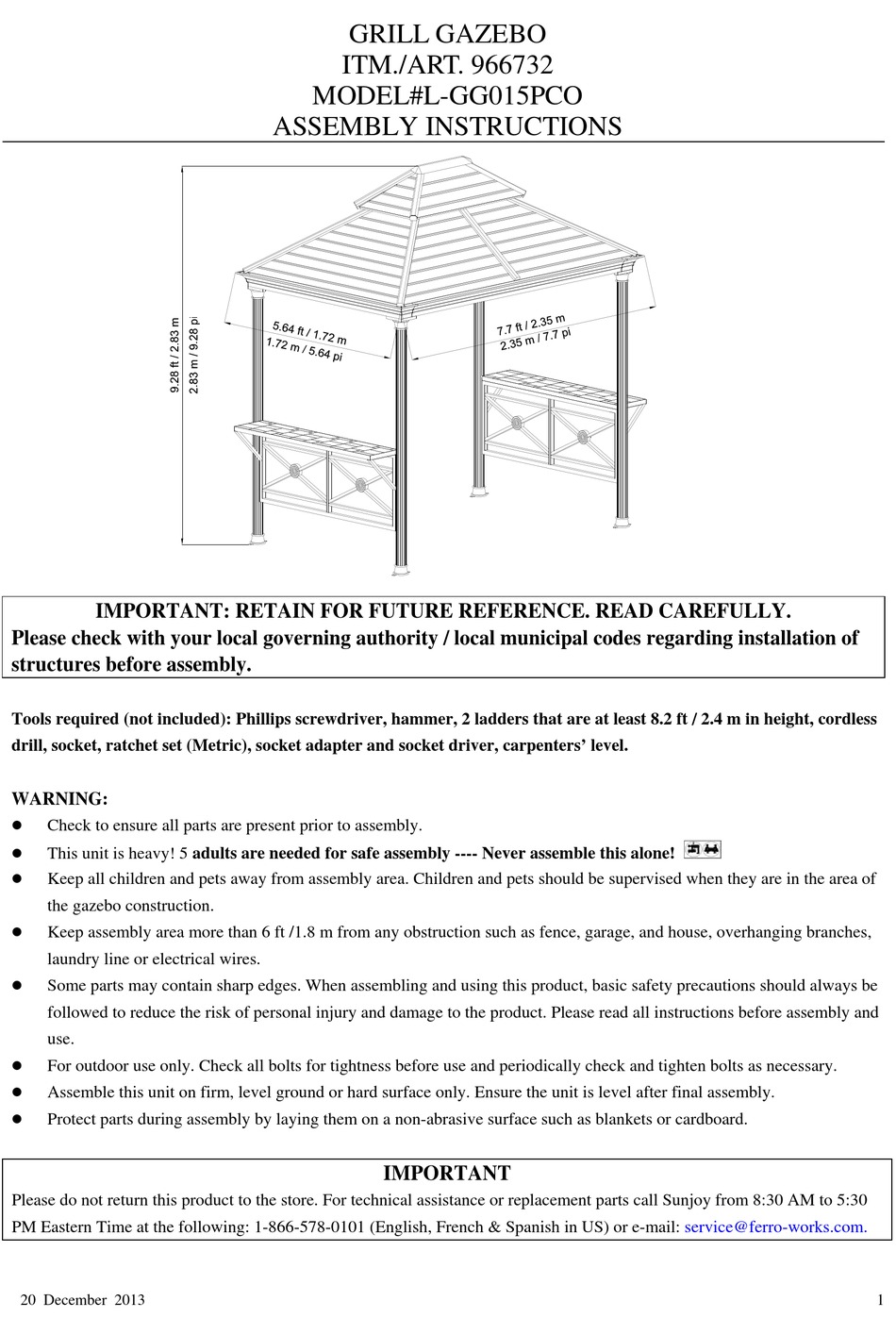

GRILL GAZEBO
ITM./ART. 966732
MODEL#L-GG015PCO
ASSEMBLY INSTRUCTIONS
IMPORTANT
service@ferro-works.com.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GG015PCO and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GG015PCO

  • Page 1 Protect parts during assembly by laying them on a non-abrasive surface such as blankets or cardboard. IMPORTANT Please do not return this product to the store. For technical assistance or replacement parts call Sunjoy from 8:30 AM to 5:30 PM Eastern Time at the following: 1-866-578-0101 (English, French & Spanish in US) or e-mail: service@ferro-works.com.
  • Page 2: Part Description

    Parts List PART LINE DRAWING PART LINE DRAWING DESCRIPTION DESCRIPTION OF PART OF PART Connector Cover Bar 6 (Large Roof, (Small Roof) Large) Bar Cover 1 (Small Bar 7 (Large Roof, Roof) Slanting) Bar 8 (Large Roof, Bar 1 (Small Roof) Middle, Long) Bar 9 (Large Roof, Bar 2 (Small Roof)
  • Page 3: Line Drawing

    Hardware Packet for Step 1 PART # DESCRIPTION LINE DRAWING M6 washer M8 x 20mm bolt M8 washer M6 x 45mm bolt M6 wrench M8 wrench 20 December 2013...
  • Page 4 Fig.1: Attach Fence (S) to Post (Q1, Q2) with bolt (LL) and washer (BB). Make sure holes for slate shelf brackets face outwards and are on top. Slate shelf can be installed at 3 different heights – 34”, 36” or 42”. Decide on your slate shelf height before installing the fence.
  • Page 5 Fig.4: Attach Connector 2 (L1) and Connector 3 (L2) to the assembled gutters (L1/L2) with bolt (JJ) and washer (KK). Fig.5: Assemble Roof Frame 1 (F1) and Roof Frame 2 (F2) together with bolt (AA) and washer (BB). Fig.6: Attach Bar 7 (J) to Connector 2 / Connector 3 (L1/L2) with bolt (DD), washer (BB) and nut (FF). Fig.7: Attach Bar 7 (J) to Roof Frame 1 (F1) with bolt (AA) and washer (BB).
  • Page 6 Fig.10: Attach Bar 1 / Bar 2 (C1 / C2) to Roof Frame 1 (F1) with bolt (AA) and washer (BB). Fig.11: Attach Bar 1 / Bar 2 (C1 / C2) to Connector 1 (D) with bolt (DD), washer (BB) and nut (FF). Screw Hook (U) up to Connector 1 (D) as the dash line indicated in Fig.9.
  • Page 7 Fig.13: Place Roof Panel 1 (E1) on bar 1 (C1) and bar 2 (C2) and secure them with bolt (CC) and washer (BB). Do not tighten roof panel screws until all panels have been installed and aligned. Fig.14: Repeat the above step to Roof Panel 2 (E2). Fig.15: Place Bar Cover 1 (B) on Bar 1 / Bar 2 (C1/C2) and secure them with bolt (MM) and washer (BB).
  • Page 8 Fig.19: Place Roof Panel 3, 4, 5 (G1, G2, G3) on the above assembled bars (J, K1, I3 and I4) and secure them together with bolt (CC and washer (BB) Fig.20: Place Panel Cover 4 (G4) on the edge of the assembled roof panel 4, 5 (G2, G3) and secure them with bolt (CC) and washer (BB).
  • Page 9: Care Instructions

    Fig.26: Attach Corner Cover (V) to the assembled gutters (O1, O2) with bolts (AA, CC) and washer (BB). Adjust the Corner Cover by holding the cover in place to align with the gutters and tightening the bolts. Fig.27: Secure all posts (Q1, Q2) to the ground with stake (II). Fig.28: The slate tops are designed to be adjustable to 34”, 36”...
