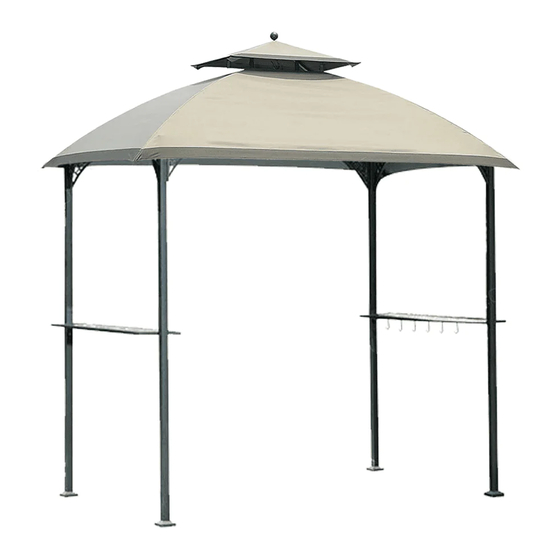

Windsor Grill Gazebo Instruction Manual
Item #: L-GG054PST
SKU #: 810213582
Production number: XXXXXXXX

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-GG054PST and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy L-GG054PST

  • Page 1 Windsor Grill Gazebo Instruction Manual Item #: L-GG054PST SKU #: 810213582 Production number: XXXXXXXX...
  • Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved. 2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightning. 3.
  • Page 3: Parts List

    Parts List P11157B01107 Post 1 P11158B01107 Post 2 P10126B01107 Small top connector Big top frame short P10127B01107 side Big top frame long side P10128B01107 P10257A01107 Small top arch beam P10318B01107 Arch beam P11084C01107 Long screen P11085C01107 Short screen P12335A01107 Table top P13706A01107 Tool hook P11544A01107...
  • Page 4: Hardware Pack

    Hardware Pack 1 M6x15 Bolt 8 PCS H02015C11 M6x20 Bolt 16 PCS H02020C11 M6 Flat washer 32 PCS H19001C11 M6x35 Screw 4 PCS H09035C11 M6 Nut 4 PCS H14001C11 Fig.1: Put base cover (L) into post (A, B), then attach base slice (M) to posts by bolt (AA) and flat washer (BB).
  • Page 5 Fig.5: Attach arch beam bottom to post by screw (CC), flat washer (BB), and nut (DD). Fig.6: Insert small top arch beam (F) into small top connector (C) and insert hook (O). Fig.7: Put small canopy (P) onto assembled small top, then cover four corners. Fig.8: Attach finial (N) onto small top connector (C).
  • Page 6: Customer Service

    Fig.13: Lift up base cover (L), secure the assembled gazebo to the lawn by stake (FF). CUSTOMER SERVICE Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
