3.6.3. Tag VLAN (G.hn:VLAN)

Enable the 802.1Q Tag VLAN function and setup the values in field 'VID' and 'Priority'. VID range is 1~4095
and Priority is 0~7.
Regard port EoC1/2/3 as the network trunk. Once Tag VLAN is enabled, by default port LAN1 and port
EoC1/2/3 are set to the same VLAN; also port LAN2 and port EoC1/2/3 are within the same VLAN. Port LAN1
and port LAN2 are not within the same VLAN if assigned with different VID.

3.6.4. IGMP Snooping (G.hn:IGMP)

Support IGMP snooping with 'Fast Leave' feature. 'Block' will open IGMP snooping function to block multicast
streams without IGMP joining and will forward the multicast streams that have joined. 'Forward' to forward
all multicast streams.

3.6.5. Static MAC(G.hn:SMAC)

It may be necessary to bind and secure the server/gateway MAC addresses to port LAN1/LAN2 of EOC 20-01
for security. Static MAC is using to prevent MAC-spoofing-attack in Ethernet network. For example,

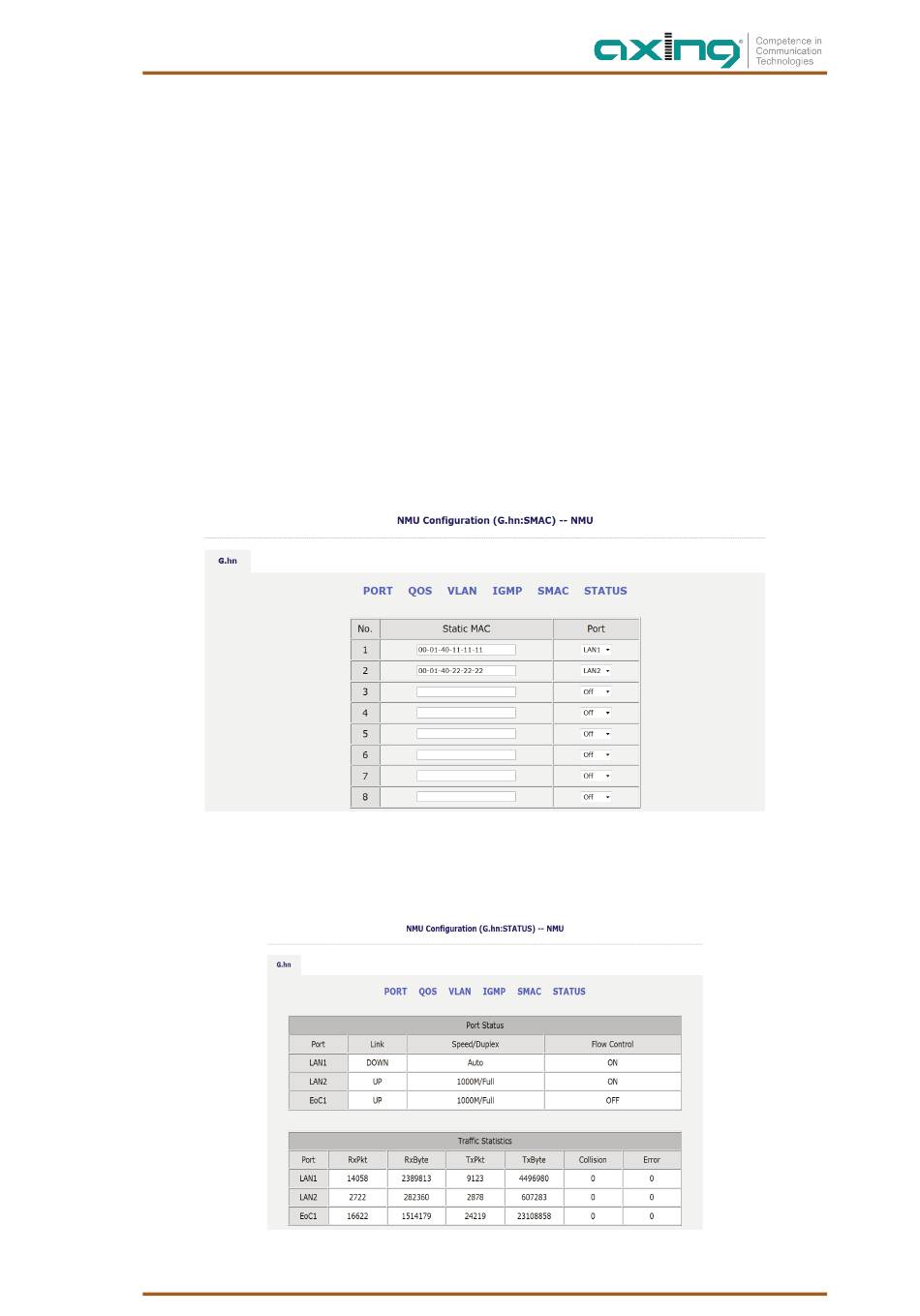

We bind MAC address 00-01-40-11-11-11 to port LAN1 and MAC address 00-01-40-22-22-22 to port LAN2.

3.6.6. Status and Statistics (G.hn:Status)

Show port LAN1/LAN2/EoC1 link status and statistics.
