Operation Instructions | EoC 20-01 | Ethernet over Coax | Master
The Implementation
The EoC Master modulates the IP data and feeds them into the distribution network via an EoC inserter
TZU 40-04. The data can be received on the EoC Endpoints in the same network.
Important: The use of a BSD 963-13N antenna socket and a TZU 40-03/-04 inserter is mandatory in
order to achieve sufficient blocking depth for the frequency range from 5...65 MHz. Otherwise it
may cause interferences in the cable network.

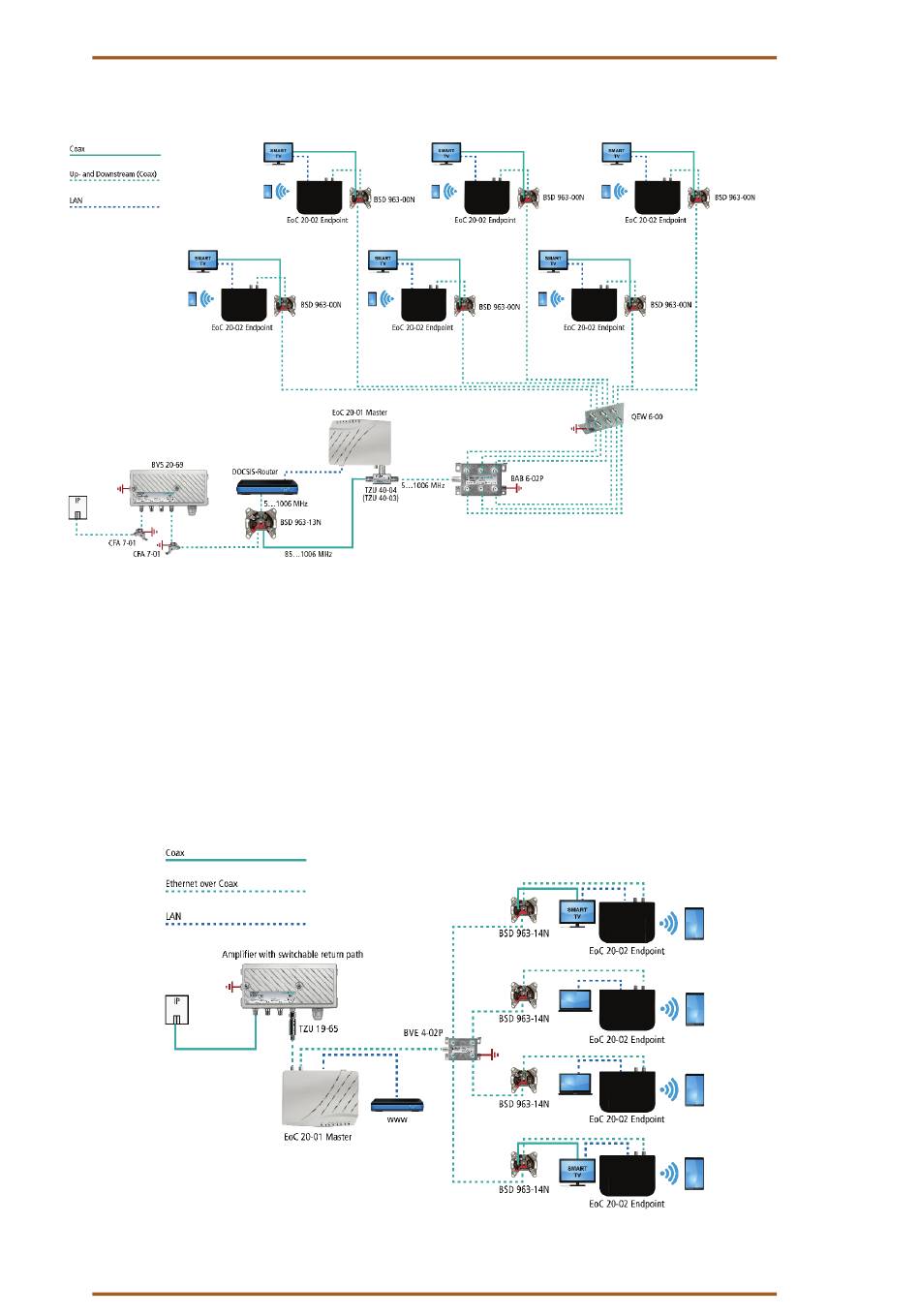

2.3.2. Internet from telephone operator

The IP data from the telephone provider is received by a router and forwarded to the EoC 20-01 Master. The
feeding of the IP signal into the TV distribution network takes place via the EoC 20-01 Master.
Amplifier with switchable return path
