Important: A high-pass filter TZU 19-65 must be installed in the coaxial feed line (at amplifier
output). In addition, the return path of the amplifier must be switched off. Otherwise it may cause
interferences in the cable network.

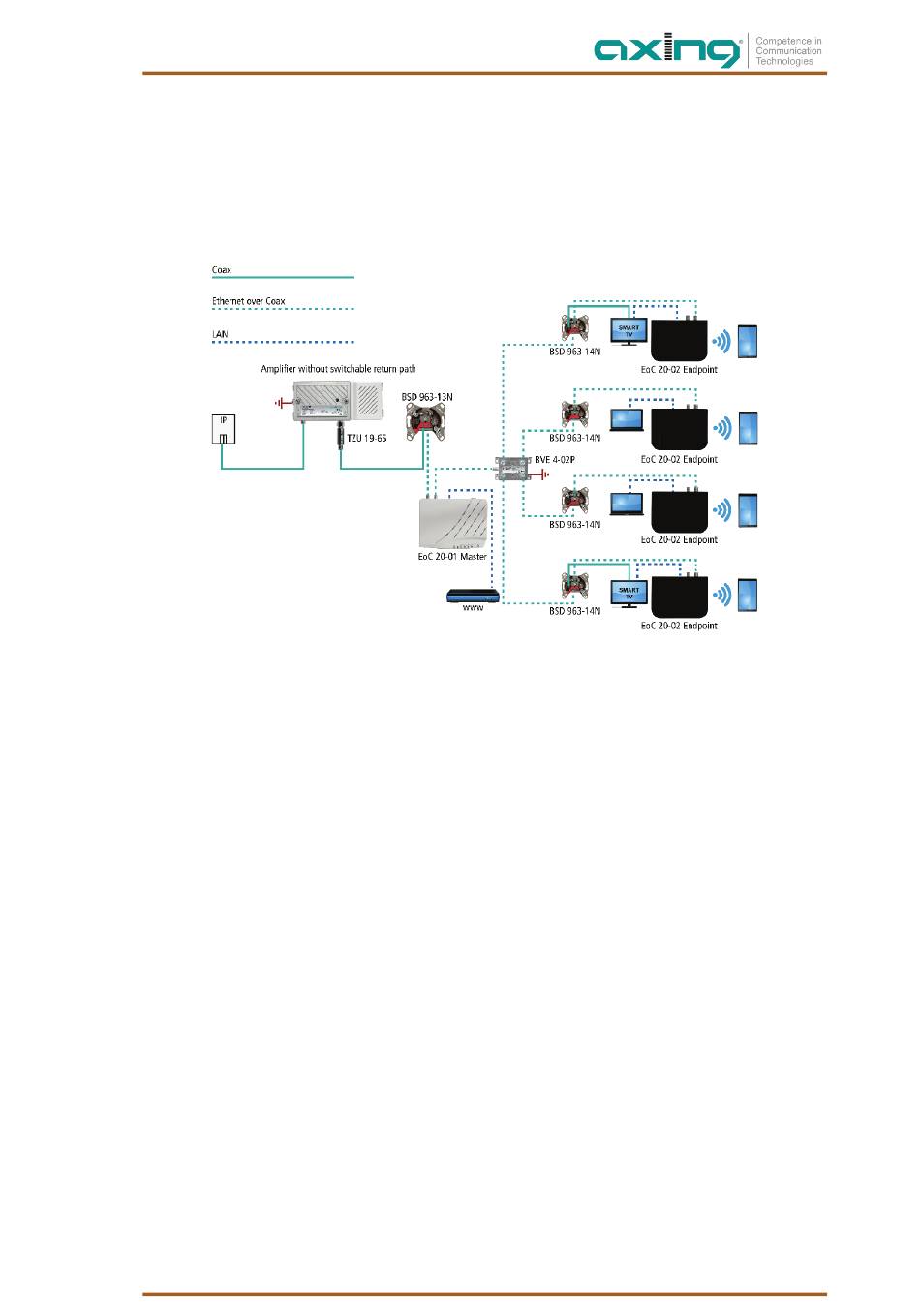

Amplifier without switchable return path
If it is not possible to switch off the return path, a high-pass filter TZU 19-65 and a BSD 963-13N antenna wall
outlet must be installed at the output of the amplifier.
Important: The use of a BSD 963-13N antenna socket and the high-pass filter TZU 19-65 is
mandatory in order to achieve sufficient blocking depth for the frequency range from 5...65 MHz.
Otherwise it may cause interferences in the cable network.
