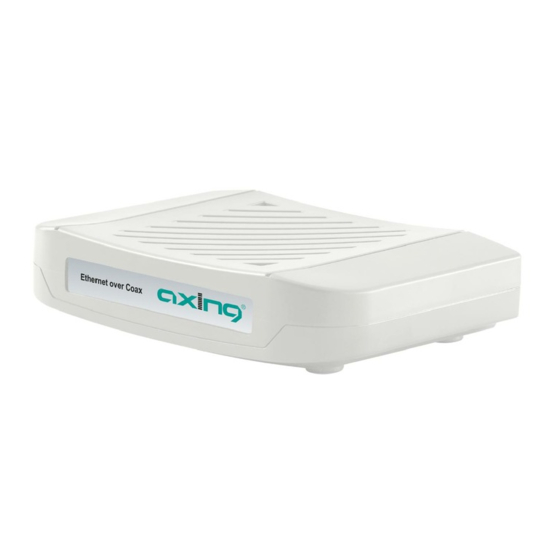

axing EOC 1-31 Operation Instructions Manual

Ethernet over coax / peer to peer

Hide thumbs Also See for EOC 1-31:

Operation instructions manual (52 pages)

Quick start manual (4 pages)

Quick start manual (4 pages)

page of 60

/ 60
Bookmarks

Available languages

Quick Links

Download this manual

Need help?

Do you have a question about the EOC 1-31 and is the answer not in the manual?

Questions and answers

Summary of Contents for axing EOC 1-31

Page 5                              ∂ ∂ ∂ ∂...
Page 7 Verwendung als Tischgerät Montiert an der Wand...
Page 8    ...
Page 18   Information Firmware-Version G.hn MAC-Adresse 2.4G Radio 5G Radio...
Page 19 Operation Mode Bridge (DHCP Client) Operation Mode Bridge (Static IP)   Update  Active Changes...
Page 20 RADIO Client Isolation ∂ Enable ∂ Disable Hide SSID ∂ Enable ∂ Disable WIFI Service ∂ Enable ∂ Disable Maximum Tx Power Channel ∂ Auto ∂ Mode | Bandwidth ∂ 20 MHz 40 MHz 80 MHz ∂ 20 MHz 40 MHz ∂...
Page 21 2.4G VAP Service ∂ Enable ∂ Disable SSID  Security Mode ∂ Open: ∂ WPA-PSK/WPA2-PSK Mixed: Pre-Shared Key ∂ ∂ Cypher ∂ Auto ∂ CCMP(AES) ∂ TKIP Update  Active Changes...
Page 22 2.4G VAP 2 2.4G VAP 3 2.4G VAP 4 Service Enable Update  Active Changes 5G VAP Service ∂ Enable ∂ Disable...
Page 23 SSID  Security Mode ∂ Open: ∂ WPA-PSK/WPA2-PSK Mixed: Pre-Shared Key ∂ ∂ Cypher ∂ Auto ∂ CCMP(AES) ∂ TKIP Update  Active Changes 5G VAP 2 5G VAP 3 5G VAP 4 Service Enable Update  Active Changes...
Page 24 Tag VLAN VLAN Disable Enable  Priority VID: 4094 In Rule ∂ VID Matched Accept All Out Rule Untag Tag Bypass  Update  Active Changes...
Page 25 Active Changes Active  Current Password  New Password  Confirm New Password  Update ...
Page 26    ...
Page 27 EOC 1-32 EOC 2-32 Frequenzbereich 5…1800 MHz Anschlüsse (G.hn | TV) 2 × F-Buchse Frequenzbereich Datenübertragung 5…204 MHz Frequenzbereich TV-Bypass 258…1800 MHz Max. Dämpfung im Koaxialnetz 77 dB Übertragungspegel im Koaxialnetz 113 dBµV ± 1dB Standard ITU-T G.9960/G.9961 G.hn over Coax Netto Datenrate (PHY) 1800 Mbps Max.
Page 28 EOC 1-32 EOC 2-32 Name oder Handelsmarke des Channel Well Technology Co Ltd Herstellers 222 Sec 2 Nankan Rd,Lujhu Township Taoyuan Hsien, 33855 Taiwan | 84573516 Handelsregisternummer und Anschrift Modellkennung 2AAR006F EU 2AAJ012F EU Eingangsspannung 100…240 V 100…240 V Eingangswechselstromfrequenz 50…60 Hz 50…60 Hz Ausgangsspannung...
Page 35                              ∂ ∂ ∂ ∂...
Page 37 Used as table top unit Mounted on the wall...
Page 38    ...
Page 48  Information firmware version G.hn MAC address 2.4G Radio 5G Radio...
Page 49 Operation Mode Bridge (DHCP Client) Bridge (Static IP    Active Changes...
Page 50 Client Isolation ∂ Enable ∂ Disable Hide SSID ∂ Enable ∂ Disable WIFI Service ∂ Enable ∂ Disable Maximum Tx Power Channel ∂ Auto ∂ Mode | Bandwidth ∂ 20 MHz 40 MHz 80 MHz ∂ 20 MHz 40 MHz ∂...
Page 51 2.4G VAP Service ∂ Enable ∂ Disable SSID  Security Mode ∂ Open: ∂ WPA-PSK/WPA2-PSK Mixed: Pre-Shared Key ∂ ∂ Cypher ∂ Auto ∂ CCMP(AES) ∂ TKIP  Active Changes...
Page 52 2.4G VAP 2 2.4G VAP 3 2.4G VAP 4  Active Changes 5G VAP Service ∂ Enable ∂ Disable SSID ...
Page 53 Security Mode ∂ Open: ∂ WPA-PSK/WPA2-PSK Mixed: Pre-Shared Key ∂ ∂ Cypher ∂ Auto ∂ CCMP(AES) ∂ TKIP  Active Changes 5G VAP 2 5G VAP 3 5G VAP 4  Active Changes...
Page 54 Disable Enable  Priority VID: 4094 In Rule ∂ VID Matched Accept All options Out Rule Untag Tag Bypass   Active Changes...
Page 55 Active  Current Password  New Password field  Confirm New Password  Update ...
Page 56   ...
Page 57 EOC 1-32 EOC 2-32 Frequency range 5…1800 MHz Connectors (G.hn | TV) 2 × F-Buchse Frequency range transmission 5…204 MHz Frequency range TV bypass 258…1800 MHz Max. attn. in coaxial network 77 dB Transmission level in coaxial network 113 dBµV ± 1dB Standard ITU-T G.9960/G.9961 G.hn over Coax Net data rate (PHY)
Page 58 EOC 1-32 EOC 2-32 Manufacturer’s name or trademark Channel Well Technology Co Ltd commercial registration number and 222 Sec 2 Nankan Rd, Lujhu Township Taoyuan Hsien, 33855 Taiwan | 84573516 address Model identifier 2AAR006F EU 2AAJ012F EU Input voltage 100…240 V 100…240 V Input AC frequency 50…60 Hz...
