EasyView 5 - User and Installation Manual
Clamp mounting
4.2

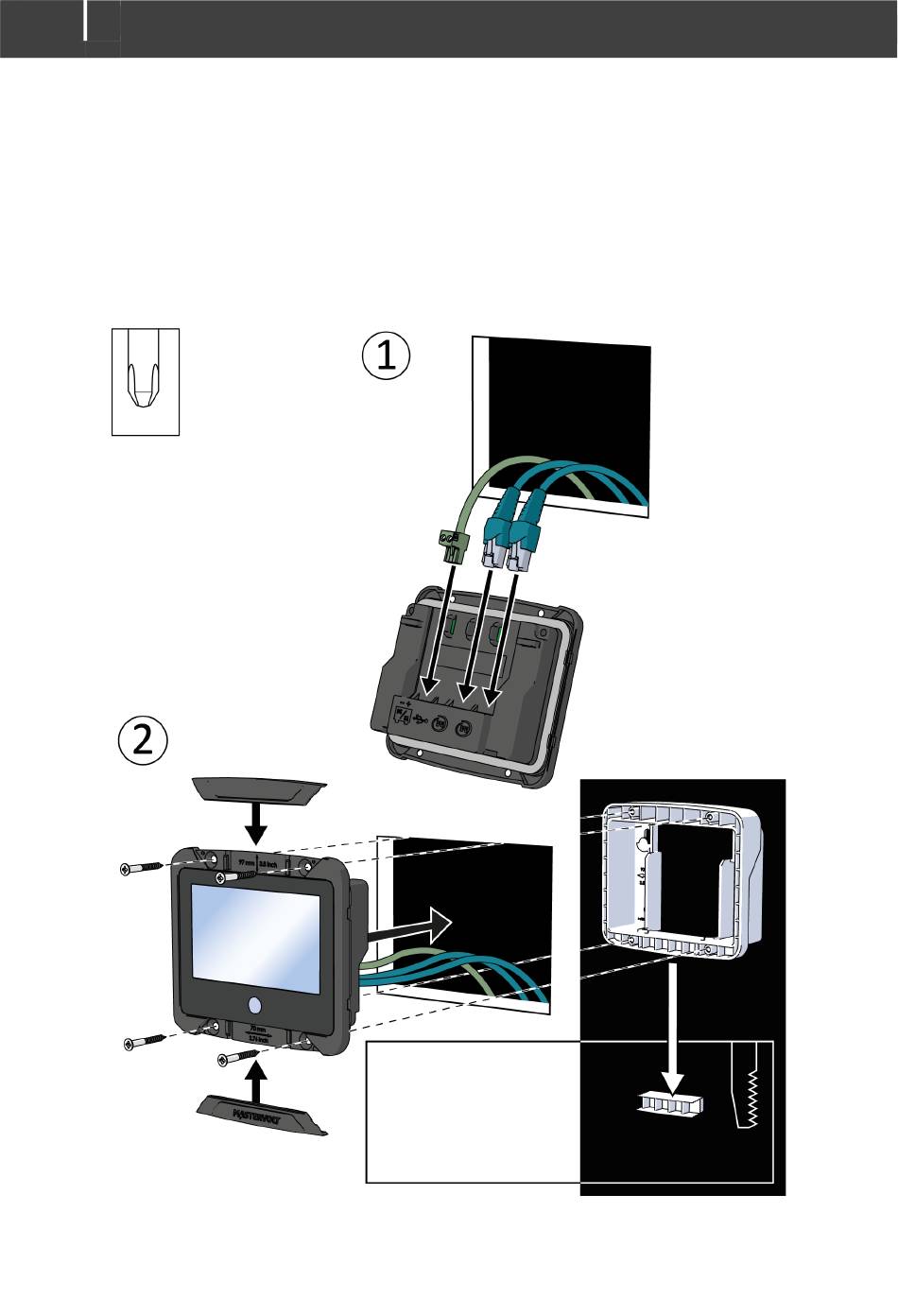

In case the mounting screws of the EasyView 5 have no grip, for instance when the EasyView 5 is
installed as a refit and the dimensions of the mounting hole are too big, the wall box can also be
used as a mounting clamp. Position the wall box at the back side of the installation panel, and use
the supplied screws to fasten the display onto the wall box. The display will be clamped onto the
panel. Depending on the thickness of the installation panel, use either the supplied 4x14mm or
4x30mm screws.
PH2
Remove this part if
cables are hindered
