Summary of Contents for Mastervolt EasyView 5

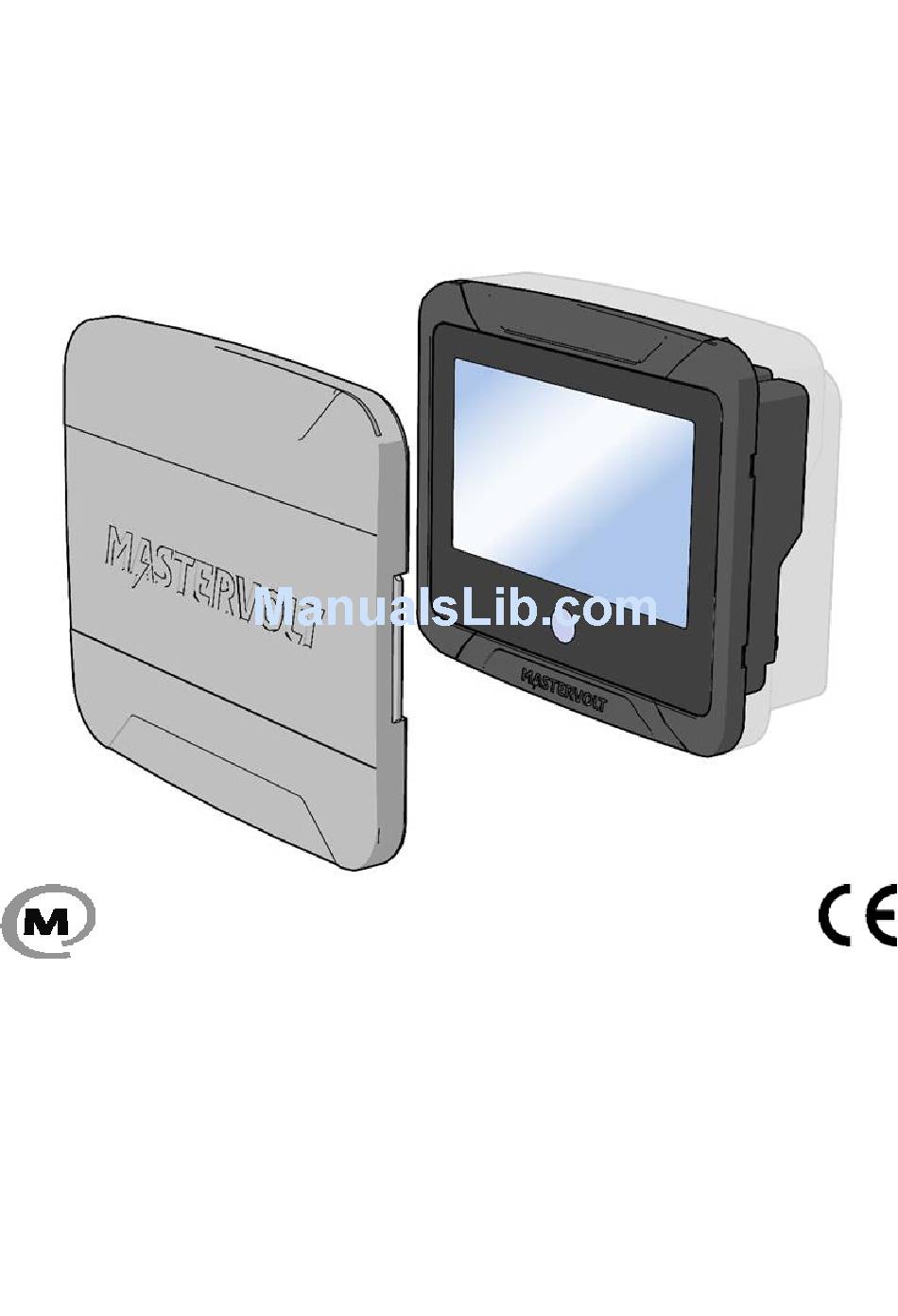

- Page 1 EasyView 5 MONITORING AND CONTROL PANEL FOR THE MASTERBUS NETWORK USER’S AND INSTALLATION MANUAL 10000011559/08...
-
Page 2: Table Of Contents
EasyView 5 - User’s and Installation Manual Table of Contents Product description ........................4 Specifications ........................4 Parts ........................... 5 Connections ........................6 Accessories ........................7 Safety............................8 Safety instructions ....................... 8 Liability ..........................8 Warranty ..........................8 Correct disposal of this product ................... 8 Identification label ....................... - Page 3 EasyView 5 - User’s and Installation Manual Monitoring and configuration ....................16 Favorite pages ........................16 6.1.1 Adding widgets to favorite pages ................16 6.1.2 Widget order ......................18 6.1.3 Removing widget(s) ....................19 System ..........................19 Device page ........................20 Alarms..........................
-
Page 4: Product Description

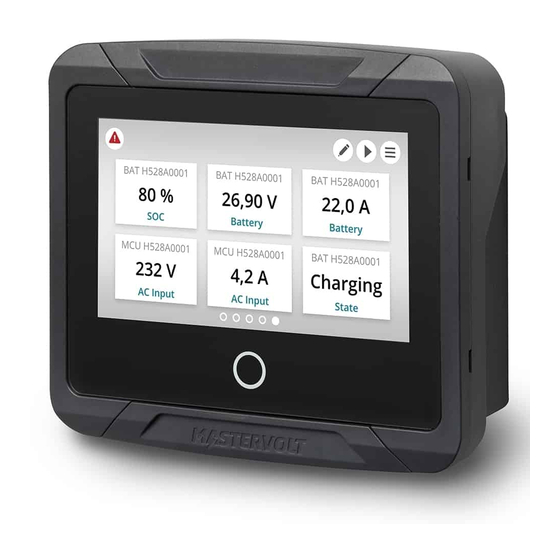

EasyView 5 - User’s and Installation Manual Product description The Mastervolt EasyView 5 is a 4.3” touch display that allows the user to monitor, configure and operate all connected devices in a MasterBus network. Specifications Specifications Model EasyView 5 Product code... -
Page 5: Parts
Wall box Bottom cover * Always use the front cover when the EasyView 5 display needs to be protected from damage or sunlight. ** Always use the seal when the EasyView 5 display needs to be protected from water, moist and... -
Page 6: Connections
EasyView 5 - User’s and Installation Manual Connections Connections MasterBus port 1 MasterBus port 2 USB device port Power input 12/24 V... -
Page 7: Accessories
EasyView 5 - User’s and Installation Manual Accessories Accessories Mastervolt EasyView 5 MasterBus cable (6 meter / 20ft) MasterBus terminator 12/24 V connector Mounting screw (4 pcs) 4x30mm PH2 Mounting screw (4 pcs) 4x14mm PH2... -
Page 8: Safety
Inappropriate usage that is inconsistent with the purpose of the product. Warranty Mastervolt assures a two year warranty on the EasyView 5 after purchase, on the condition that the product is installed and used according to the instructions in this manual. -
Page 9: Masterbus
Every device that is compatible with MasterBus is equipped with two data ports. The devices are simply chained together, forming a local data network. Monitoring panels such as the EasyView 5 can be used for monitoring and control of all connected MasterBus equipment. - Page 10 EasyView 5 - User’s and Installation Manual At least one device in the network should have Do not make ring networks. powering capabilities (see specifications). The EasyView 5 does have powering capabilities, if the auxiliary supply is connected to the battery.
-
Page 11: Installation Instructions
EasyView 5 - User’s and Installation Manual Installation instructions The EasyView 5 offers three mounting options: Panel mounting onto the wall box - see section 4.1 Flush mounting in an 82 x 113 mm hole - see separate instruction sheet with saw template ... -
Page 12: Clamp Mounting
Clamp mounting In case the mounting screws of the EasyView 5 have no grip, for instance when the EasyView 5 is installed as a refit and the dimensions of the mounting hole are too big, the wall box can also be used as a mounting clamp. -
Page 13: Aux Power Supply
If there is no MasterBus powering device or the available power is not sufficient, the EasyView 5 must be connected to a 12/24V battery via the supplied connector (see section 1.4). -
Page 14: Operation
5.2.1 Switching on and off Press the Home Button shortly to switch on the EasyView 5. After a short time the first screen is shown for device selection, this screen is called the Dashboard. Pressing the Home Button again for more than 5 seconds results in switching off the EasyView 5. -
Page 15: Maintenance
EasyView 5 - User’s and Installation Manual Navigate to another page by swiping or by tapping the left or right bottom of the screen. The bullets on the bottom of the dashboard show how many favorite pages there are, and which favorite page is currently being shown. -
Page 16: Monitoring And Configuration
EasyView 5, only the EasyView 5 is shown in the System page. The Device page of the EasyView 5 is shown as example in the following screenshots. Other devices have similar pages and widgets. - Page 17 EasyView 5 - User’s and Installation Manual The Device page shows which items can be added on the favorite page. Select item(s), and tap confirm button to confirm the selection. 1 to a maximum of 6 items can be selected per favorite page. When 6 items are selected, selection of more items is automatically blocked.
-
Page 18: Widget Order
EasyView 5 - User’s and Installation Manual Optionally the device name of the item shown on the widget can be customized. Tap on the device name to open the Custom name page. After changing the name, tap confirm. When the favorite page(s) are configured, tap... -
Page 19: Removing Widget(S)
EasyView 5 - User’s and Installation Manual 6.1.3 Removing widget(s) To remove a widget from a favorite page; tap the Edit button to go to the Edit page. Tap the red cross shown in the right upper corner of the widget to remove it. -
Page 20: Device Page
EasyView 5 - User’s and Installation Manual The System screen displays a list of all connected devices in alphabetical order. Select a device to navigate to its Device page. Devices from the list with an active alarm are accompanied by an alarm symbol. -
Page 21: Alarms
EasyView 5 - User’s and Installation Manual Alarms An Alarm popup is displayed when a connected device generates an alarm. Tap ‘Log’ to navigate directly to the device page or ‘Snooze’ to snooze the alarm. If the alarm persists, the popup is shown every 9 minutes. -
Page 22: Easyview 5 Monitoring Settings
EasyView 5 - User’s and Installation Manual EasyView 5 monitoring settings If you select the EasyView 5 from the System screen you will find the settings listed below. The settings are stored in the internal memory of the selected device. Therefore, switching off the EasyView 5 will not influence the settings. -
Page 23: Easyview 5 Events
MasterBus. An example of an event where the EasyView 5 is the event source can be that a light can be switched Off when the Easy is switched On, the event source is then State. -
Page 24: Event Target
EasyView 5. An example might be that the buzzer of the EasyView 5 is switched on when there is a battery pre- low warning by a MLi battery. The event source is battery pre-low, the event target is the EasyView 5, the event command is Buzzer and event data Copy. -
Page 25: Event Data
Event Data Configuring other devices Monitoring and configuring other devices is possible by selecting a device in the EasyView 5 device list, see section 6.2. Refer to the user’s manual of the connected device for an overview of all available settings. Settings are stored in the memory of the selected device. This means that switching off or disconnecting of the EasyView 5 will not affect the settings of the connected devices. -
Page 26: Updates
MasterAdjust software. To upload firmware to the EasyView 5 by USB, insert a USB flash drive in the USB port at the back of the device. After inserting the USB flash drive, restart the display (see 5.2.1). The USB flash drive is now detected, and a USB flash drive button appears on the dashboard. -
Page 27: Additional Information
Complete set to assemble MasterBus cables. Delivery includes: 100 meter UTP cable, 50 pcs. modular jacks and crimping tool 77030100 MasterBus-USB interface, required as interface between your PC and the MasterBus when using MasterAdjust software. * These parts are standard included with the delivery of the EasyView 5... -
Page 28: Trouble Shooting
EasyView 5 - User’s and Installation Manual Trouble shooting Contact your local Mastervolt Service Centre if you cannot correct a problem with the aid of the trouble shoot table below. See www.mastervolt.com for an extended list of Mastervolt Service Centres. - Page 29 EasyView 5 - User’s and Installation Manual Failure Possible cause What to do MasterBus network is Ring networks are not allowed. Check the configured as a ring network. connections of the network (see section 3.3). T-connections in the Check if T-connections are made in the MasterBus network.
- Page 30 EasyView 5 - User’s and Installation Manual Failure Possible cause What to do See section 6.6 for setting “Name Wrong system name is Wrong setting of the system system”. displayed. name at the EasyView 5. You don’t have the You just discovered some...
-
Page 31: 10 Dimensions
EasyView 5 - User’s and Installation Manual 10 Dimensions Front cover Front Case partly removed to show mounting hole details. Ø 3 (4x) Front, mounting holes Side, with wall box Side, without wall box Ø 10 Ø 6 Back, with wall box... - Page 32 Mastervolt International B.V. Snijdersbergweg 93 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 Email: info@mastervolt.com Web: www.mastervolt.com...
