  • Page 1 KEEROLL User Manual...

  • Page 2: Table Of Contents

    Safety edge Photocell RadioSens3 or RadioBand3 system Communication’s quality Impact detection adjustment Maintenance Program maintenance manoeuvres Reset manoeuvres counter Reset transmitters Reset safety elements Fuse replacement Technical Data Technical Data: KEEROLL Troubleshooting KEEROLL Notes Regulatory Data EU Declaration of conformity jcmtechnologies...

  • Page 3: Important Safety Instructions

    - for communal and public installations, prevent the door from making contact with any object or limit the force of contact (e.g. safety band), and complement this with a presence detector (e.g. Photocell). KeeRoll control panel switches automatically to dead man mode when safety devices are active or defective. Therefore, all controls work as “hold-to-run” controls.

  • Page 4: Safety Instructions For The Use

    Safety instructions for the use •Do not allow children to play with the door controls. •Keep the remote controls out of the reach of children. •Watch the door movement and keep people away until the door is fully open or closed. •Precaution when operating the manual unlocking device, as the door may suddenly fall due to the bad condition of the springs or door unbalance.

  • Page 5: Introduction

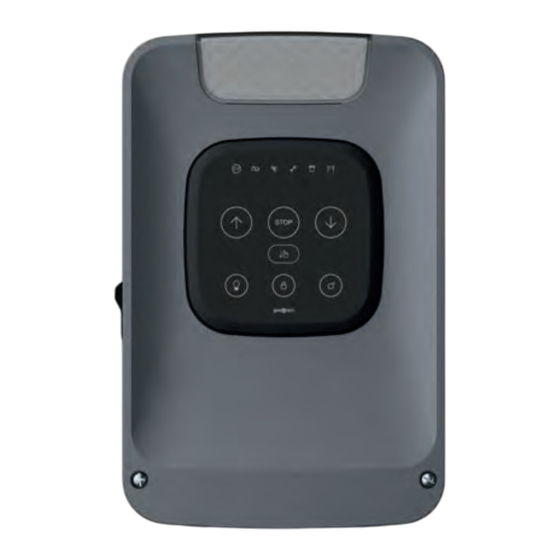

    Introduction General description Designed for residential aluminium roller shutters, the KEEROLL solution has direct communication with the user and the installer. Its capacitive front with illuminated keys provides comfort and security. The door can be opened and closed by any person without the need for technical know-how.

  • Page 6: Actions

    Actions Press to open, stop and close the door. Press to close the door in dead man mode. Block function: KEEROLL control panel incorporates a block button on the cover to prevent the door from being opened accidentally. Press to block the door, key lights ON. The control panel will not be able to move the door neither to receive any transmitter.

  • Page 7: Installation

    Installation Control panel fixations Remove the front cover of the control panel. Install the bottom part on the wall in a vertical position, at least 1,5 meters over the ground and in accordance with the assembly instructions below. jcmtechnologies...

  • Page 8: Connections

    Connections To prevent electric shocks, the equipment must be disconnected from the power supply and all the electrical connections. 230VAC MONOPHASE MOTOR OUTPUTS jcmtechnologies...
  • Page 9 OPTO SAFETY EDGE / 8k2 SAFETY EDGE INPUT (AUTOEDGE) PHOTOCELL INPUT PUSHBUTTONS INPUTS jcmtechnologies...

  • Page 10: Configuration / Starting Up

    Configuration / Starting up Connect the power supply Adjusting limit switch Door MUST BE AT HALFWAY position before starting the limit switch adjusting Dipswitch 1 at ON. Door will move in dead man mode. Keep pressed to move up and down the door. Press , to change the phase of the motor in case the door is not moving in the proper sense.

  • Page 11: Programming

    Programming Transmitter programming Press , key lights ON, a beep will be heard. Keep pressed key until reach the desired channel configuration (see below sequence for the different configurations). Front light Indication Press the desired transmitter button to 1 flash activate open / stop / close Press the desired transmitter button to 2 flashes...

  • Page 12: Manoeuvre Programming

    Manoeuvre programming Door MUST BE TOTALLY CLOSED before starting the manoeuvre programming. Enter Installer mode: Press , the maintenance indicator lights ON, a beep will be heard. Select dipswitch 2 at Autoclose time. Press , with the door totally closed, on cover and the control panel will initiate auto- programming...

  • Page 13: Verification

    Verification Verify that the control panel is working properly Once the control panel is correctly wired and programmed, check that all the system (accessories included) is working prop- erly. Transmitter Press the transmitter button and check that the door opens. Press again, and check that the door stops/closes. Safety edge Check that the LED is at OFF.

  • Page 14: Maintenance

    Maintenance Enter Installer mode: Press , the maintenance indicator lights ON, a beep will be heard. The following functions can be done inside this maintenance mode. Program maintenance manoeuvres Maintenance warning: By entering Installer mode you can set the number of manoeuvres for the maintenance warning.

  • Page 15: Reset Safety Elements

    Reset safety elements Press and keep pressed until Keep pressed and press , to erase safety ele- keys starts flashing, a beep will be heard. ments, some beeps will be heard followed by a long beep. In case of erasing safety elements, the manoeuvre has to be reprogrammed again.

  • Page 16: Technical Data

    Technical Data Technical Data: KEEROLL Parameter Value Power supply range 230 V CA +/-10% Stand-by / operating consumption <60 mA / 200 mA Maximum power supported 1,2 kW Motor fuses Operating temperature -20 ºC to 55 ºC Watertighness IP42 Size (L/W/H)

  • Page 17: Notes

    Notes jcmtechnologies...
  • Page 18 Notes jcmtechnologies...
  • Page 19 Notes jcmtechnologies...

  • Page 20: Regulatory Data

    Regulatory Data EU Declaration of conformity JCM TECHNOLOGIES, S.A. hereby declares that the product KEEROLL complies with the relevant fundamental require- ments of the RED Directive 2014/53/EU, as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen;...
