  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Table of contents Important safety instructions Important safety instructions for installation Important safety instructions for use Use of the system Introduction General description Detailed description Installation Fixations of the control panel Connections Configuration / Starting up Option 1 selector Option 2 selector Connect the power supply Initialization of inverter parameters Speed ramps adjustment...

  • Page 3: Important Safety Instructions

    - for communal and public installations, prevent the door from making contact with any object or limit the force of contact (e.g. safety band), and complement this with a presence detector (e.g. Photocell). F30 control panel switches automatically to dead man mode when safety devices are active or defective. Therefore, all controls work as “hold-to-run” controls.

  • Page 4: Important Safety Instructions For Use

    Important safety instructions for use •Do not allow children to play with the door controls. •Keep the remote controls out of the reach of children. •Watch the door movement and keep people away until the door is fully open or closed. •Precaution when operating the manual unlocking device, as the door may suddenly fall due to the bad condition of the springs or door unbalance.

  • Page 5: Introduction

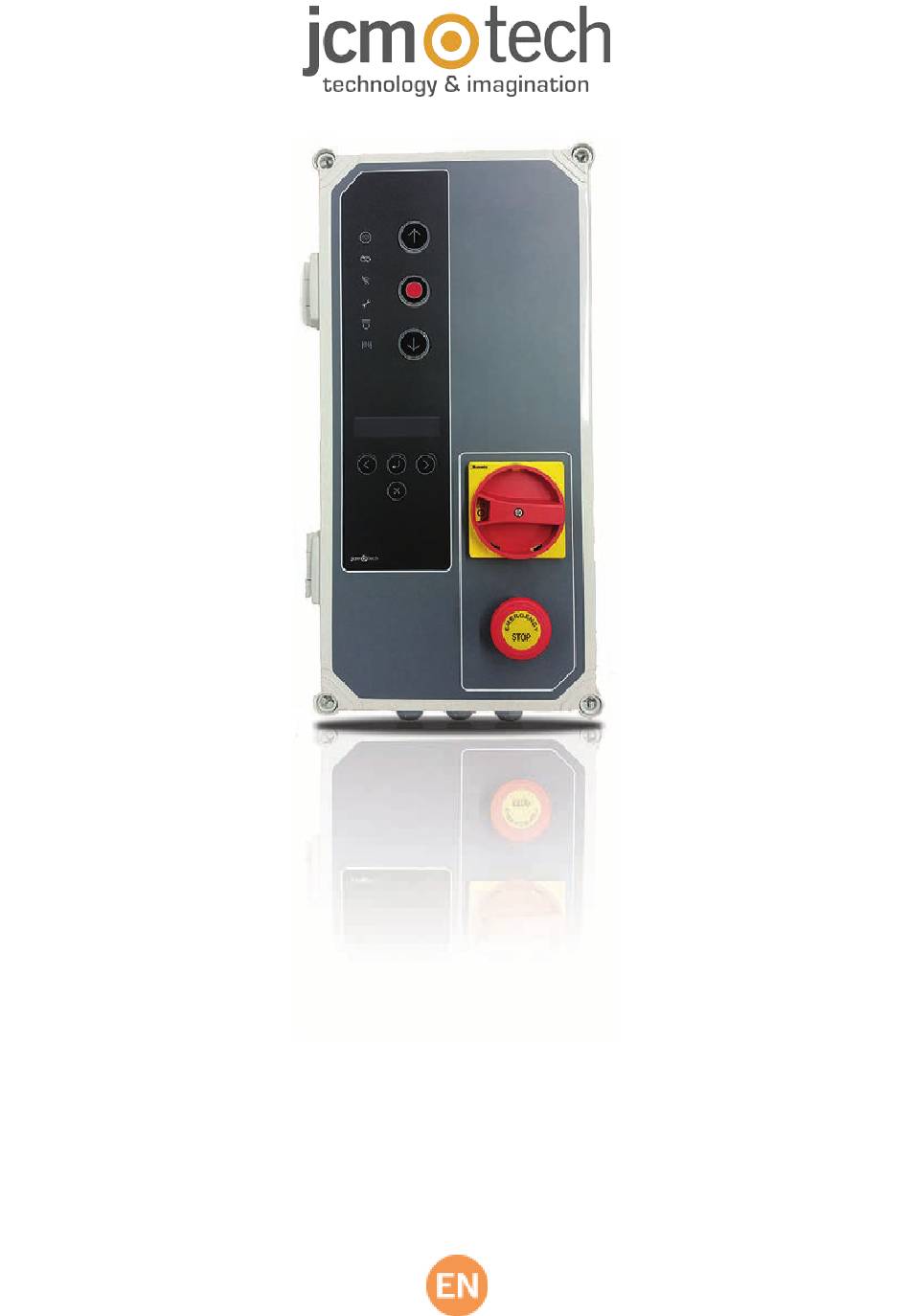

    Introduction General description Control panel with frequency inverter 0.75KW and control by absolute encoder JCM, Elektromaten or Kostal, designed for fast doors. Is composed by: •Motor brake outputs and flashes at 230Vac, and voltage-free contact outputs to indicate the status of door open and door closed.
  • Page 6 1A/250V Connection for motor U (Open) V (Close) W (Common) 2- AUTOCLOSE TIME 15- POWER SUPPLY Min=3s - Max=60s Power supply input connection Maximum position=No auto-close 3- RECEIVER 16- PROTECTION EARTH (MANDATORY) Motion STICK / DCS RACK receiver connector Connection for earth 4- MTC 17- SAFETY EDGES INPUT/ STOP Connector for magnetic detector card MTC...
  • Page 7 jcmtechnologies...

  • Page 8: Installation

    Installation Fixations of the control panel Install the control panel vertically on the wall at a height of 1.5m and following the assembly instructions. jcmtechnologies...

  • Page 9: Connections

    Connections To avoid electric shock, the equipment must be disconnected from the power supply and all electrical connections POWER SUPPLY AND MOTOR CONNECTION jcmtechnologies...
  • Page 10 OUTPUTS PUSHBUTTONS LIMIT SWITCHES jcmtechnologies...
  • Page 11 OPTO SAFETY EDGE INPUT / 8K2 SAFETY EDGE INPUT (AUTOEDGE) PHOTOCELLS INPUTS Normally, by default, PhotoCell1 is configured for opening safety and PhotoCell2 2 for closing safety. Check the configuration of the control panel parameters to be sure. jcmtechnologies...
  • Page 12 NPN PHOTOCELLS INPUTS NPN PHOTOCELL BARRIERS INPUTS FSS PHOTOCELL BARRIERS INPUTS jcmtechnologies...

  • Page 13: Configuration / Starting Up

    Configuration / Starting up Option 1 selector By default all selectors leave the factory set to OFF. SELECTOR OPTIONS 1- AUTOCLOSE Do not closes automatically Closes automatically Functioning without dead man on Activates the dead man on opening 2- DM OPEN opening manoeuvre Functioning without dead man on...

  • Page 14: Initialization Of Inverter Parameters

    Initialization of inverter parameters Once inside, select the FREQ.CONVERTER menu with To initialize the inverter parameters, press the key and validate with Enter key. key for 2s to enter PROGRAMMING, select the The message PLEASE WAIT DATA LOADING will appear on the display PARAM CONFIG menu with the key and validate with the...

  • Page 15: Speed Ramps Adjustment

    The parameters that must be entered and found in the motor plate are the following: •FC Motor Freq: motor frequency •FC Motor Power: engine power • FC MotorCurrent: motor current •FC Motor RPM: motor revolutions per minute Speed ramps adjustment Once the "open door"...

  • Page 16: Checking Motor Direction

    •FC PosRamp Time: acceleration ramp (seconds from 0% to 100% of the speed) •FC HighSpeedOpen: opening speed (%) •FC NegRampTime: deceleration ramp (seconds from 100% to 0% of the speed) •FC Creep Speed: approach speed (%) •Creep Puls Open: approach pulse / time (seconds when operating with limit switches) •FC HighSpeedClose: closing speed (%) •Creep Puls Close: approach pulse / time (seconds when operating with limit switches) •FC QuickStopTime: braking ramp (seconds from 100% to 0% of the speed) when operating with limit switches...

  • Page 17: Programming For Closing

    PROGRAMMING FOR CLOSING Press the PROG button for 3 seconds, the indicator light will come on. Position the door in the door closed point using the buttons . It is advisable to make long runs in order to ensure a correct adjustment. Once the door is in the desired “door closed”...

  • Page 18: Manoeuvre Programming With Limit Switches

    Manoeuvre programming with limit switches Turn the options 2 of the Options 2 selector to the ON position. Jumper on the encoder connector must be plugged. The limit switches need to be adjusted before programming, and the door positioned in the “door closed” position. PROGRAMMING FOR OPENING Press the PROG button for 3 seconds.

  • Page 19: Maintenance

    Maintenance Fuse replacement When connecting the equipment to the power supply, if the front panel does not light up, open the front cover and replace the fuse with another of the same characteristics. Set parameters to default values If you desire to set the parameters to the default values, you must enter into the frequency converter parameters menu as explained below, and select the RESTORE DEFAULT option.

  • Page 20: Troubleshooting

    Troubleshooting INDICATOR SOLUTION Emergency stop input activated Low battery detection Verify the batteries of the safety transmitter Verify the radio signal. Check the batteries, Radio communication error reprogram again or change equipments loc- ation. ON: Installer mode See Maintenance chapter Flashing: Maintenance warning ON: Closing photocell activation error Flashing: Indicates the reversed movement...

  • Page 21: Indicator Light For Possible Faults, Led Error

    Indicator light for possible faults, LED ERROR ERROR LED ERROR INDICATION SOLUTION 10 slow flashes Consult the technical ser- ER02 INTERNAL ERROR Internal error vice 2 quick flashes The maximum permitted Program a shorter time 10 slow flashes ER09 MAX. PROG. TIME programming time has manoeuvre than the max- 9 quick flashes...

  • Page 22: Technical Data

    Technical Data Electrical Parameter Parameter Value Power supply 230Vac Maximum motor power 230Vac 3~ 0,75kW Optional cards (EXPANSION1/EXPANSION2) RSEC3, TL-CARD-V Receiver card connector Motion STICK / DCS RACK 230V output Motor brake and flashing Voltage-free outputs OPEN/CLOSE door status signals Accessories power supply / Photocells test (shared 24Vac / 24Vdc / 24Vdc TEST outputs 700mA)

  • Page 23: Notes

    Notes jcmtechnologies...

  • Page 24: Regulatory Data

    Regulatory Data EU Declaration of conformity JCM Technologies declares that the product F30 complies with the relevant fundamental requirements of the Machine Dir- ective 2006/42/EC as well as with the Directives 2014/30/EU on electromagnetic compatibility and 2014/35/EU regarding low voltage whenever its usage is foreseen; and with the 2011/65/EU RoHS Directive.
