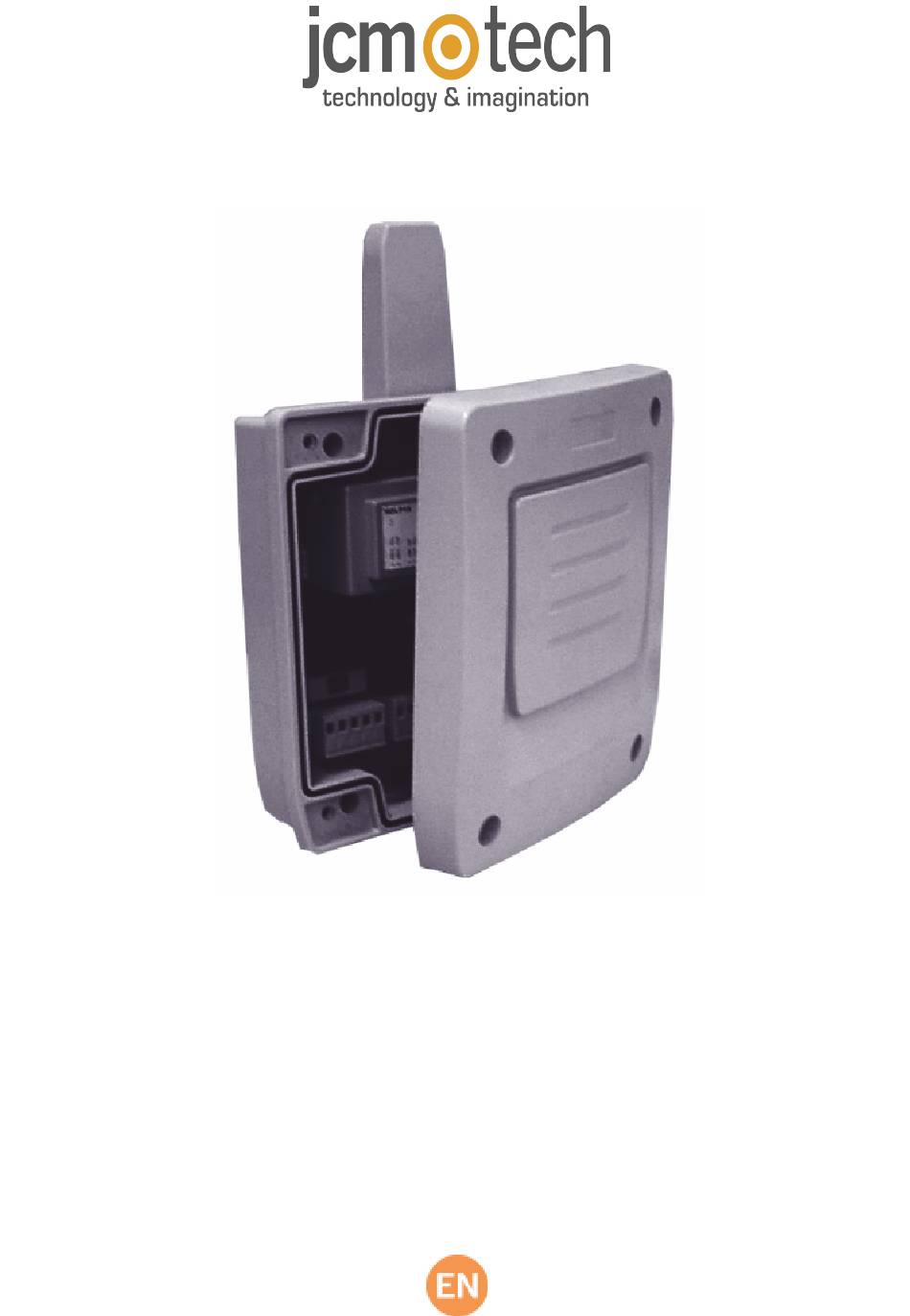

- Page 1 User's Manual EASY-ROLL...
-
Page 2: Maintenance
Maintenance Important safety instructions for installation Disconnect the power supply whenever you proceed to the installation or repair of the control panel. •The panel must be installed while the power is disconnected. •Before installing the panel, remove all unnecessary ropes or chains and disable any equipment such as locks that is not necessary for the automatic operation. -
Page 3: Technical Data
Technical Data Receiver characteristics Parameter Value Frequency 868,35 MHz Codification High security rolling code Memory 15 codes Panel characteristics Parameter Value Power supply 230Vac ±10% Maximum motor power 0.75CV Standby / operating consumption 23mA / 43mA Motor fuses Inputs Start/stop, security contacts, stop, open and close but- tons Outputs Auxiliary contact, 24Vac and autotest outlets... -
Page 4: General Description
GENERAL DESCRIPTION Control panel with built-in receiver and Radioband system for axis centre motors and automatisms for roller doors and shut- ters. For three types of operations: automatic operations, semi-automatic operations and “dead man” operations (with radio buttons). Allows for 15 transmitters to be memorised. It is fitted with one inlet for the start/stop button and one for the two security edges and an output for photocell supply and one for autotesting. -
Page 5: Automatic Operation
1- Automatic operation Using buttons, radio transmitters or radio buttons Turn option 6 (AUTOCLOSE) on the option switch to ON. Connect a NO start/stop button on the terminals marked START. This button carries out two functions: start and stop. Depending on the version, it is possible to use the terminals indicated as OPEN, CLOSE and STOP to make the movement. If option 5 on the option switch is turned to ON, the motor starts when the button is pressed for the first time. -
Page 6: Time Programming
Time programming The door must be completely closed before starting time programming. Press the PANEL PROG button for 1 second to enter programming. The red PRG pilot light will come on and the equipment will emit an acoustic signal. Use the START or TEST button to programme the run. When START/TEST is pressed for the first time, the door will act as follows: Opens slightly, closes to the lower stop, opens to the upper stop and stops moving. -
Page 7: Receiver Operation
Safety edge inhibition The panel includes a function that automatically inhibits the safety edge for the last 4cm of the run. Continuous floor and ceiling level correction The panel includes a continuous floor and ceiling level detection and correction system that operates in operating mode whenever the door has been fully opened or closed from its end positions. -
Page 8: Regulatory Data
Regulatory Data EU Declaration of Conformity JCM Technologies hereby declares that the product EASY-ROLL complies with the relevant fundamental requirements of the RED Directive 2014/53/EU, as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen; and with the 2011/65/EU RoHS Directive.
