1248060 / 1.5
Control panel with built-in receiver for axis centre motors and operators for roller doors and shutters. It enables the memorizing of 27
transmitters (expandable to 500).
TECHNICAL DATA
Receiver data
Frequency
Adjustable activation distance
Coding
Memory
Number of channels
Control panel data
Power supply
Maximum motor power
Standby/Op. consumption
Motor fuse
Op. temperature
Watertightness
Box dimensions

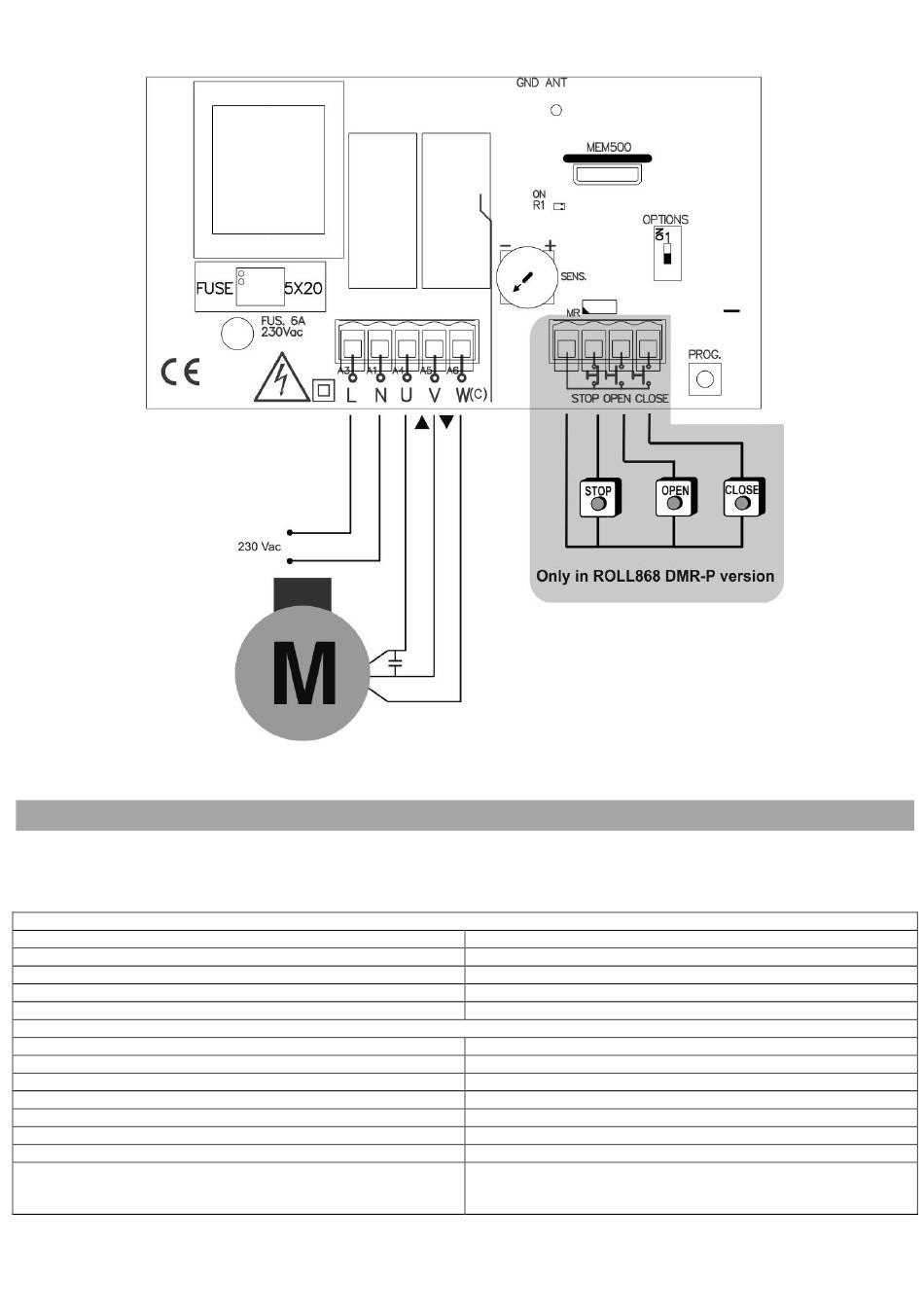

STOP, OPEN and CLOSE inputs (only ROLL868 DMR-P version)
INSTALLATION
ROLL868 DMR / ROLL868 DMR-P
868,35MHz
0 – 20 m
High safety changing code
27 codes (expandable to 500 codes)
2 (open and close)
230V AC ± 10%
750W (@100.000 manoeuvres) – 1200W
<1mA / max. 5 mA.
6A
-20ºC to +85ºC
IP54 (with IP65 packing seal)
140x220x55mm
OPEN and CLOSE: Perform the same function as the transmitter
channels.
STOP: Stop the manoeuver. If not used, make a bridge on the terminals.
GB
1
Advertisement
Related Manuals for JCM Technologies ROLL868 DMR
Summary of Contents for JCM Technologies ROLL868 DMR
-
Page 1: Technical Data
IP54 (with IP65 packing seal) Box dimensions 140x220x55mm OPEN and CLOSE: Perform the same function as the transmitter STOP, OPEN and CLOSE inputs (only ROLL868 DMR-P version) channels. STOP: Stop the manoeuver. If not used, make a bridge on the terminals. INSTALLATION... - Page 2 1248060 / 1.5 ROLL868 DMR / ROLL868 DMR-P Fit the rear of the box to the wall using the raw plugs and screws supplied. Pass the cables through the bottom of the equipment. Proceed with the starting up of the equipment.
- Page 3 1248060 / 1.5 ROLL868 DMR / ROLL868 DMR-P 5. Verify the installation. Perform a complete operation from both sides of the door ensuring that activation of the control panel is correct on the desired coverage area, and ensuring that you can not activate the door without seeing it.
- Page 4 JCM TECHNOLOGIES, S.A., declares that this ROLL868 DMR, ROLL868 DMR-P is in compliance the essential requirements of the Machinery Directive 2006/42/EC and the EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC and same as the requirements of the R &...
