Summary of Contents for JCM Technologies INTEGRA

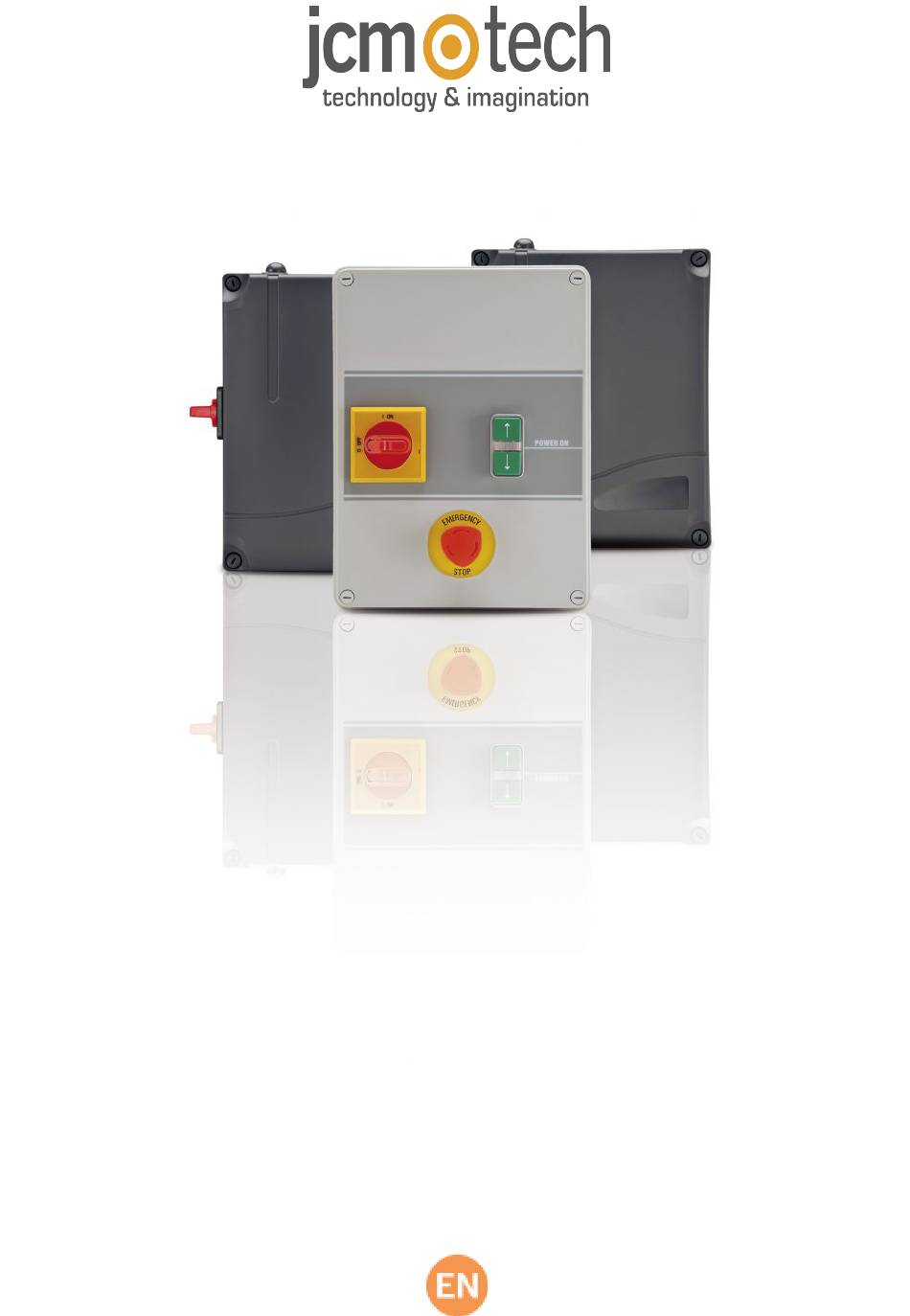

- Page 1 User Manual INTEGRA...
-
Page 2: Table Of Contents
Table of contents Maintenance Important safety instructions for installation Important safety instructions for use Equipmetn use Description Technical characteristics Installation Fitting the casing Important considerations for start-up Operating *Anti-intrusion function Option switch Input switch Buttons Times Light indicators Input light indicators Parameter configuration from programmer Programming Programming with ends of run and automatic close... -
Page 3: Maintenance
Maintenance Important safety instructions for installation Disconnect the power supply whenever you proceed to the installation or repair of the control panel. •Before installing the panel, remove all unnecessary ropes or chains and disable any equipment such as locks that is not neces- sary for the automatic operation. -
Page 4: Description
Control panel for the control of three-phase motors to 3CV at 400V and single-phase motors to 1.5CV at 230V for industrial doors. Allows for dead-man open and close operations, automatic dead-man close operations, semi-automatic operations and automatic operations. Connection to portable programmer. Technical characteristics INTEGRA-ECO INTEGRA (standard box model) (Industrial box model) -
Page 5: Installation
Test for security parts Common securities R(N) Power supply connection 230V/400V or neutral Common for security part test Security Close contact (NC) S Power supply connection and 24Vac outlet 400V 24Vac outlet Security Open contact (NC) T(L) Power supply connection 230V/400V Common ends of run and stop Security Close edge (resistive... -
Page 6: Operating
Operating Contact normally open to open. If pressed during the closing operation it stops and Open opens (until the end of the limit switch). Acts as “Dead-Man” if kept pressed down with (OPEN) Option 3 of the options switch triggered. Close Contact normally open to close. -
Page 7: Anti-Intrusion Function
An operation counter and operation limit number is fitted. On reaching the limit number Operation of operations, the panel switches to dead man operations and the POWER light flashes counter (only INTEGRA model) Option switch Option Lower position – OFF (default option) Upper position –... -
Page 8: Input Switch
Security close contact 2 flashes autotest STOP/SAFETY Security close contact 3 flashes autotest 4 flashes Security edge error RADIOBAND/RCS card 5 flashes autotest error 6 flashes Sensor Hall error LAMP ( in INTEGRA Blinks indicating security activated model) jcmtechnologies... -
Page 9: Input Light Indicators
Input light indicators Function Indicates Default status OPEN Open function Normally off CLOSE Close function Normally off START Open/close function Normally off TEMP Temperature sensor Normally on STOP Stop button Normally on FC.OP End of run Open Normally on FC.CL End of run Close Normally on SEC.OP Security Open contact... -
Page 10: Optional Cards
Optional cards Receiver card This acts on the panel with transmitters, proximity keys or smart cards in the same way as the start button. If working with a receiver card for dead-man (only available in 868MHz) and options 2 and 3 of the options switch are ON, chan- nel 1 opens and channel 2 closes. -
Page 11: Traffic Control (With Switch* To On)
Traffic control (with switch* to ON) When this option is activated, the traffic light interprets the Alternative contact as an outdoor open button and the Open con- tact as the indoor open button. While the door remains closed, no signals are given. When the open order is received, the indoor and outdoor red light contact gives a warning flash for 3 seconds before carrying out the operation. -
Page 12: Regulatory Data
Regulatory Data EU Declaration of conformity The manufacturer JCM TECHNOLOGIES, S.A. declares that the product INTEGRA cumple con los requisitos esenciales de la Directiva RED 2014/53/UE y de la Directiva RoHS 2011/65/UE. See website www.jcm-tech.com/declarations/ JCM TECHNOLOGIES, SA C/COSTA D'EN PARATGE, 6B...
