jcmtechnologies
user manual

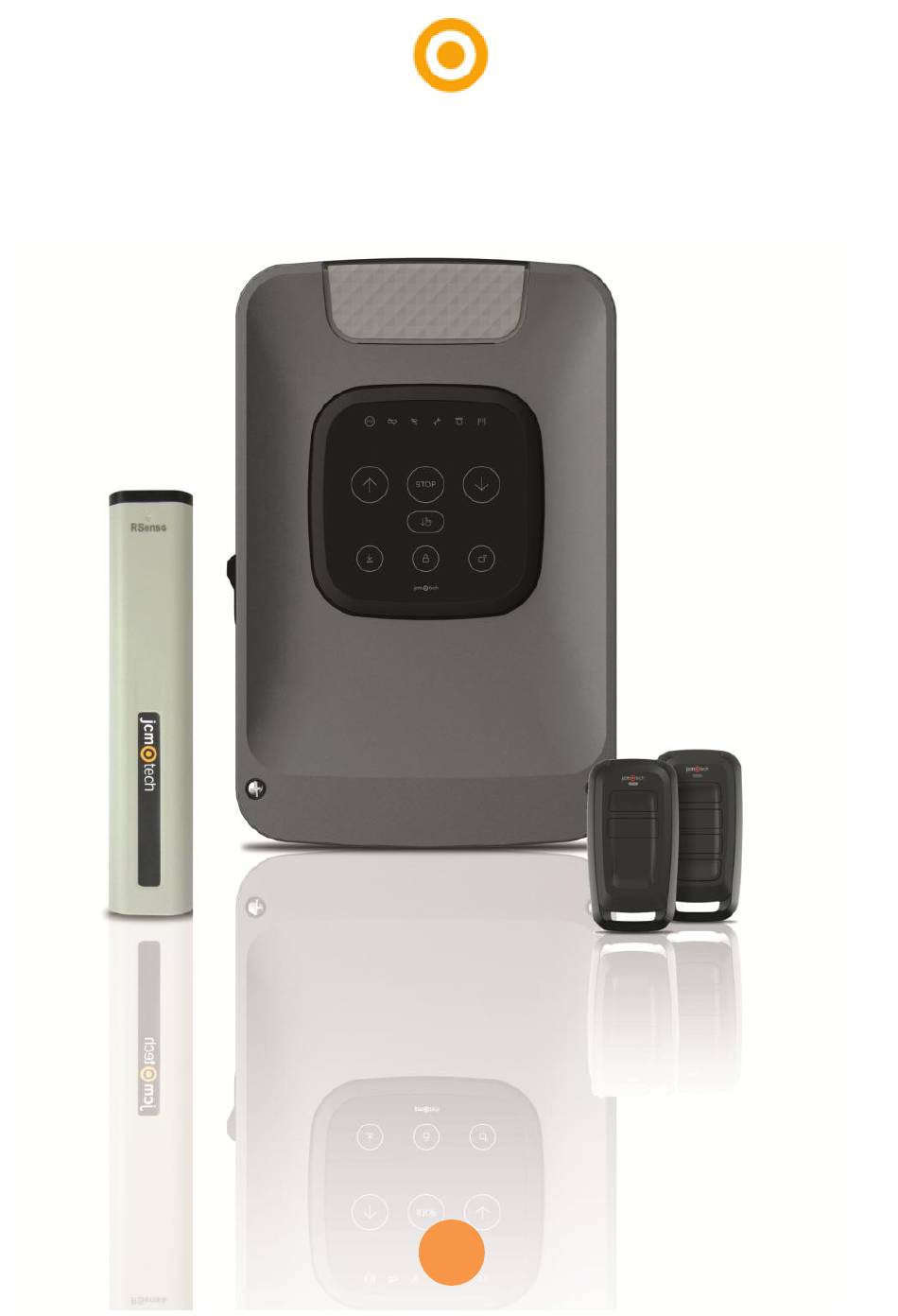

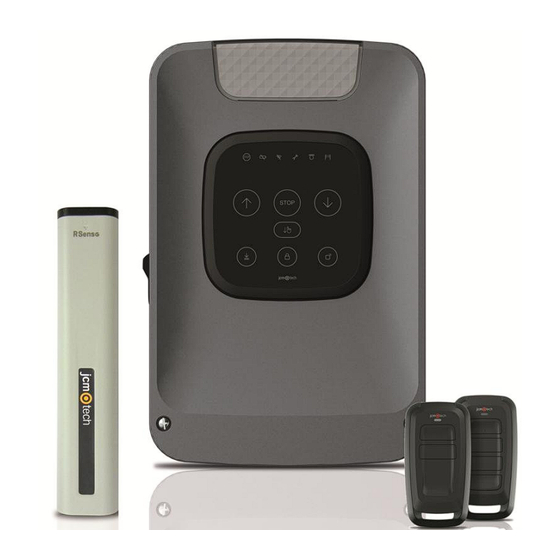

KEEROLL KIT
KEEROLL + RSENS3 TGL868 + 2 MUV
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEEROLL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JCM Technologies KEEROLL

Summary of Contents for JCM Technologies KEEROLL

  • Page 1 KEEROLL KIT KEEROLL + RSENS3 TGL868 + 2 MUV...

  • Page 2: Table Of Contents

    KEEROLL Introduction General description RadioSens3 System description Installation Control panel fixations Connections Configuration / Starting up Options selection Programming Transmitter programming Safety elements programming Manoeuvre programming Verification Verify that the control panel is working properly Communication’s quality Impact detection adjustment...

  • Page 3: Introduction

    Introduction General description Designed for residential aluminium roller shutters, the KEEROLL solution, together with the RadioSens3 system, has direct communication with the user and the installer. Its capacitive front with illuminated keys provides comfort and security. The door can be opened and closed by any person without the need for technical know-how.
  • Page 4 Actions Press to open, stop and close the door. Press to close the door in dead man mode. Block function: KEEROLL control panel incorporates a block button on the cover to prevent the door from being opened accidentally. Press to block the door, key lights ON.

  • Page 5: Radiosens3 System Description

    RadioSens3 is an impact detection system installed at the last slat of the roller shutter. It detects the obstacle and reopens without causing any damage. The communication system between the RS3 T868 and the KEEROLL is permanently monitored (two- way link via radio)

  • Page 6: Installation

    KEEROLL Installation Control panel fixations Remove the front cover of the control panel. Install the bottom part on the wall in a vertical position, at least 1,5 meters over the ground and in accordance with the assembly instructions below. jcmtechnologies...
  • Page 7 KEEROLL RadioSens3 fixations Install the transmitter in horizontal position, at the middle of the last slat. Avoid placing metallic surfaces between the receiver and the transmitter. The last slat must have a tolerance of minimum 1mm of movement. Control panel detects automatically the limit switches in the tubular motor. An adjustment of the limit switches before RadioSens3 installation is requested.

  • Page 8: Connections

    KEEROLL To prevent electric shocks, the equipment must be disconnected from the power supply and all the electrical Connections connections. jcmtechnologies...
  • Page 9 KEEROLL...

  • Page 10: Configuration / Starting Up

    KEEROLL Configuration / Starting up Connect the power supply Adjusting limit switch Door MUST BE AT HALFWAY position before starting the limit switch adjusting Dipswitch 1 at ON. Door will move in dead man mode. Keep pressed to move up and down the door.

  • Page 11: Programming

    KEEROLL Programming Transmitter programming Press , button lights ON, a beep will be heard. Button Function Start Open-stop / Close-open Courtesy Courtesy light light Press each transmitter button to be programmed, a beep will be heard each time a transmitter is programmed.

  • Page 12: Manoeuvre Programming

    KEEROLL Door MUST BE TOTALLY CLOSED before Manoeuvre programming starting the manoeuvre programming. Enter Installer mode Press , the maintenance indicator lights ON, a beep will be heard. With the door totally closed, press and the control panel will initiate and auto-programming sequence: the door opens slightly;...

  • Page 13: Verification

    KEEROLL Verification Verify that the control panel is working properly Once the control panel is correctly wired and programmed, check that all the system is working properly. Transmitter Press the transmitter button and check that the door opens. Press again, and check that the door stops/closes.

  • Page 14: Maintenance

    KEEROLL Maintenance Enter Installer mode Press , the maintenance indicator lights ON, a beep will be heard. The following functions can be done inside this maintenance mode. Program maintenance manoeuvres Maintenance warning: By entering Installer mode you can set the number of manoeuvres for the maintenance warning.

  • Page 15: Fuse Replacement

    KEEROLL Reset safety elements Press and keep pressed Keep pressed and press to erase safety elements, some beeps until keys starts will be heard followed by a long beep. flashing, a beep will be heard. In case of erasing safety elements, the manoeuvre has to be reprogrammed again.

  • Page 16: Troubleshooting

    KEEROLL Troubleshooting Troubleshooting INDICATOR SOLUTION Emergency stop input activated Low battery detection Verify the batteries of the transmitter Radio communication error Verify the radio signal. Check the batteries, reprogram again or change equipments location. ON: Installer mode Flashing: Maintenance warning...

  • Page 17: Technical Data

    KEEROLL Technical Data Electrical parameters Parameter Value Power supply range 230 Vac +/-10% Stand-by / operating consumption <60 mA / 200mA Maximum power supported 1,2kW Motor fuses Operating temperature -20ºC to 55 ºC Watertighness IP42 Size (L/W/H) 180,0 x 277,4 x 57,5 mm...

  • Page 18: Notes

    KEEROLL Notes __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ jcmtechnologies...
  • Page 19 KEEROLL __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________...

  • Page 20: Regulatory Data

    EC Declaration of Conformity JCM TECHNOLOGIES, S.A. declares herewith that the product KEEROLL complies with the requirements of the 2006/42/CE Machinery Directive, as well as with the ones of the 2004/108/CE Electromagnetic Compatibility Directive and 2006/95/CE Low Voltage Directive, insofar as the product is used correctly.
