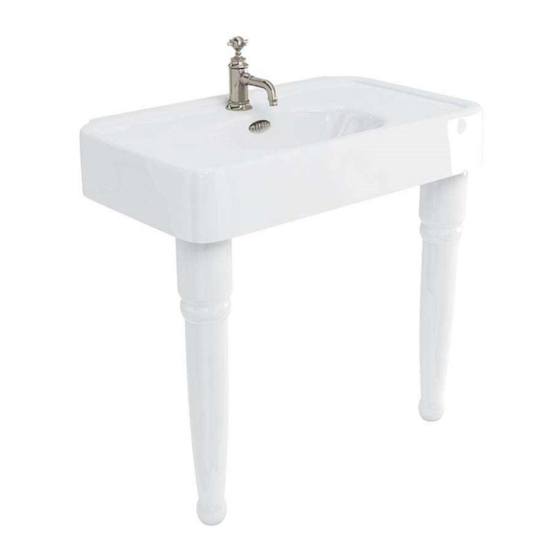

Arcade Pedestal Basin
and Console Sets
US-ARC600 / US-ARC900 / USARC1200
US-ARC1 / US-ARC2 / US-ARC22 / US-ARC23 / US-ARC24
Installation Instructions
Introduction
All parts have been fully inspected throughout the production process
and only leave our factory after a 15-step QC process.
Carefully remove the items from the box and check that all parts have
been supplied. Before beginning installation, please check for any
damage that may have occurred during transport. Note: Damage
claims cannot be made during or after installation.
Installation should be completed by at least two suitably competent
installers.
Improper installation shall result in loss of warranty in case of damage.
Wall fixings are not supplied. Source fixings which are suitable to the
site wall.
IMPORTANT: Please read these instructions carefully before you
begin and retain for future reference.
We do not accept responsibility for any problems that may occur
through incorrect installation.
Installation notes
The installation must comply with all plumbing codes including local
codes and be installed by a licensed plumbing contractor.
Store the products in a safe place until you begin installation to avoid
any damage.
Assemble the parts on a mat to protect against scratching the surface.
Avoid getting cement, grit, sand or masonry products on to the
surface.
Protect and cover the products during the installation period to
prevent damage from occurring.
Turn off the main water supply before connecting to any existing
pipework or doing any maintenance.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in a wall or floor.
Tools required
Tape
Safety
measure
glasses
1
/
" +
5
/
"
Hammer
4
16
drill
Model options
US-ARC2 legs
with
US-ARC600/ARC900 basin
US-ARC22 and US-ARC23
metal console
with
US-ARC600/900 basin
Flat head
screwdriver
US-ARC2 legs
with
US-ARC1200 basin
US-ARC24 metal console
with
US-ARC1200 basin
US-ARC1 pedestal
with
US-ARC600/900 basin
Pencil
Spirit
level
Advertisement
Table of Contents
Related Manuals for Crosswater Arcade US-ARC600
Summary of Contents for Crosswater Arcade US-ARC600
-
Page 1: Tools Required
Arcade Pedestal Basin and Console Sets US-ARC600 / US-ARC900 / USARC1200 US-ARC1 / US-ARC2 / US-ARC22 / US-ARC23 / US-ARC24 Installation Instructions Introduction Model options All parts have been fully inspected throughout the production process and only leave our factory after a 15-step QC process. Carefully remove the items from the box and check that all parts have been supplied. - Page 2 Installation - ceramic console legs The installation process is the same no matter which basin is being installed. US-ARC900 basin is shown for illustration purposes only. Parts supplied - ceramic console legs Legs Floor nipples Floor nipple washers Note: 2 people are required when fitting a basin onto console legs.
-
Page 3: Parts Supplied
Installation - Metal console with glass shelf The installation process is the same no matter which basin is being installed. US-ARC900 basin is shown for illustration purposes only. Parts supplied Floor nipples Floor nipple washers ARC24 Middle leg ” Hexagonal key... - Page 4 Temporarily place the stand in the desired position. Once in ” ” ” Support the glass to avoid damage while marking the fixing holes. Apply padding if necessary Tighten the other screws in the stand if necessary Install the basin supports Adjust the supports to Adjust the height of make the basin level...
-
Page 5: Installation
We DO NOT recommend using any household cleaners as many can cause damage to the finish. Warranty - This Crosswater London product is covered by a limited lifetime warranty. For full details, terms and conditions please visit our website. www.crosswaterlondon.com For further information contact: Crosswater London, 393 Fortune Blvd., Milford, MA 01757...
