Periodic maintenance and adjustment

Replacing the fuses

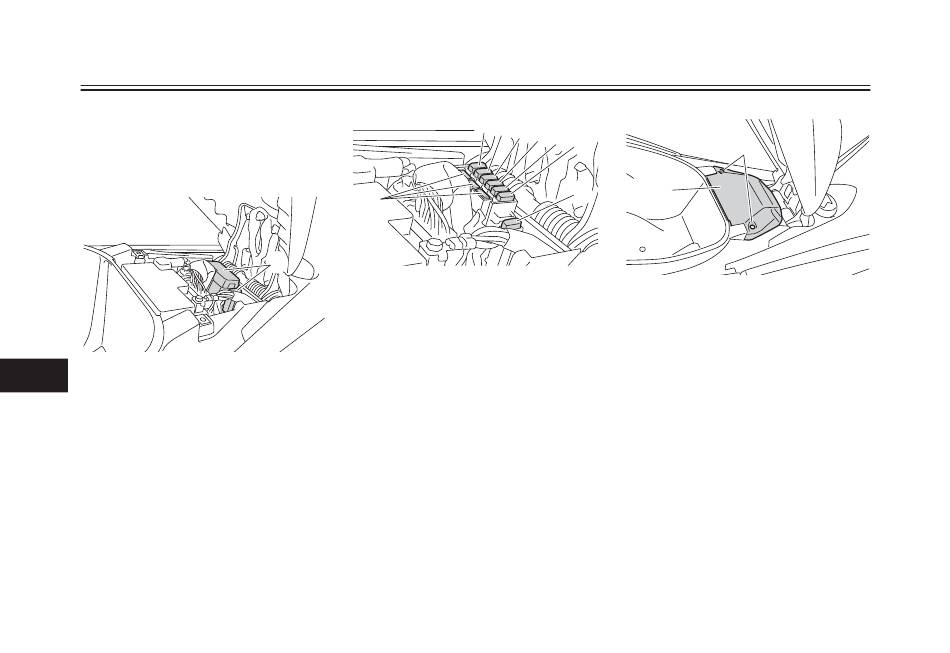

The fuse boxes, which contain the fus-
es for the individual circuits, are locat-
ed under the seat. (See page 4-14.)
7
1. Fuse box
8
1
1. Main fuse 1
2. ABS solenoid fuse
3. Main fuse 2
4. Taillight fuse
5. Signaling system fuse
6. ABS control unit fuse
7. ABS motor fuse
8. Spare fuse
If a fuse is blown, replace it as follows.
1. Turn the key to "OFF" and turn off
2.
the electrical circuit in question.
Open the seat. (See page 4-14.)
3. Remove the battery cover by re-
moving the screws.
1 2 3
4 5 6
7
1. Battery cover
2. Screw
4. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not use
a fuse of a higher amperage rat-
ing than recommended to avoid
causing extensive damage to the
electrical system and possibly a
fire.
7-28
